Spotix Linear HPC Match Lit Fire Pit Linear Trough Torpedo Burner Kits

Spotix
Starting at $369.73 $481.00

Spotix Linear HPC Match Lit Fire Pit Linear Trough Torpedo Burner Kits
SKU: TOR-FPS-TRGH-KIT-Config
Color:Antique Brass
Fuel Type:Propane
Free Shipping!
Today or Next Business Day

Price:
Starting at $369.73 $481.00
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features

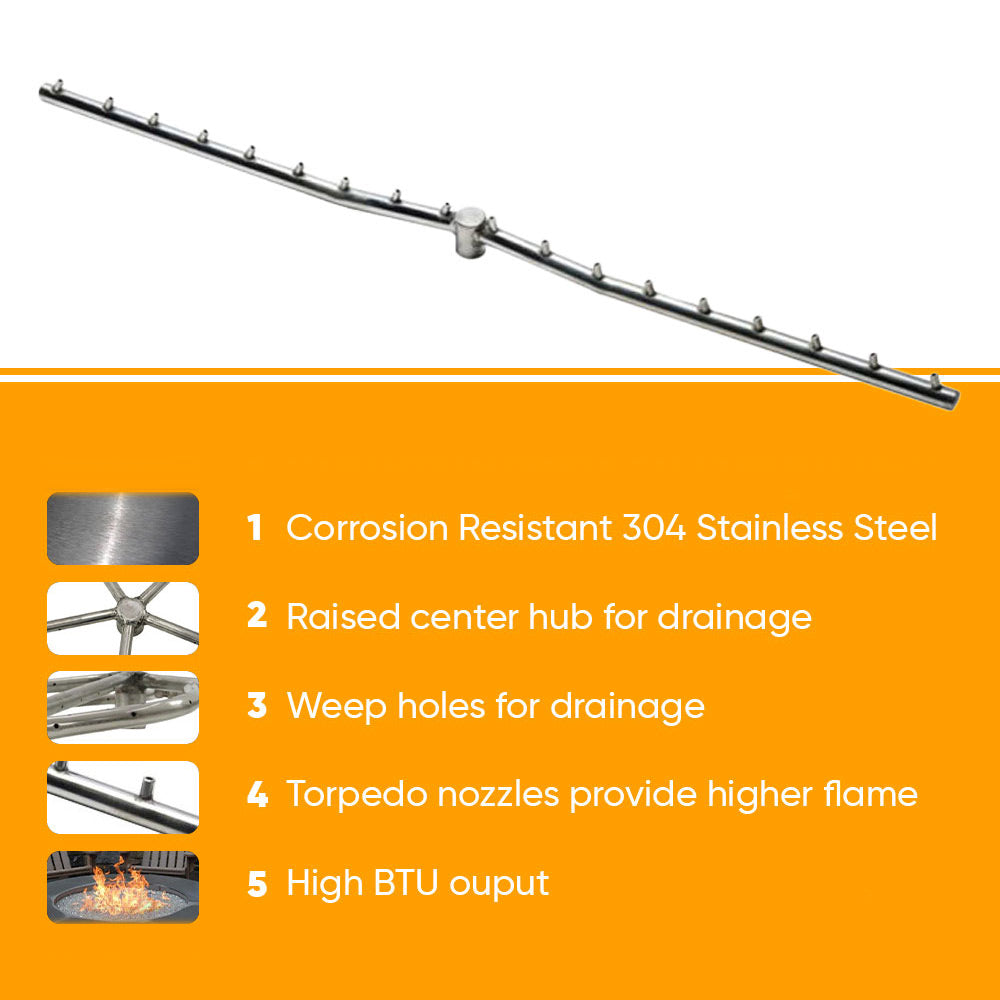

  • Stainless Steel Construction - Heavy duty 304 stainless steel guards against rusting and ensures a long-lasting product
  • Staggered Burner Ports - Drilled, not punched, burner ports are staggered on the tubing for a more realistic & full looking flame
  • Standard Capacity - Burner rings are available in standard 1/2" capacity with female inlet
  • Natural Gas or Propane - Burner kit is NG ready, with LP conversion kit available; gas inlet is raised to prevent water entering gas line

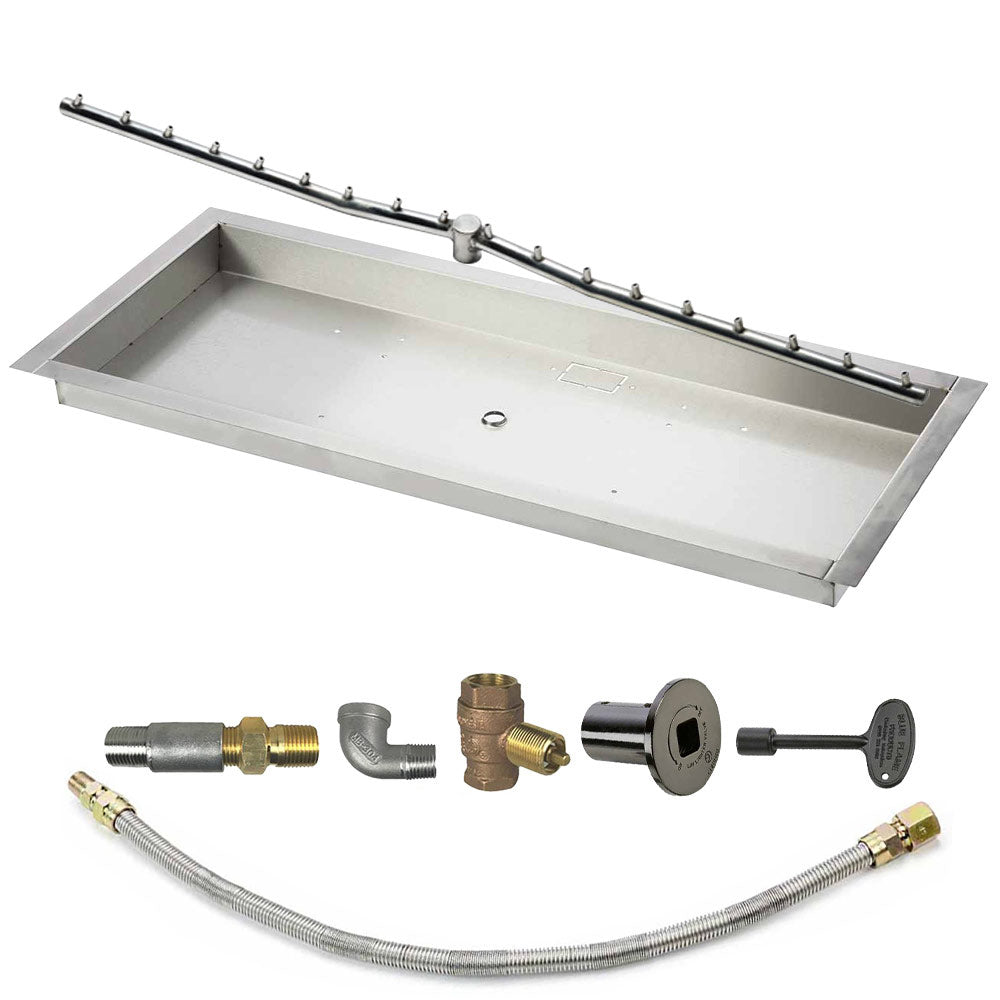

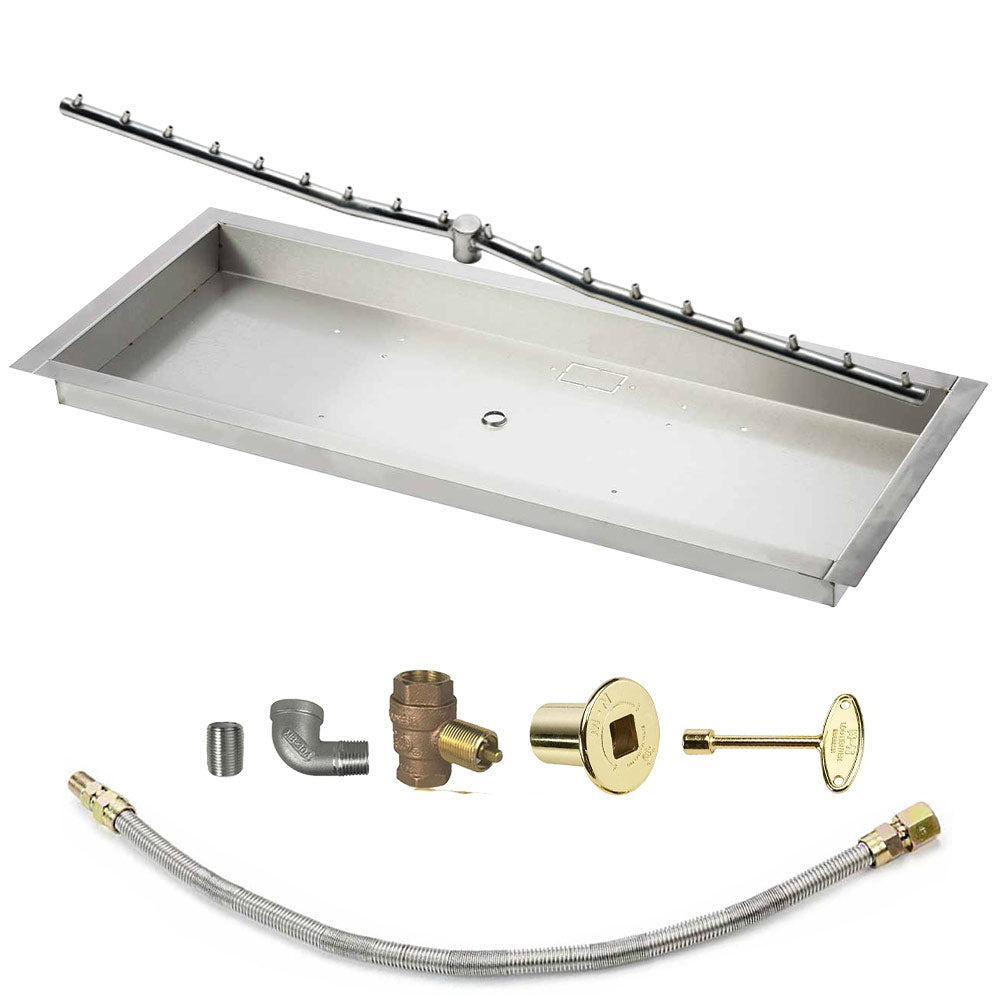

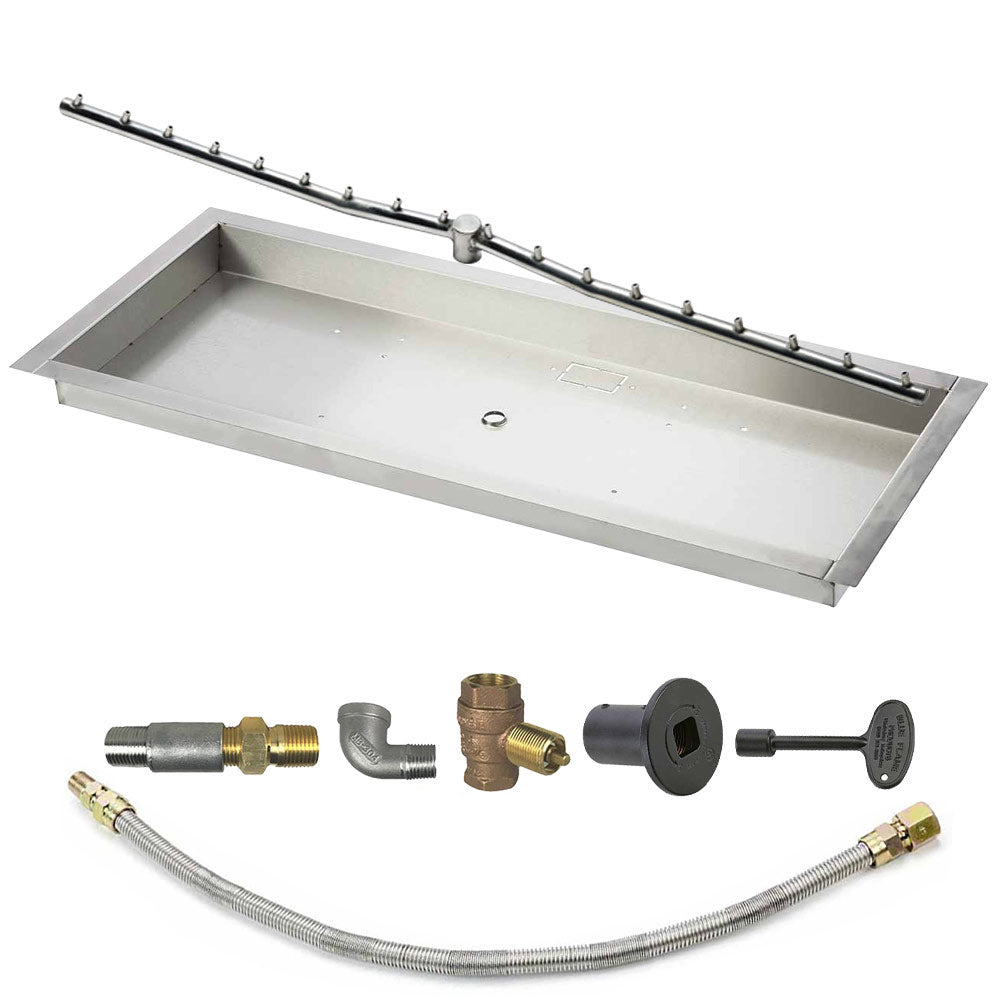

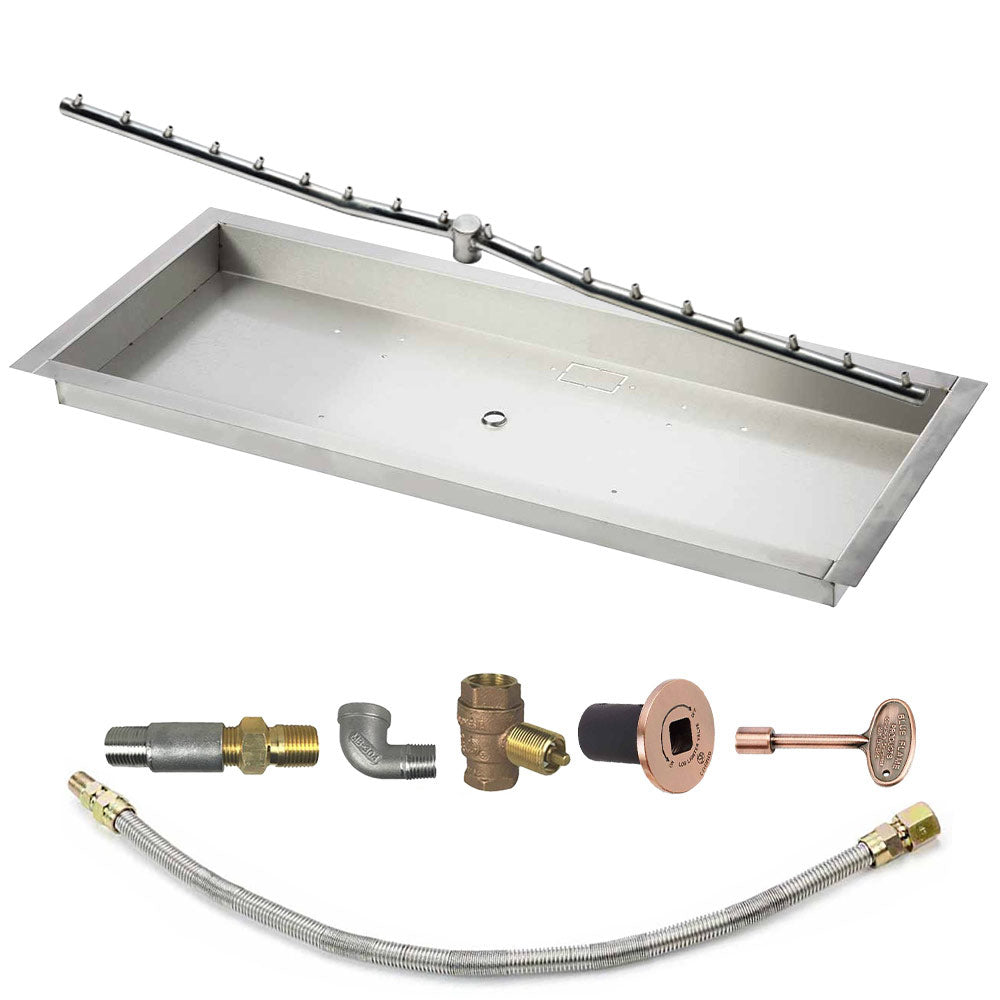

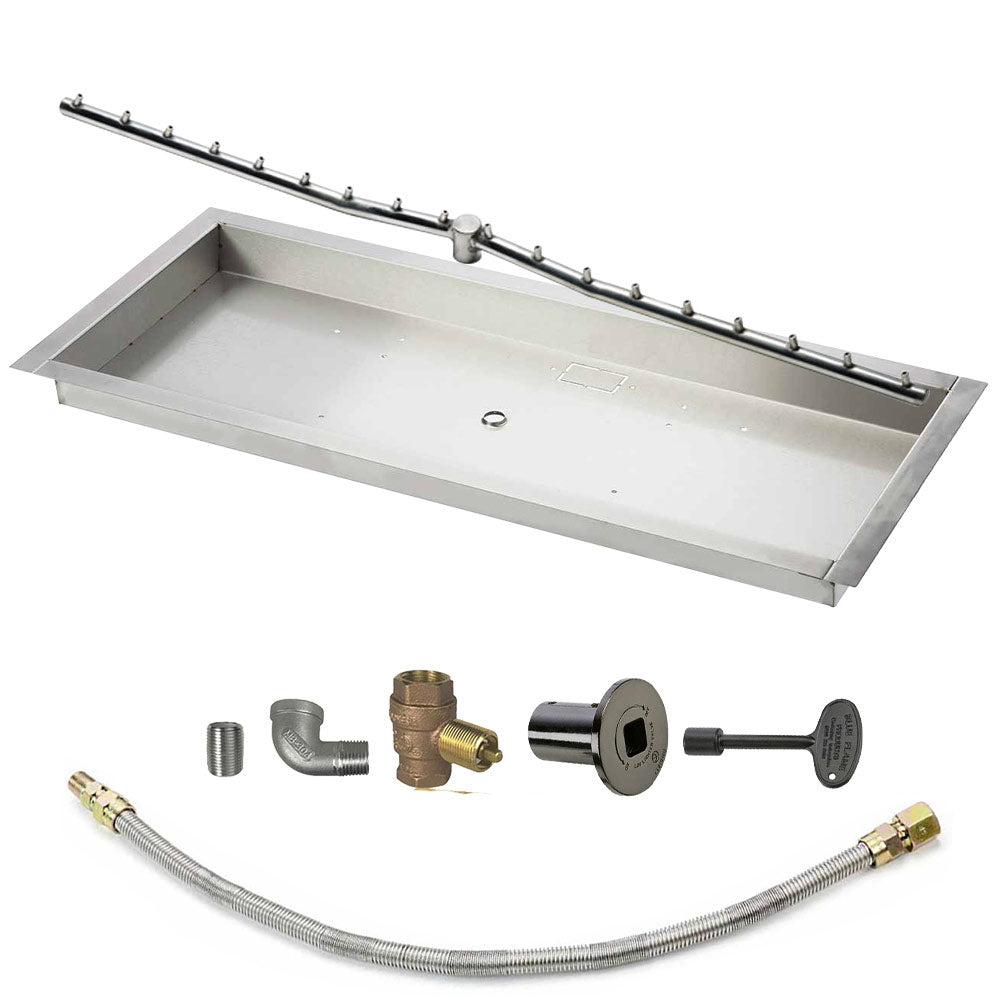

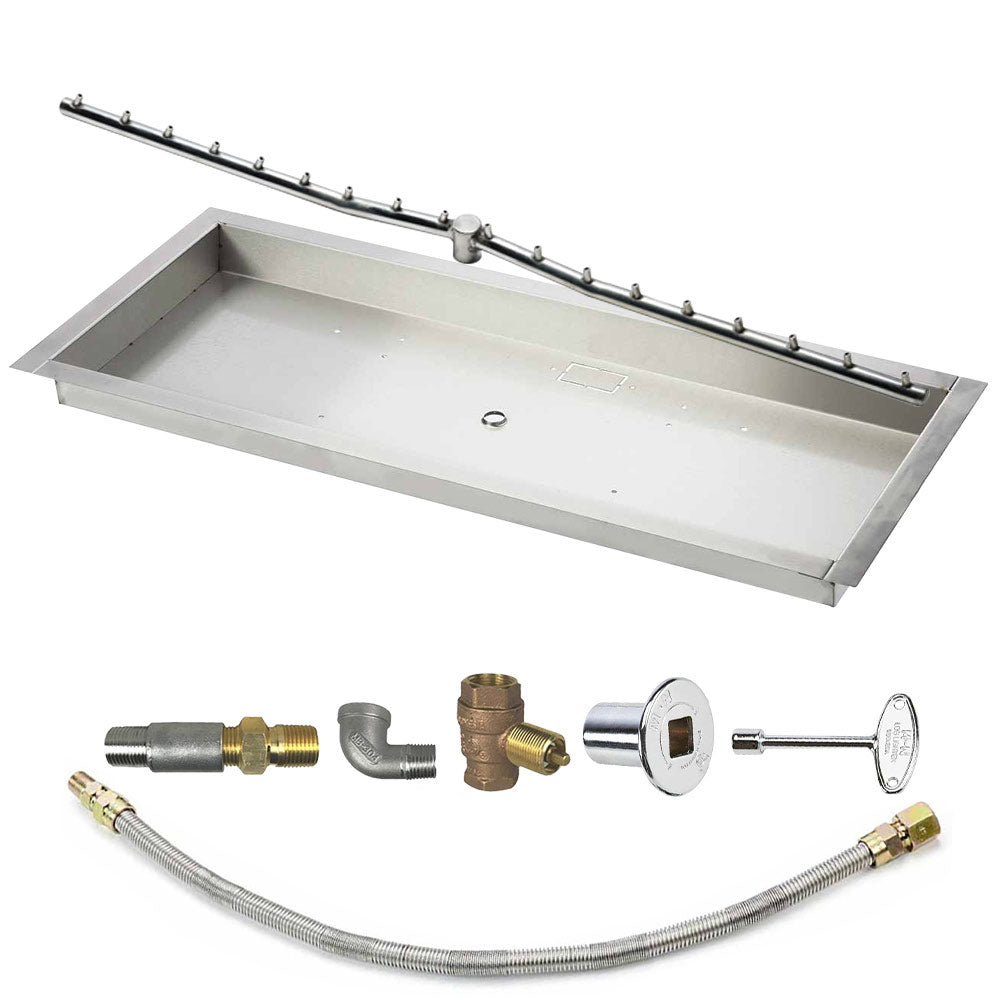

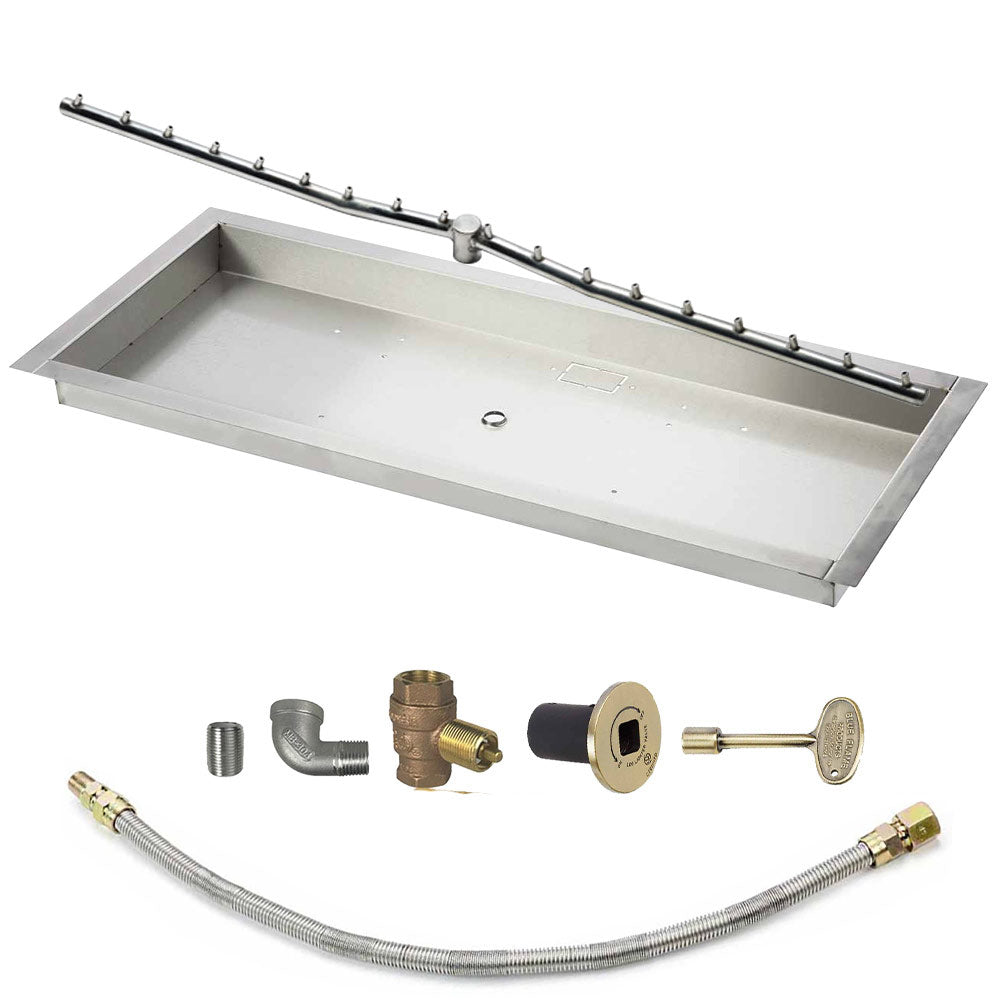

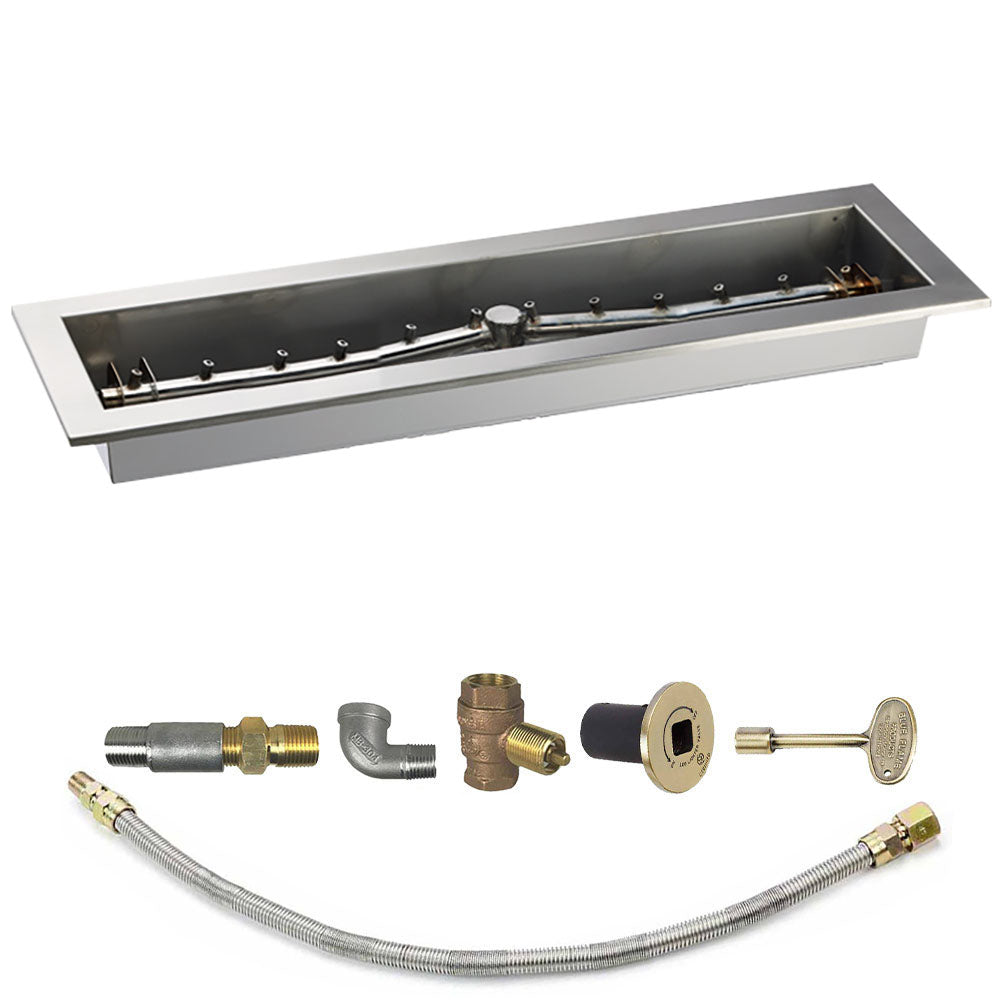

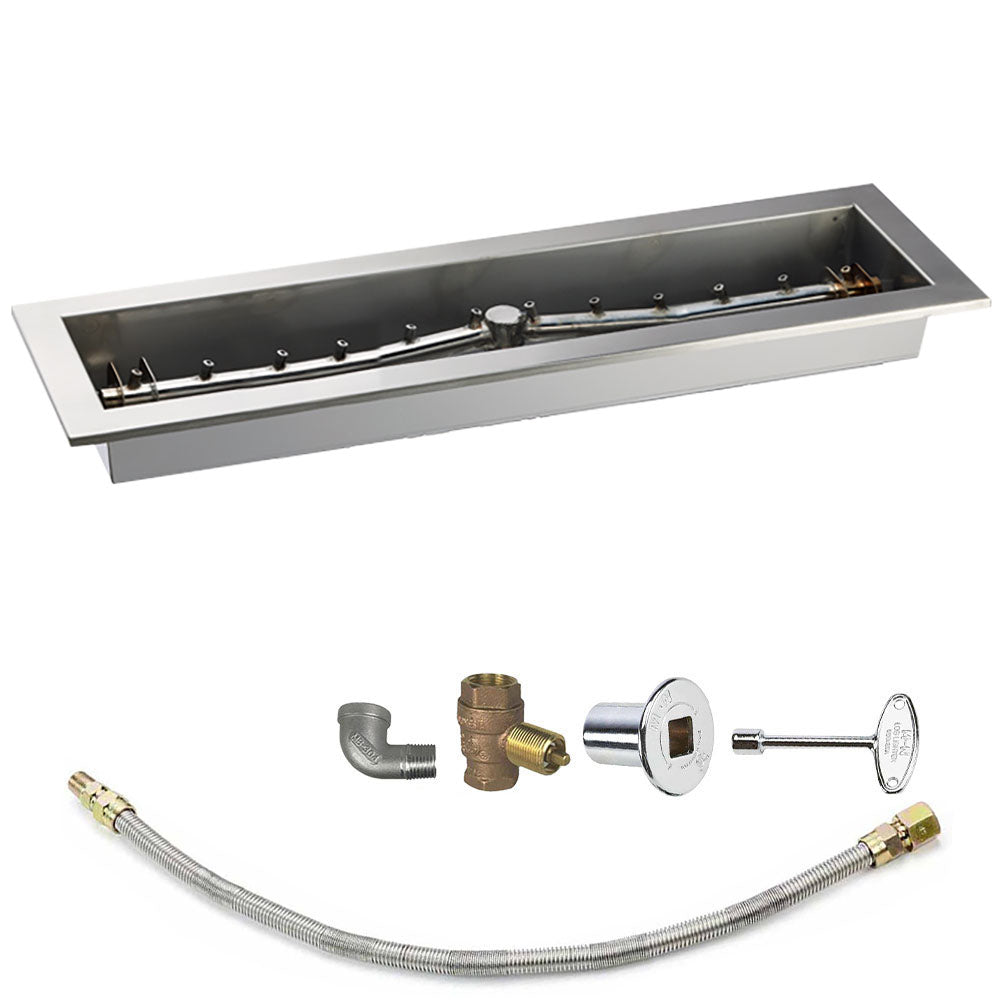

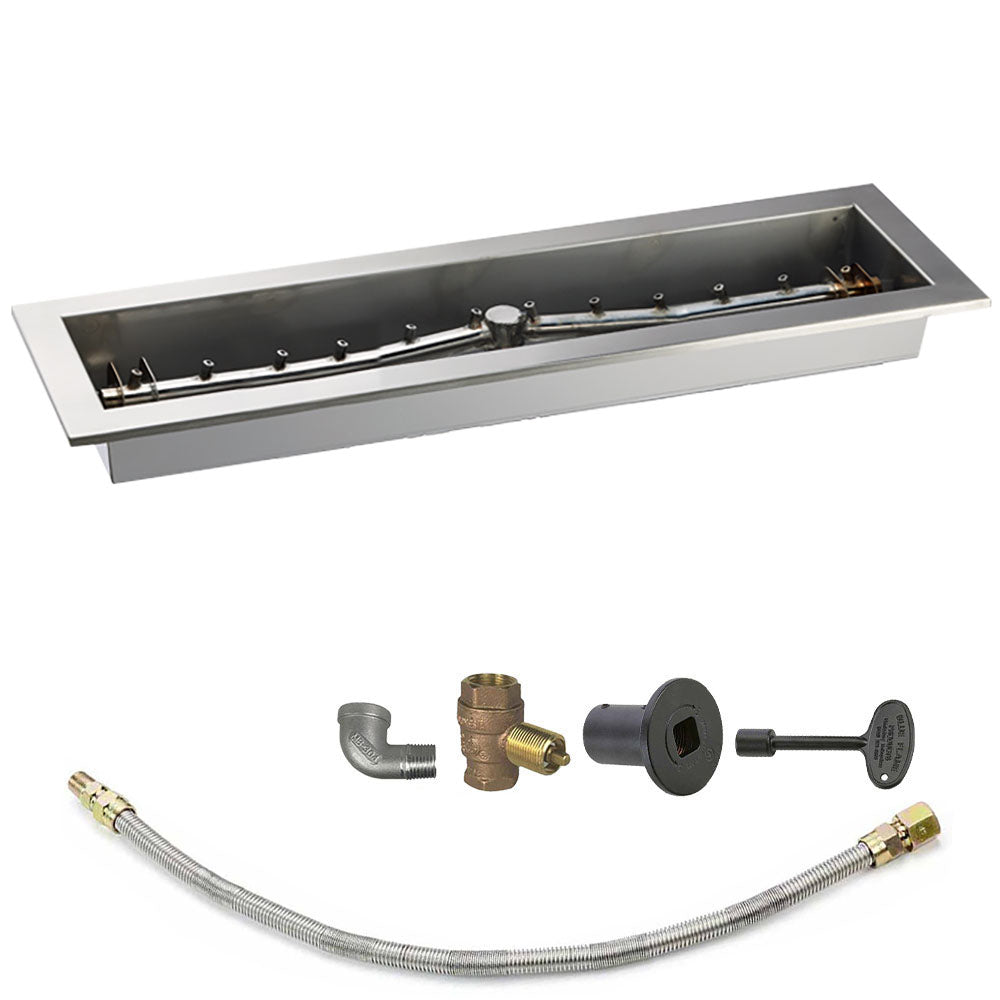

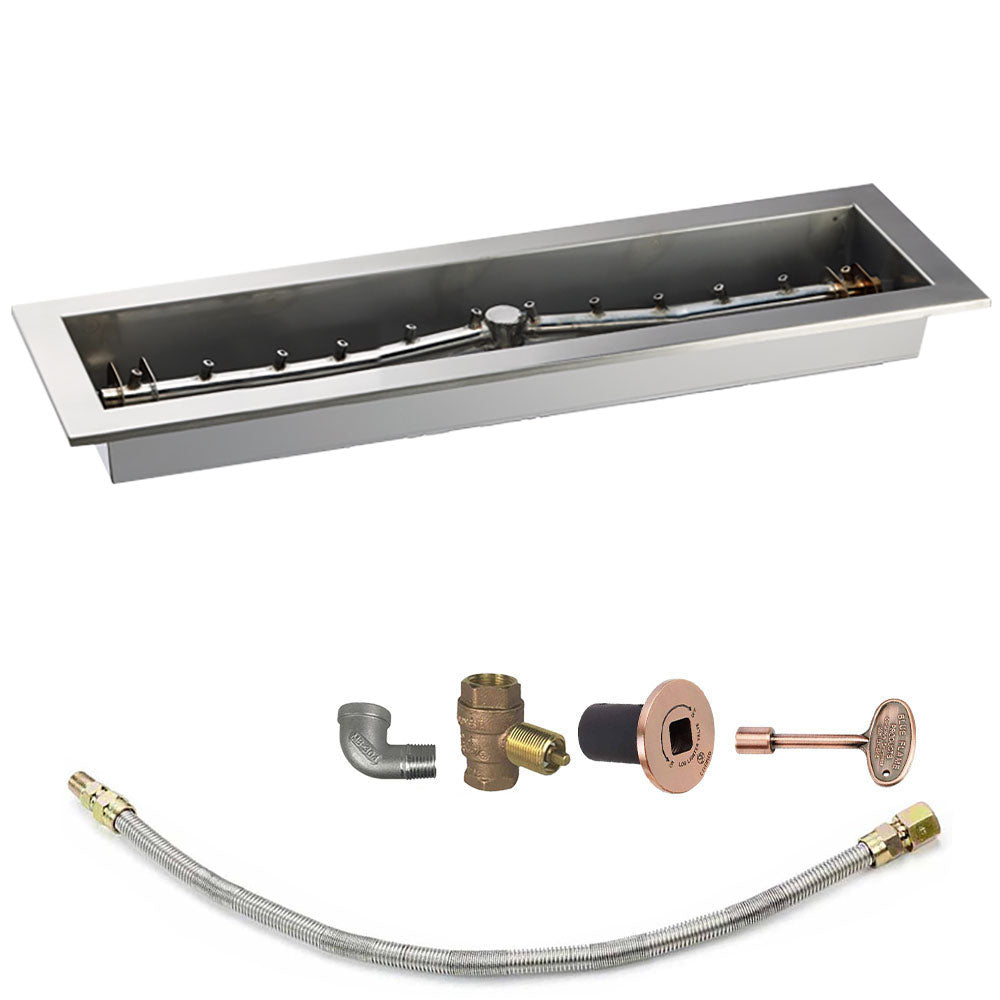

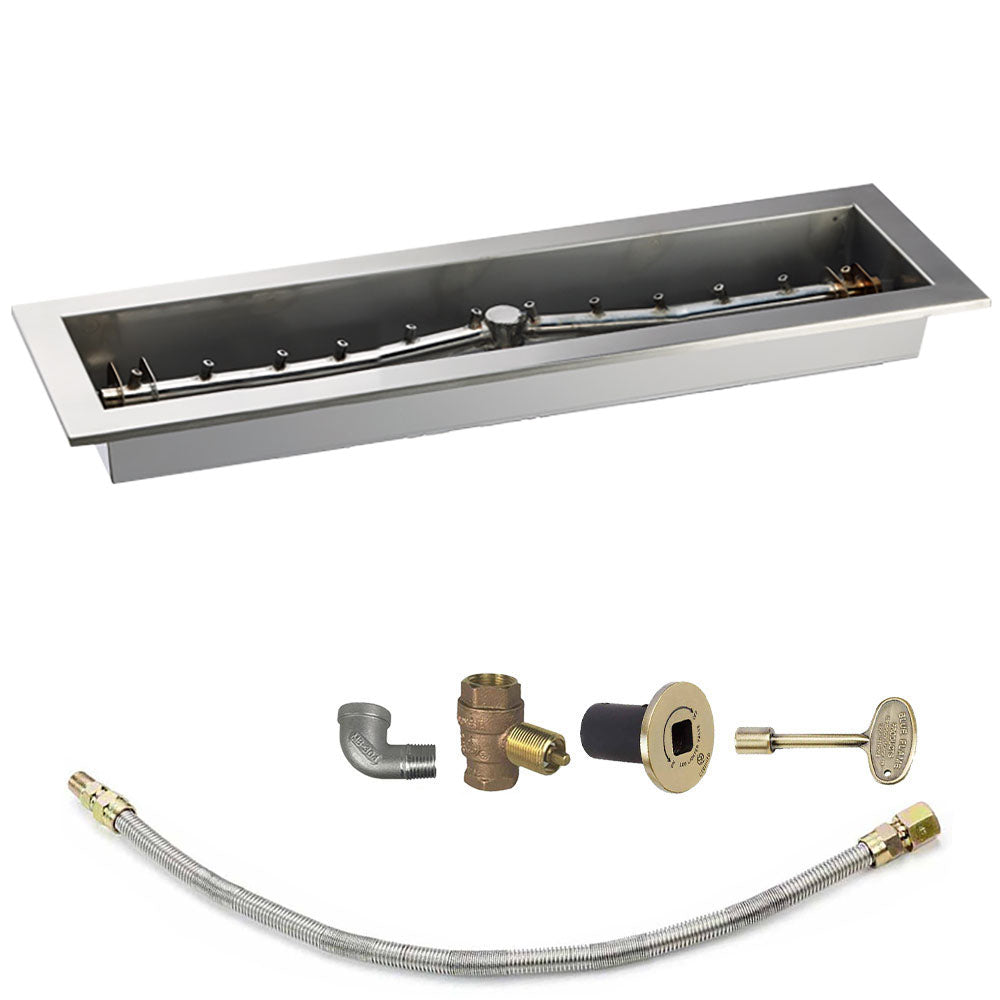

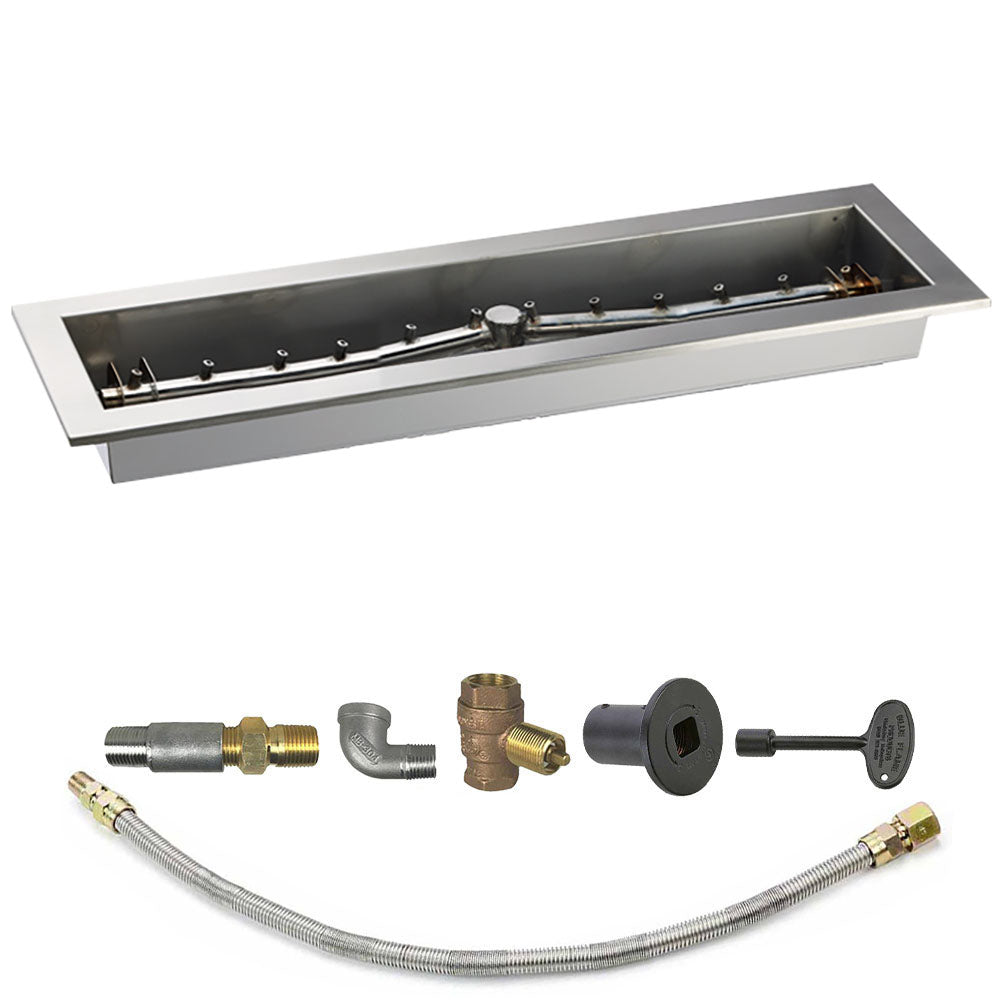

  • Includes - Linear trough burner, stainless steel whistle-free gas flex line, fittings, ball valve, and decorative flange with 3" key
    • Product Description

    The Spotix Linear HPC Match Lit Fire Pit Linear Trough Torpedo Burner Kits provides high quality fire pit components necessary to complete your gas fire pit project. The burner is manufactured by HPC and constructed from high quality 304 stainless steel; each burner features staggered burner ports, a 1/2" female gas inlet that's raised from the rest of the burner, and is neatly machine welded to produce a seamless and durable product. The innovative Torpedo burner nozzles provide a higher flame akin to a natural wood fire.

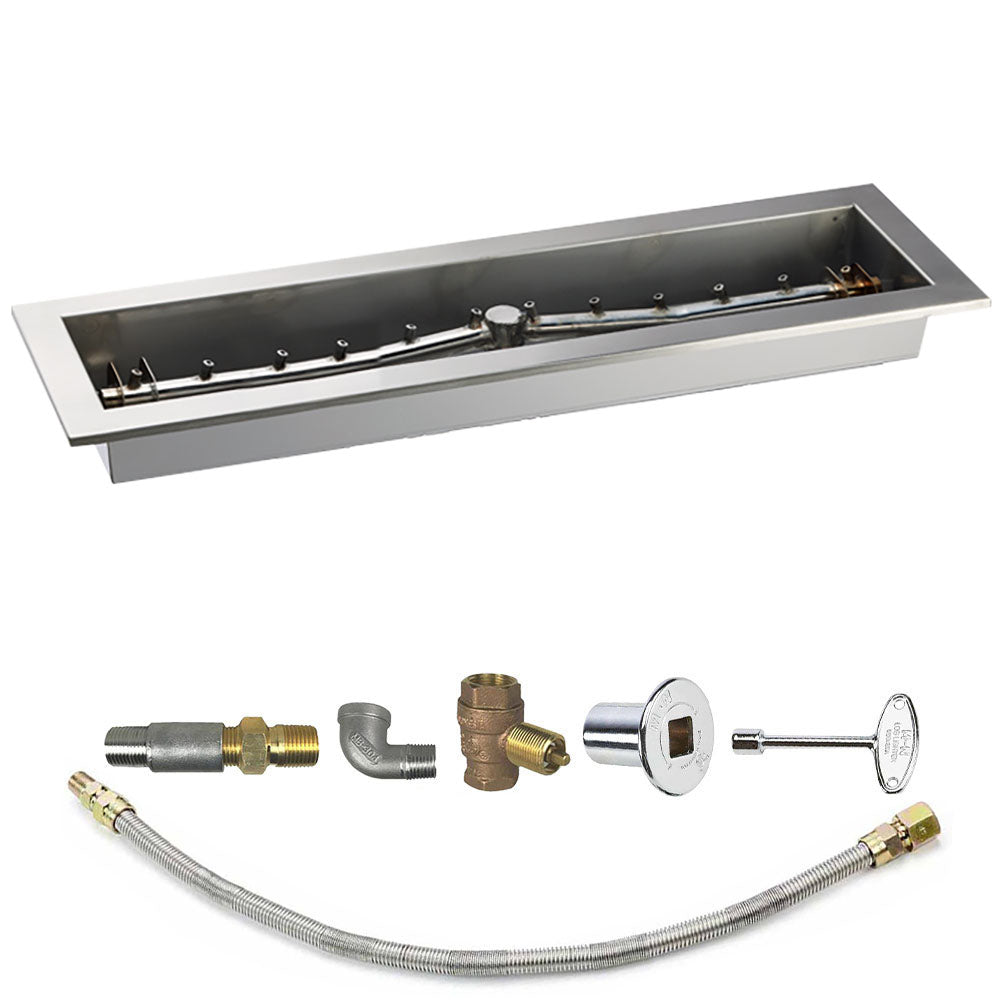

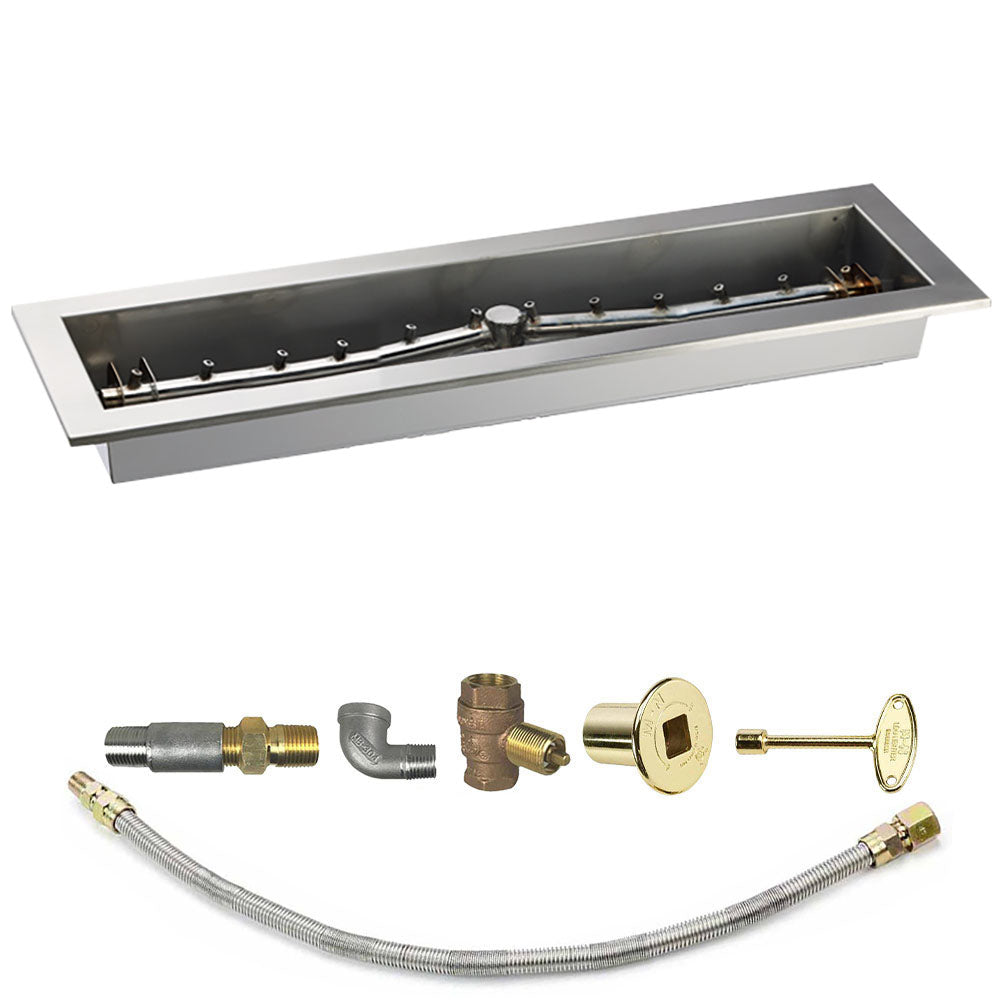

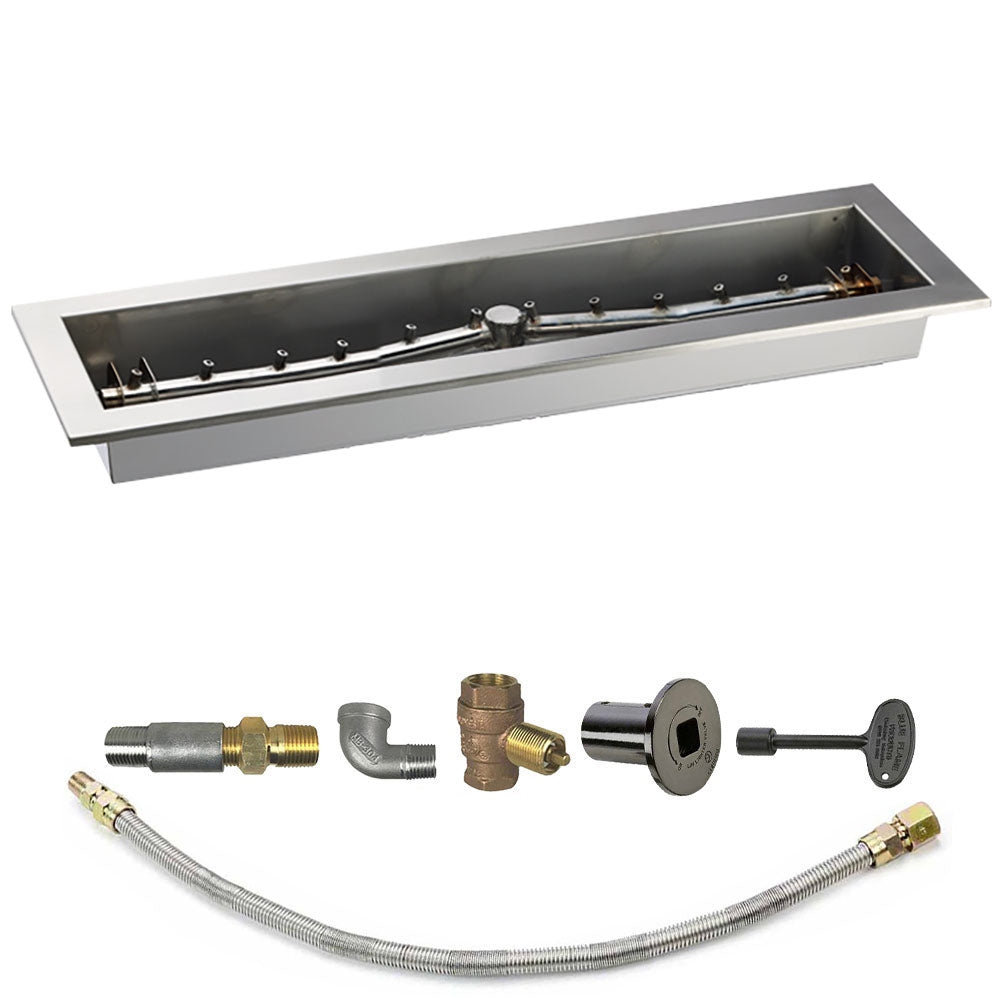

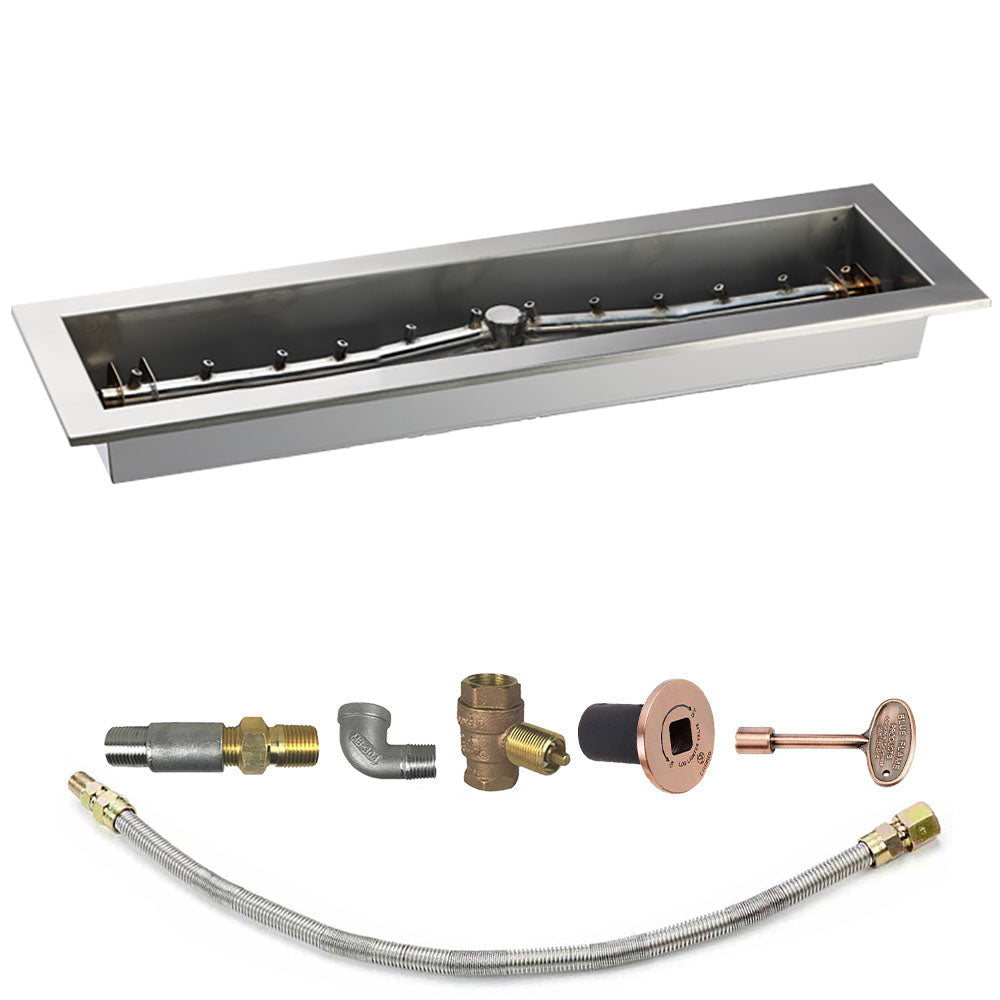

    This burner can be installed DIY or by a professional installer and can be used for either Natural Gas or Propane applications; for LP applications a propane conversion kit, which includes an air mixer, coupler & nipple, will be necessary. The burner must be installed so the burner ports face upwards. The kit components include a stainless steel whistle-free gas flex line, quarter-turn ball valve, decorative flange & key, and stainless steel fittings; the fully assembled kit will complete the burner assembly from the burner to the shut off valve.

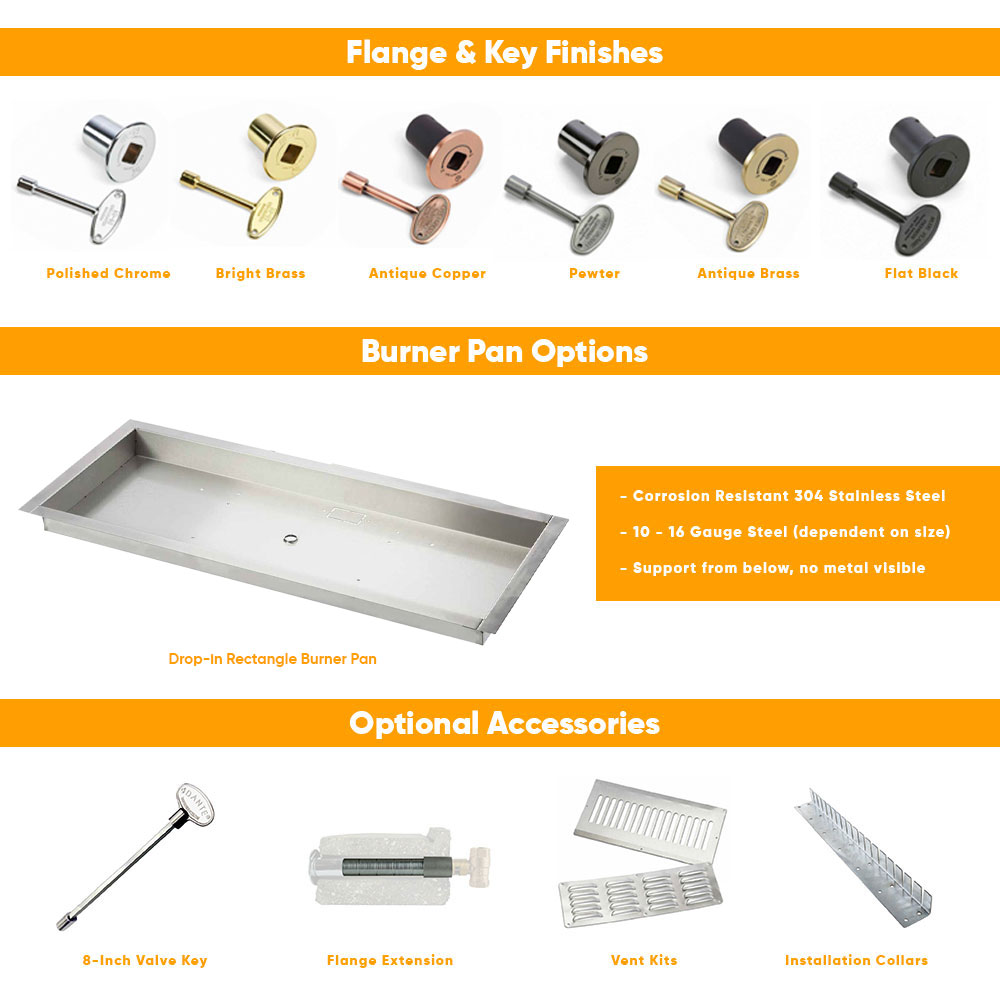

    What more do you need? Depending on your project you might need installation collars, a flange extension, a longer key, a regulator, vents, and fire media - check them out in the "Accessories" tab below.

    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

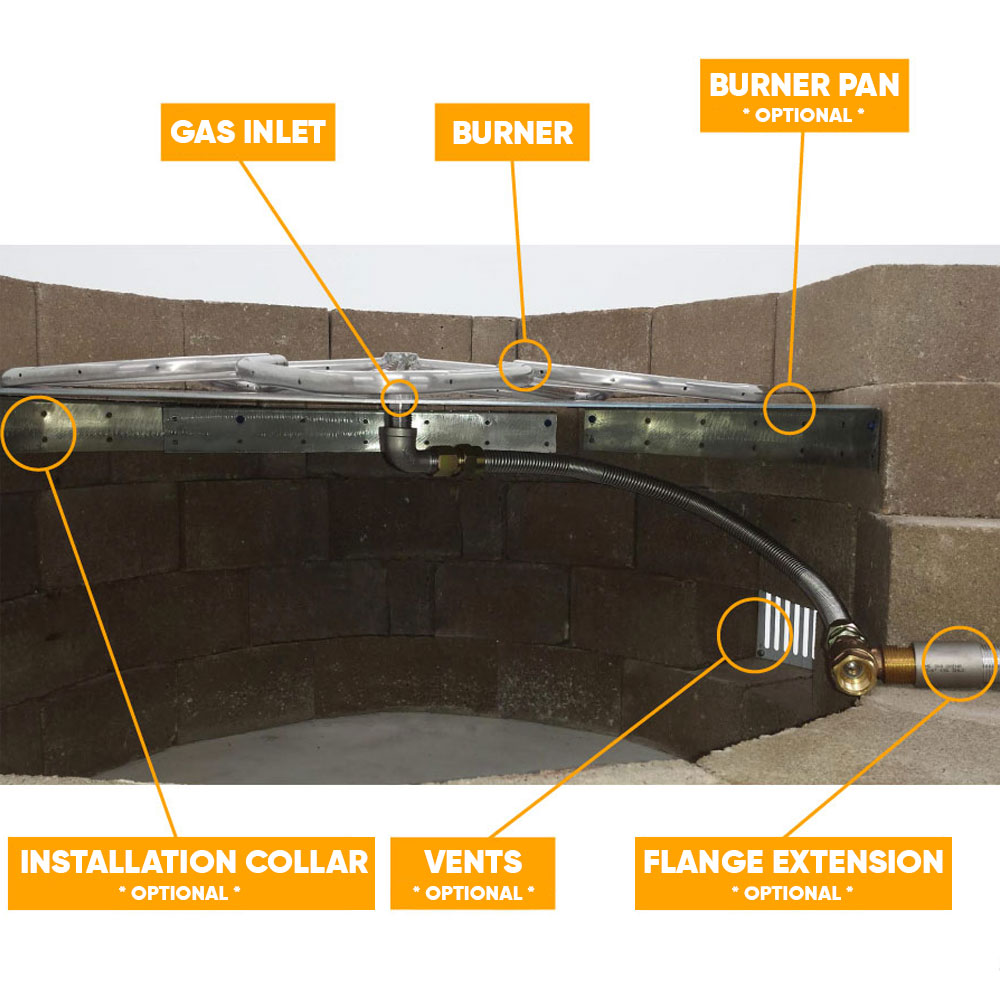

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
