Load Planning, Service Separation, and Structural Support
Patio heating looks like a simple product choice, but it behaves like an infrastructure project. Every fixture draws from a utility service that has a hard limit, every mounting point carries a physical load, and gas and electrical runs must coexist at prescribed safety distances. The sections below cover total load planning, keeping utility services properly separated, overhead structural support, comparing gas versus electric fixtures, system controls, and how furniture placement affects overall performance.
How Is Total Site Load Calculated?
A single heater is rarely the complete question. The useful calculation is what every fixture on a terrace draws simultaneously during peak operation. Calculating total connected load involves three straightforward steps:
- List All Planned Fixtures: Inventory every fixture intended for the space, including units planned for future expansion phases.
- Record Power Draw: Record each fixture's draw rating in watts or BTUs per hour directly from the manufacturer data sheets.
- Total by Service Type: Sum figures by fuel or power type, keeping electrical amperage and gas volume totals separate.
Electrical totals convert to required amperage at supply voltage, which is then compared against available circuit or panel capacity. Gas totals are evaluated against meter, regulator, and supply line delivery capabilities. Where calculated draw exceeds available service, the solution is upgrading utility capacity or reducing fixture count rather than hoping the load never coincides.
A common oversight is phased purchasing. Two fixtures installed in spring sit comfortably on an existing circuit, but a third added in autumn trips the breaker during peak operation. Planning total fixture count at the outset avoids unexpected electrical failures. Specifications published across our outdoor heaters collection provide the necessary electrical and BTU figures to perform these calculations accurately before installation begins.
Why Must Gas and Electrical Runs Be Separated?
Gas plumbing and live electrical wiring are routinely present on a heated terrace, and building codes mandate strict physical separation between them.
The underlying safety logic is clear: electrical faults can generate heat and sparks. Running gas plumbing alongside live wiring creates a clear hazard that physical distance eliminates. Pressure regulators demand special attention because regulator vents are designed to relieve pressure by releasing gas under specific conditions; releasing gas adjacent to live electrical equipment is precisely what clearance rules exist to prevent.
Mandatory separation distances are determined by local building codes and the authority having jurisdiction (AHJ), varying by region and installation type. This makes clearance a question for local code inspectors and licensed trades rather than product catalogs. Specifiers should design supply routes that keep gas lines and electrical conduit distinctly separated from rough-in onward, avoiding the high cost of relocating buried lines later.
What Supports an Overhead Heater?
Suspended and ceiling-mounted heaters transfer structural loads into framing members that may not be engineered to support them.
Dead load (the combined weight of the fixture and mounting brackets) is simple to account for. What installers frequently overlook is wind load. Hanging a flat panel heater beneath an open patio roof acts like a sail, generating wind uplift and drag forces during gusts far beyond what the fixture's static weight suggests. When multiple units are installed in a commercial array, those wind forces multiply significantly.
Before proceeding with an overhead installation, verify three critical factors:
- Structural Member Capacity: Confirm that ceiling joists, beams, or trusses are rated for the combined dead and dynamic wind load rather than assuming structural adequacy.
- Appropriate Fastening Methods: Select mounting hardware specifically matched to the structural material, whether timber, structural steel, or reinforced masonry.
- Site-Specific Wind Exposure: Evaluate local wind conditions, noting that a sheltered courtyard and an open coastal terrace experience drastically different wind dynamics.
Engineering sign-off is standard practice for commercial installations and strongly advised for large residential overhead arrays.
How Do Gas and Electric Compare for a Patio?
Choosing between gas and electric heating depends primarily on what utilities are already present at the installation site:

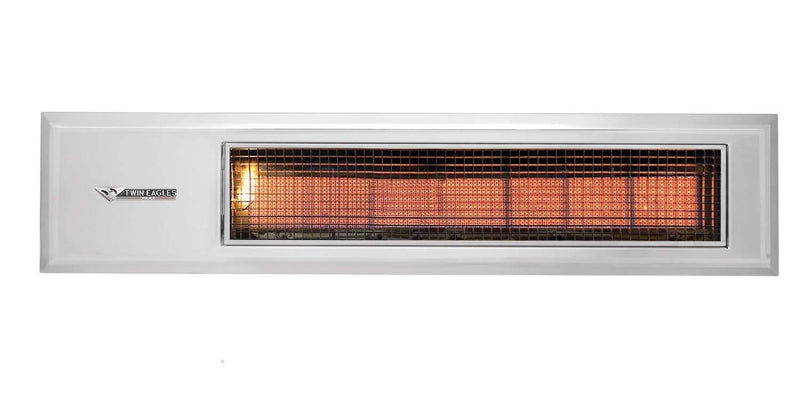

- Gas Patio Heaters: Gas models produce high radiant heat output and require no electrical capacity beyond basic control circuits, making them ideal for large, open-air outdoor spaces. Options for open environments can be explored in our outdoor gas heaters collection.

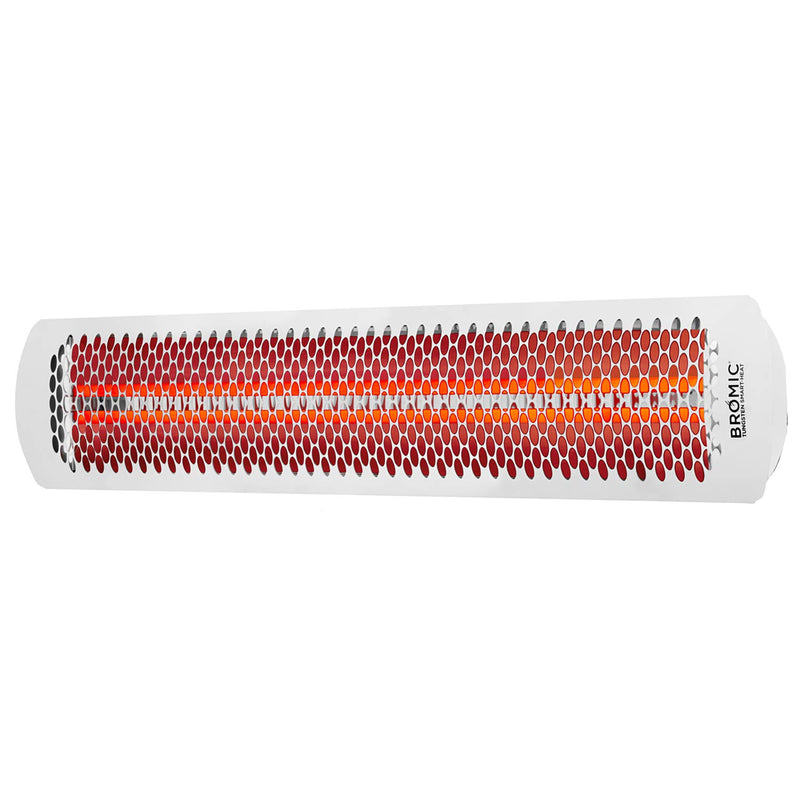

- Electric Patio Heaters: Electric units require no gas lines, start instantly, and emit zero combustion byproducts, making them the preferred solution for covered patios and enclosed structures. These models are available in our outdoor electric heaters range.
Operating costs depend on local utility rates for natural gas, liquid propane, and electricity rather than universal rules. Installation costs usually favor whichever utility is already accessible. Mixed utility setups are common on expansive terraces, with gas heaters warming open patio spaces while electric heaters serve covered dining areas.
What Does Control Hardware Add?
Control hardware transforms standalone heating fixtures into an efficient, user-friendly heating system.
Zoning provides the greatest operational advantage. Independent control over distinct patio zones ensures heat is directed only where guests are seated, directly reducing operating costs. Automatic timers prevent fixtures from being left running overnight, addressing both energy waste and safety concerns. Remote controls are essential for overhead or wall-mounted heaters positioned out of easy reach. Thermostatic controls automatically adjust heat output to ambient weather conditions rather than running continuously at full capacity.

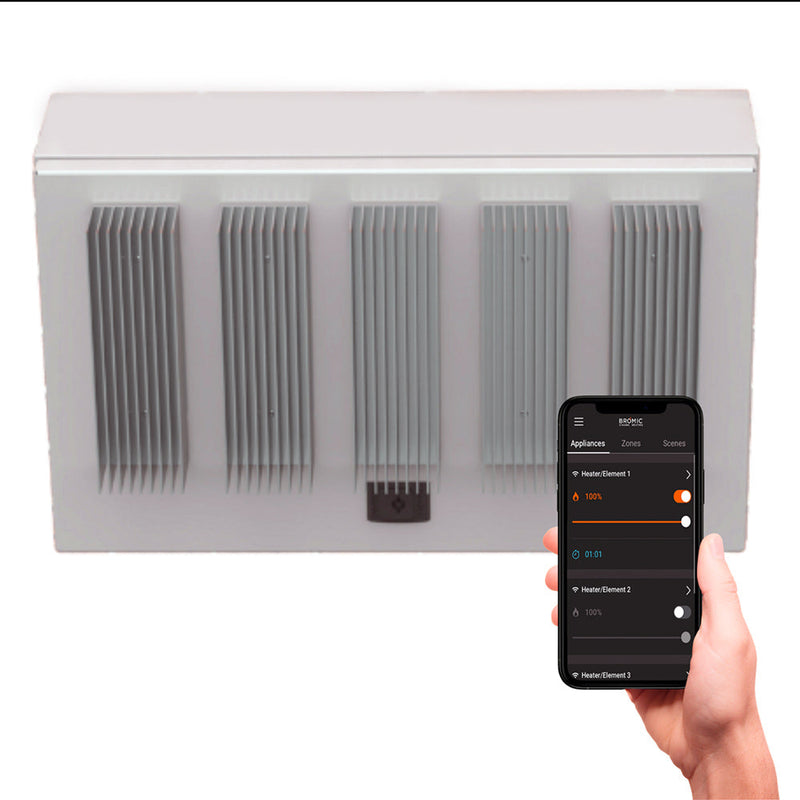

System controls, switches, and mounting accessories are available in our outdoor heater controls and accessories collection. Commercial venues particularly benefit from automated controls, as staff turnover and unattended operation make automated shutoff features essential.
How Does Furniture Placement Affect Heating?
Radiant heaters warm solid objects within a targeted area, and furniture placement determines whether people sit inside that comfort zone.
Radiant warmth travels in a direct line of sight and diminishes with distance, creating a defined heat footprint. Placing seating outside this zone renders the heater ineffective for guests, regardless of its BTU or wattage rating. Planning furniture layouts alongside heater positioning ensures warmth reaches seated guests rather than empty walkways.
Physical obstructions also block radiant heat. Tall planters, patio umbrellas, or high-backed outdoor sofas placed between a wall-mounted heater and seating cast a shadow in heat just as they would in light. Maintaining clear sightlines from heater to seating and selecting low-profile furniture maximizes comfort without changing hardware specs.
What Should Be Settled Before Ordering?
Four key factors resolve most specification decisions on a patio heating project:
- Available Utility Capacity: Determine spare amperage at the electrical panel and available gas line capacity.
- Covered vs. Open Overhead: Identify overhead enclosure conditions, as this often dictates gas versus electric compatibility.
- Mounting Surface Types: Evaluate wall, ceiling, or freestanding mounting surfaces to select compatible brackets.
- Seating Layouts: Map exact seating positions to define the specific zones requiring heat coverage.
Settling all four factors before ordering ensures you specify fixtures that can be properly powered, safely mounted, and fully felt by guests.
