HPC Fire Stainless Steel Fireplace Burner Pan, Rectangular
  • HPC Fire Stainless Steel Fireplace Burner Pan, Rectangular
HPC Fire Stainless Steel Fireplace Burner Pan, Rectangular

HPC Fire
$79.39

HPC Fire Stainless Steel Fireplace Burner Pan, Rectangular
SKU: DSBP18
Usually Ships in 2-3 Business Days

Price:
$79.39
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Stainless Steel Construction - Durable #304 stainless steel guarantees a quality product
    • Product Description

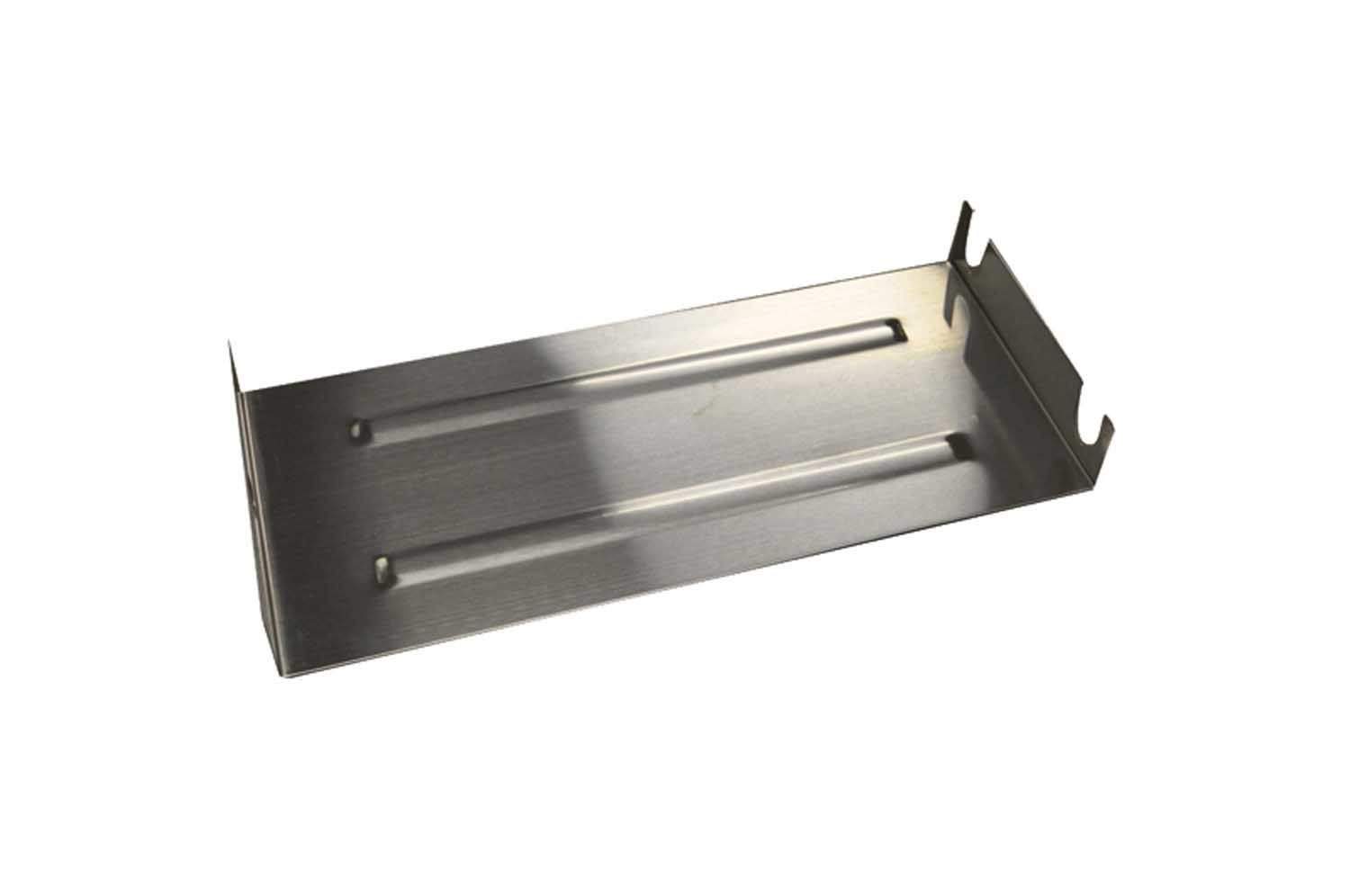

    The HPC Fire Stainless Steel Fireplace Burner Pan, Rectangular provides a high quality fire pit pan to help complete the installation of your gas fire pit project. The unique rectangular flat pan is made of high quality 304 stainless steel while the design of the pan provides space for your fire media in addition to the proper support for HPC's dual fireplace burner. The dimensions of the pans are noted in inches while the unique design of the pan is intended for use with every size of dual burner.

    Gas fire pit pans are a crucial component to maintain the safety and quality of your fire pit. Burner pans help support your burner ring, separate the air mixer from fire media (for LP applications), and save money by reducing the amount of fire media you would otherwise need to complete your fire pit. Pans also help to minimize fuel settling below the pan, and help your fire pit drain properly, failure to do so may result in personal injury or explosion.

    Venting Type Ventless
    Product Weight 4.0 lb
    Burner Pan Size 18x8-Inches
    Burner Pan Type Flat
    Material Stainless Steel
    Product Depth 8.0 in.
    Product Height 2.0 in.
    Product Width 18.0 in.
    Shape Rectangle
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
