HPC Fire Rectangular Stainless Steel Fire Pit H-burners

SKU: TOR-HBSB18-NG

Fuel Type:Natural Gas Natural Gas Propane

Burner Size

Free Shipping!

Usually Ships in 2-3 Business Days

Price:

$159.45

view full details

Optional Accessories:

Product Features

Stainless Steel Construction - Heavy duty 304 stainless steel guards against rusting and ensures a long lasting product

Standard Burner Ports - Drilled, not punched, burner ports are standard on the tube for a broader, more complete flame

Standard Capacity - Burner rings feature a standard capacity 1/2" female NPT gas inlet

Raised Central Hub - Gas inlet is raised above the concentric rings to prevent water from entering the valve or gas line

Includes - H burner, propane orifice, nipple & coupler; be sure to check out our fire pit kits to find this burner included with the necessary components for use

Product Description

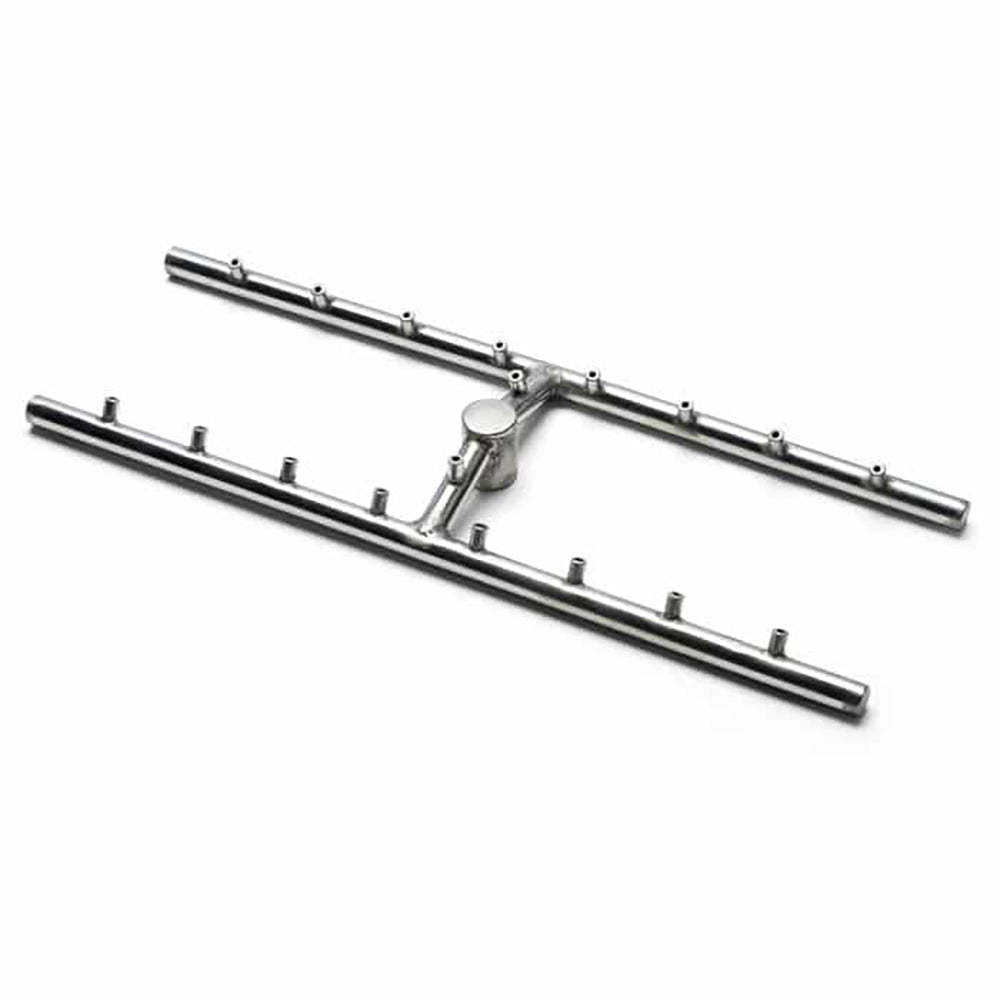

The HPC Fire Rectangular Stainless Steel Fire Pit H-burners provides a high quality fire pit component necessary to complete your gas fire pit project. The H shaped burner is manufactured by HPC and constructed from high quality 304 stainless steel; each H burner features standard burner ports, a 1/2 Inch female gas inlet, and is neatly machine welded to produce a seamless and durable product. The burner kits can be chosen in a standard configuration or with the innovative Torpedo nozzles, which create a taller, more robust flame more akin to a natural wood fire.

This burner can be installed DIY with the help of a professional installer and is intended to be used with propane applications; a propane conversion kit, which includes an air mixer, coupler & nipple, is included. The burner should be at least 6" smaller than the inside dimensions of your enclosure and must be installed so the burner ports face upwards.

Product Weight	2.0 lb
BTUs	125000
Burner Size	18x6-Inches
Material	304 Stainless Steel
Product Depth	6.0 in.
Product Width	18.0 in.
Shape	H-Shaped

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
