HPC Fire Rectangular 60x24-Inch Unfinished Fire Pit Enclosure for 36-Inch Trough Pans

SKU: FPE60X24-LINEAR-36-Config

Fuel Type:Propane N/A (Enclosure Only) Natural Gas Propane

Ignition

Model

Free Shipping!

Usually Ships in 14-28 Business Days

Price:

Starting at $2,072.11

view full details

Optional Accessories:

Product Features

Heavy Duty Construction - Sturdy 22 gauge galvanized steel material, welded frame, and a 1/2" hardiboard shell for supreme quality and durability

Custom Finish Options - The unfinished unit allows your own custom finishing stone, stucco, veneer or other material to allow a personal finish

Ventilation - Included vent covers provide the necessary ventilation requirements to ensure safety and long term use

Product Description

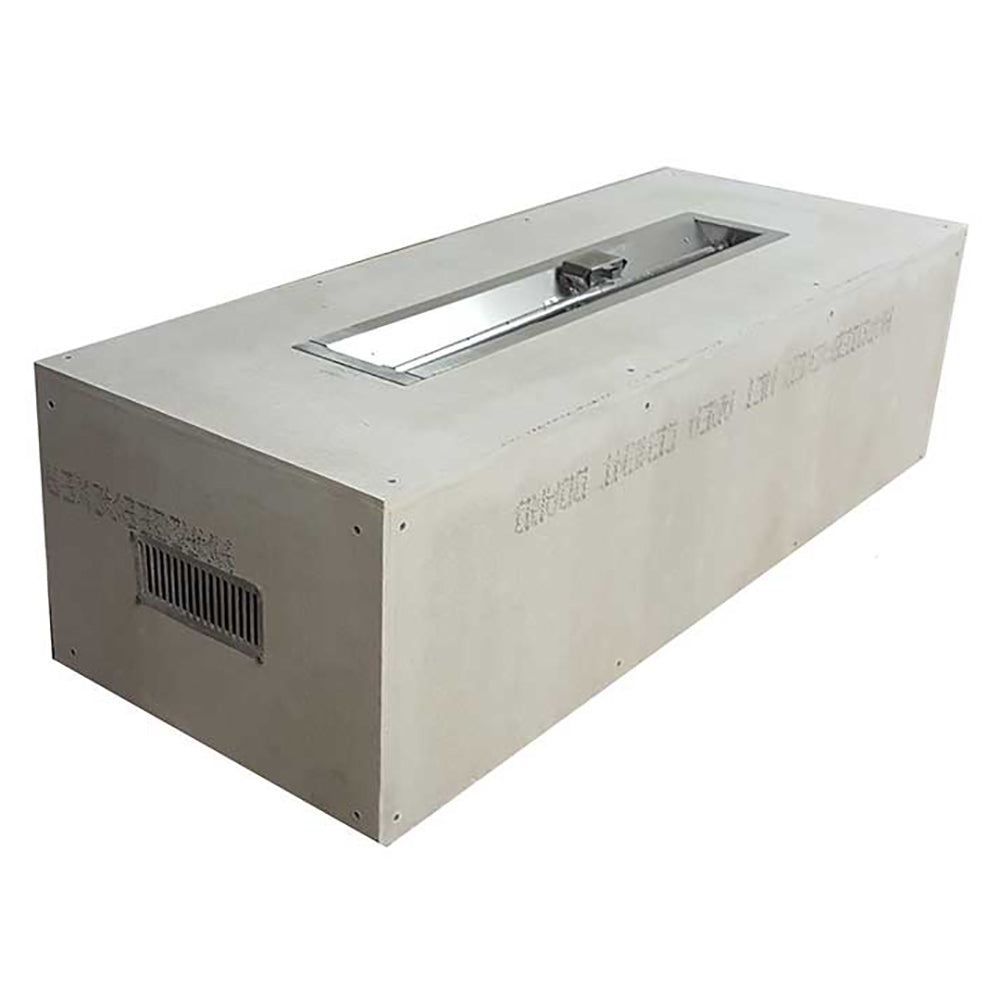

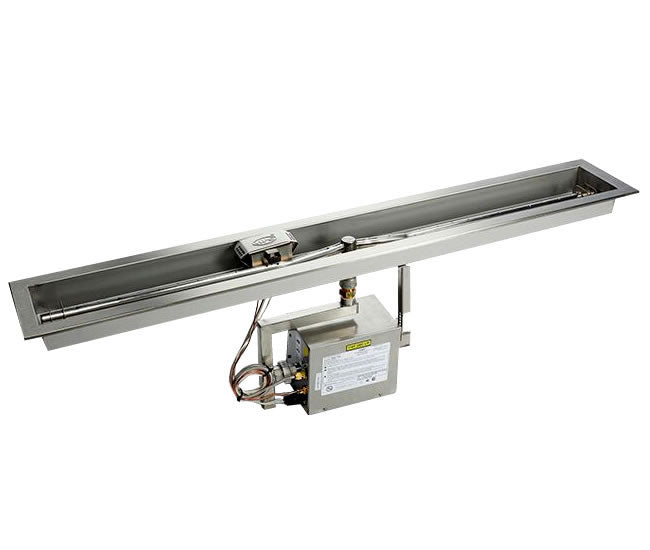

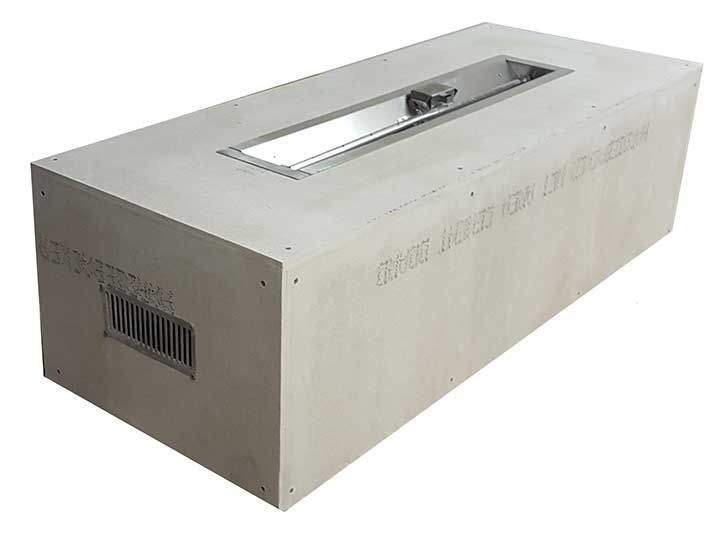

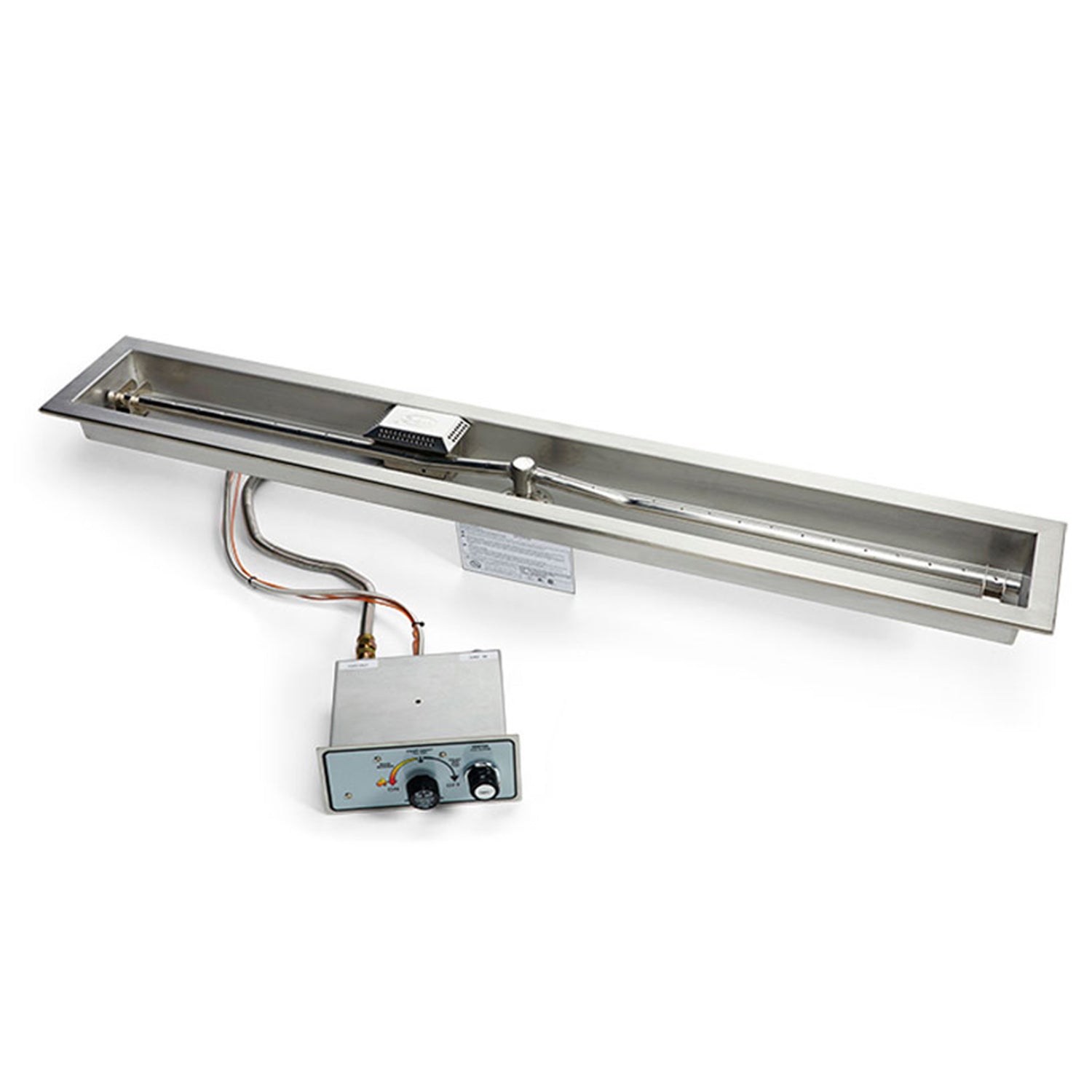

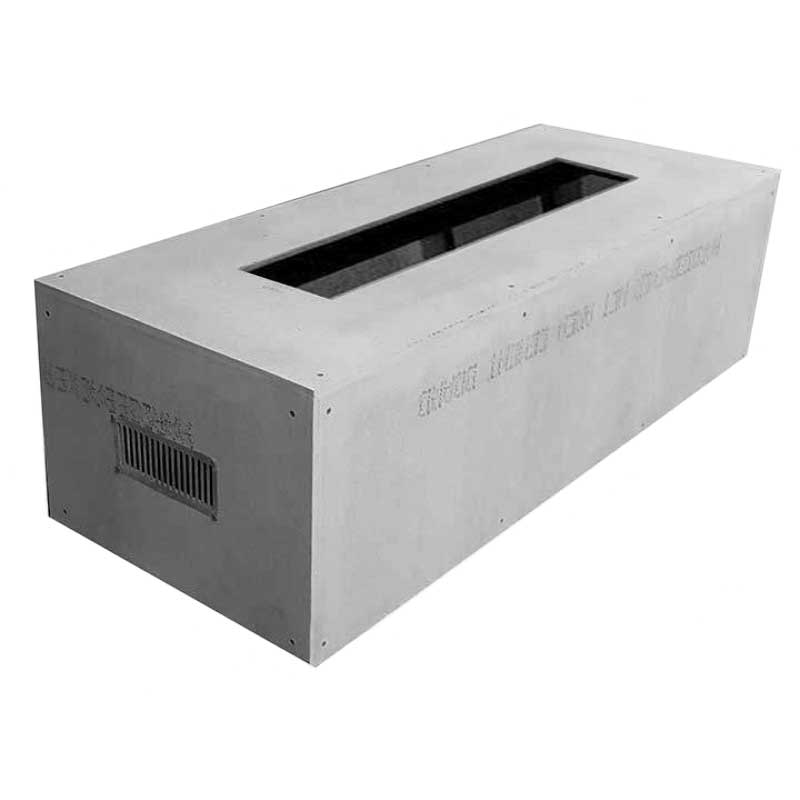

The HPC Fire Rectangular 60x24-Inch Unfinished Fire Pit Enclosure for 36-Inch Trough Pans simplifies the installation of your DIY gas fire pit. This unfinished 60" x 24" rectangular fire pit enclosure, made ready to house a 36" linear fire pit kit. With these unfinished fire pit enclosures by HPC, you can spare yourself the guesswork in constructing your own fire pit - but still allow yourself the opportunity to customize the appearance. Whether stone, stucco, veneer, or any other finish you choose, these fire pit enclosures can match any surrounding. Choose to add one of the preselected burner kits for a complete product - a great choice for any patio. The burner kit comes with the innovative Torpedo nozzles, which create a taller, more robust flame more akin to a natural wood fire. Note: This kit includes HPC's improved, CSA certified valve box that's designed in a smaller profile to be easier to install and features a new solenoid design making it more reliable and easier to service.

This enclosure is 18" tall and features a sturdy 22 gauge galvanized steel welded frame, and a 1/2 Inch Hardiboard shell; each enclosure weighs about 150lbs. Enclosures also feature proper ventilation, a requirement for every gas fire pit.

Choose Product Options To See Full Specifications

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

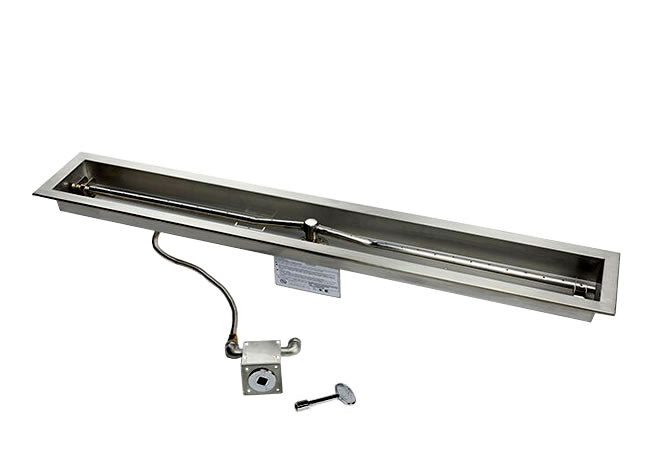

Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
