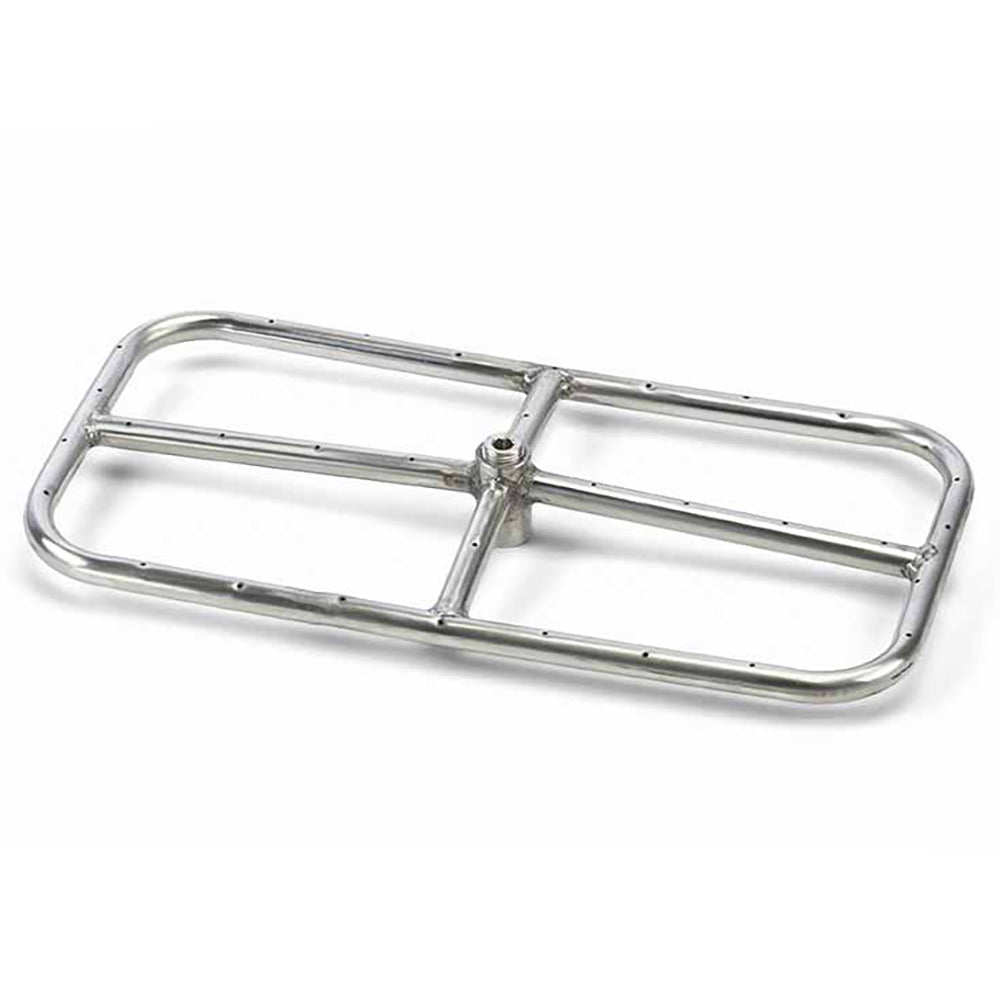

HPC Fire Rectangle Stainless Steel Fire Pit Burners

HPC Fire
$100.32

HPC Fire Rectangle Stainless Steel Fire Pit Burners
SKU: FRSR-12X6-NG
Fuel Type:Natural Gas
Free Shipping!
Today or Next Business Day

Price:
$100.32
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Stainless Steel Construction - Heavy duty 304 stainless steel guards against rusting and ensures a long lasting product
  • Standard Burner Ports - Drilled, not punched, burner ports are standard on the tube for a broader, more complete flame
  • Standard & High Capacity - Burner rings are available in both standard 1/2" and high 3/4" capacity
  • Raised Central Hub - Gas inlet is raised above the concentric rings to prevent water from entering the valve or gas line
  • Natural Gas or Propane - Burner kit is NG ready, with LP conversion kit available; gas inlet is raised to prevent water entering gas line
    • Product Description

    The HPC Fire Rectangle Stainless Steel Fire Pit Burners provides a high quality fire pit component necessary to complete your gas fire pit project. The rectangle shaped burner is manufactured by HPC and constructed from high quality 304 stainless steel; each rectangle burner features standard burner ports, a 1/2 Inch female gas inlet (3/4-inch for High Capacity), and is neatly machine welded to produce a seamless and durable product.

    This burner can be installed DIY with the help of a professional installer and can be used for either Natural Gas or Propane applications; for LP applications a propane conversion kit, which includes an air mixer, coupler & nipple, will be necessary. The burner should be at least 6" smaller than the inside dimensions of your enclosure and must be installed so the burner ports face upwards.

    Product Weight 2.0 lb
    BTUs 90000
    Burner Size 12x6-Inches
    Material 304 Stainless Steel
    Product Depth 12.0 in.
    Product Height 4.0 in.
    Product Width 12.0 in.
    Shape Rectangle
    Style Modern
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
