HPC Fire Penta or Round Electronic Ignition Gas Fire Pit Kit with Round Flat Pan

HPC Fire

Starting at $2,848.32

HPC Fire Penta or Round Electronic Ignition Gas Fire Pit Kit with Round Flat Pan

SKU: RFP-EI-Config

SKU

Free Shipping!

Usually Ships in 2-3 Business Days

Price:

Starting at $2,848.32

view full details

Optional Accessories:

Product Features

Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan, guards against rusting and ensures a long lasting product; Sealed control box is water-resistant

Hot Surface Ignition System - 120V or 24V electronic startup utilizes hot surface ignition to reliably ignite, every single time; Unique automatic flame sensor detects if the pilot goes out and automatically closes the gas valve for added safety

Optional Remote Control - Optional On/Off remote control is available for standard units; HI/LO units include the remote control

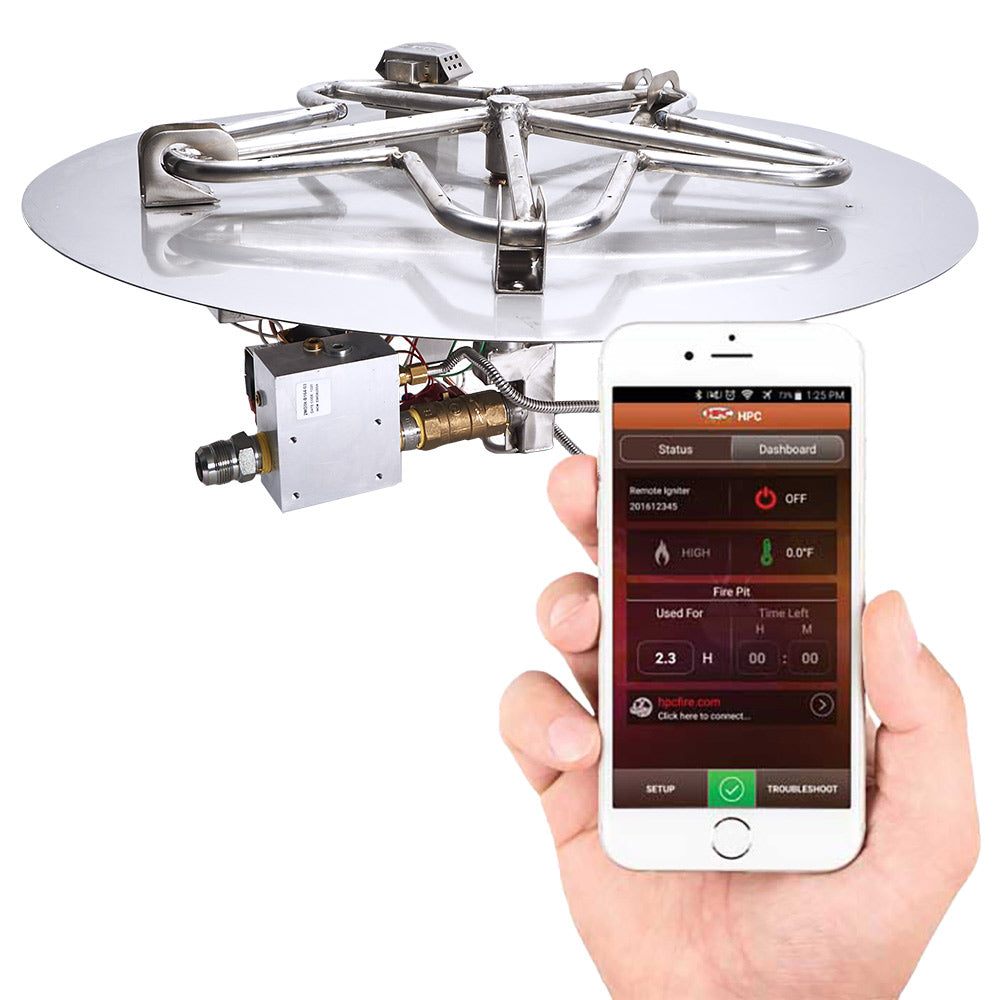

Smartphone App - Exclusive HPC Fire app works with HI/LO units to wirelessly control the unit via Bluetooth

CSA Certified - Ensuring the highest quality and safety for outdoor gas fire pits

Product Description

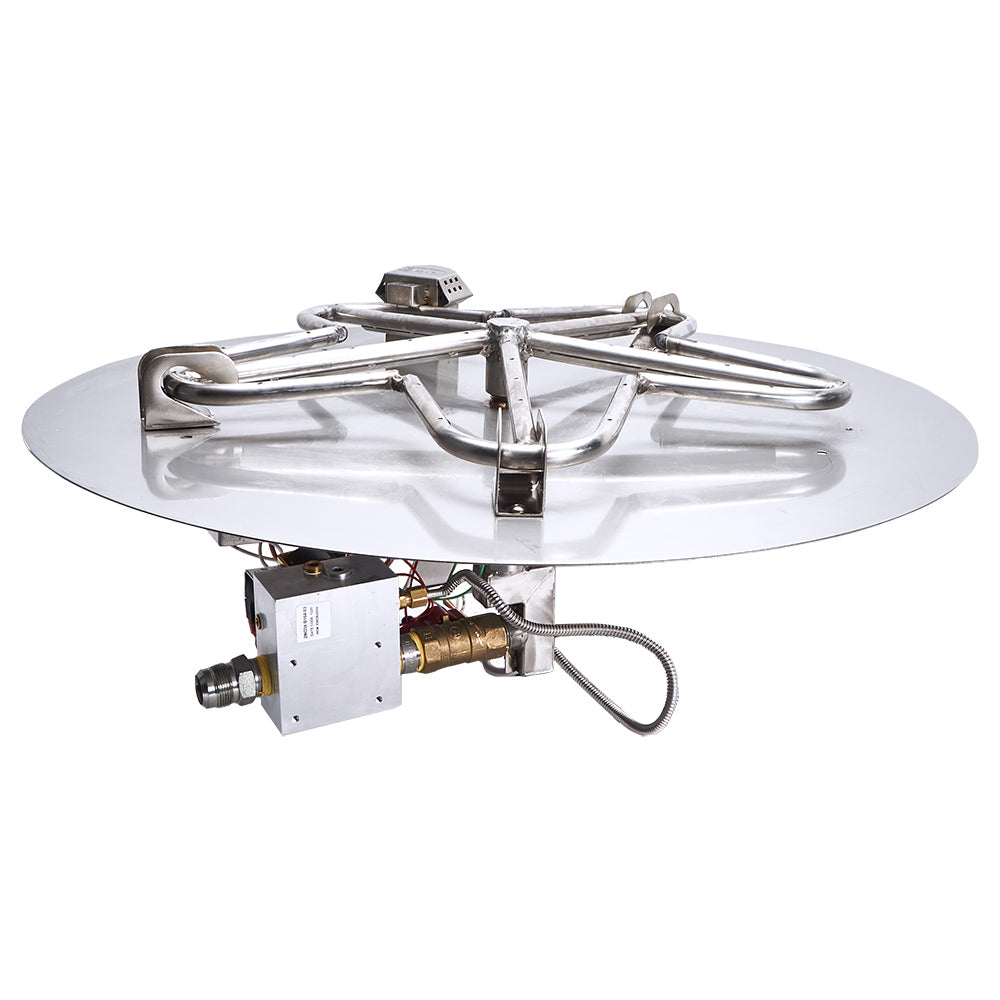

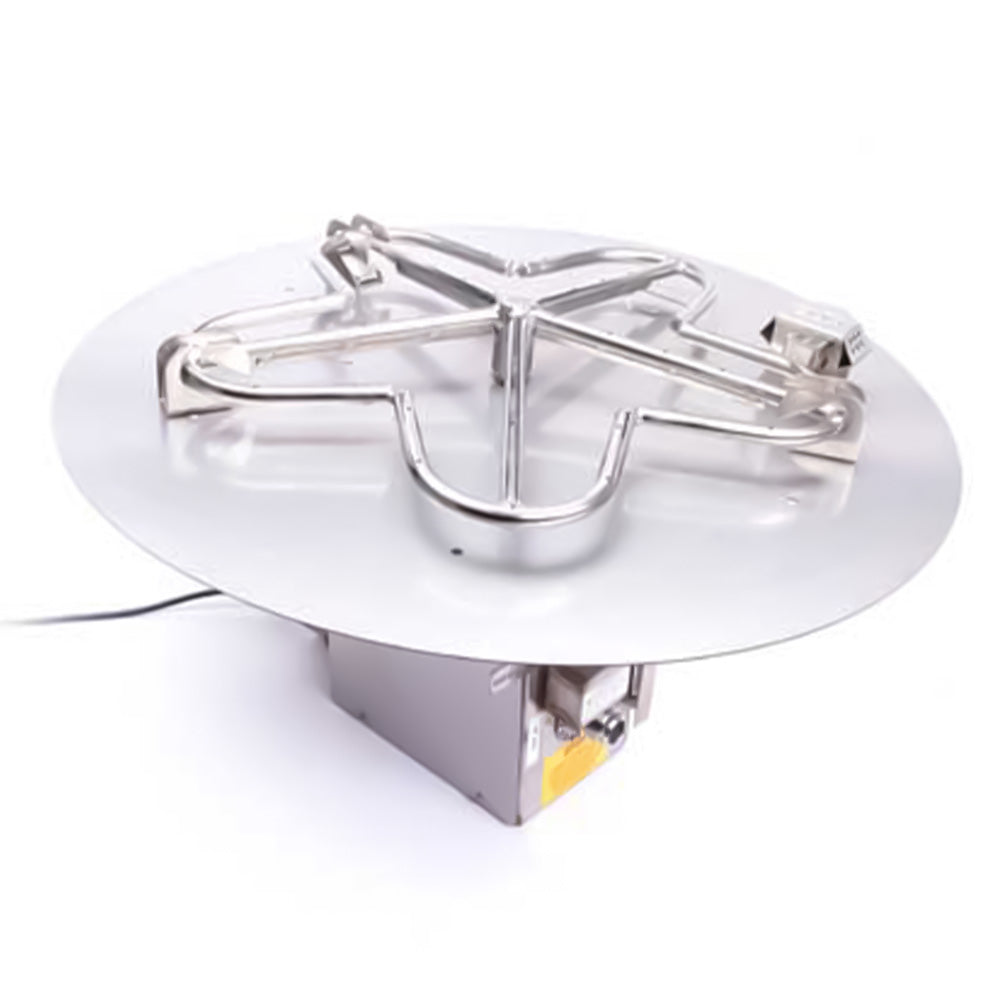

The HPC Fire Penta or Round Electronic Ignition Gas Fire Pit Kit with Round Flat Pan combines high quality construction with innovative technology to complete your gas fire pit project. The unique Hot Surface Ignition (EI) design allows for remote electronic ignition using either the ON/OFF or HI/LO remote control. The innovative flame sensing system features a pilot light and thermocouple that work to monitor the presence of flames and will automatically close the gas valve if the flames are extinguished. The penta shaped (except 13SSEI models) burner is constructed from premium 304 stainless steel; each burner features standard burner ports, a 1/2" (or 3/4" for HC) female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC.

This burner kit is designed for both natural gas and propane applications, the burner will come assembled to the round flat pan. Also assembled will be the necessary hard piping for the sealed control box; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line. This unit can be purchased as a 120 VAC unit with a standard three-prong plug-in for use in a GFI outlet. Alternatively, a 24 VAC unit requires an external power supply to operate (sold separately; SKU: 311).

The "ON/OFF" variation of this burner kit will require an external switch, timer, or optional remote (SKU: 578-C) to operate, while a remote control is included for the "HI/LO" variation. The "HI/LO" version of this burner kit is also compatible with the HPC smartphone app for added convenience. HI/LO units offer two flame height selections for user customizability. The "HI" setting offers maximum flame height and power, while the "LO" setting cuts the flame by 40 percent. In addition, the phone app allows on/off, timer, and troubleshooting functionality. NOTE: This product is not intended for use with small fuel tanks.

Choose Product Options To See Full Specifications

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
