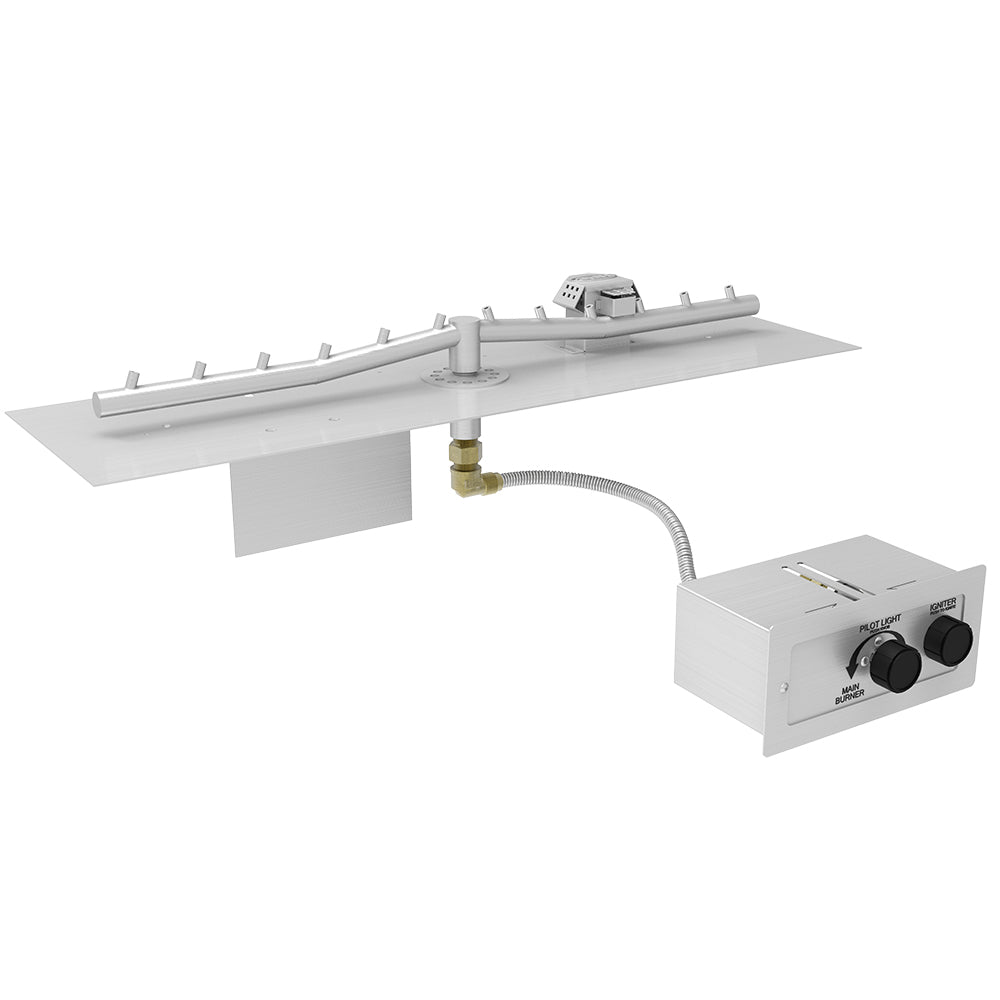

HPC Fire Linear Flame Sensing Spark Ignition Fire Pit Kit with Flat Pan and Torpedo Burner

SKU: TOR-FPPK-LF-XX-Config

Fuel Type:Natural Gas Natural Gas Propane

Size

Free Shipping!

Usually Ships in 2-3 Business Days

Price:

$1,400.42

view full details

Optional Accessories:

Product Features

Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan ensures a long lasting product

Spark Ignition Pilot Assembly - Simple battery powered push button ignites the flame using a pilot light and thermocouple

Flame Sensor - Automatic flame sensor detects the pilot light and closes the gas line if the flames are extinguished

Flexible Assembly - New flexible gas line allows a more accommodating installation

CSA Certified - Ensuring the highest quality and safety for outdoor gas fire pits

Product Description

The HPC Fire Linear Flame Sensing Spark Ignition Fire Pit Kit with Flat Pan and Torpedo Burner combines high quality construction and convenience to complete your gas fire pit project. The battery powered ignition system gives effortless control over the fire pit with just the push of a button; the FPPK series also features an automatic flame sensor that will detect if/when the pilot is extinguished, and will automatically close the gas valve. The Linear shaped burner is constructed from premium 304 stainless steel; each burner features standard burner ports, a 1/2" female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC. The innovative Torpedo burner nozzle provides a higher flame akin to a natural wood fire.

The burner kit is designed for both natural gas and propane applications, the burner will come assembled to the rectangular flat pan. Also assembled will be the necessary fittings for the sealed control box attached with a flexible gas line; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line.

Choose Product Options To See Full Specifications

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply

Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both

For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column

For Propane*: Supply Pressure should be set between 8" - 11" Water Column

*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.

Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply

Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

Fire Pit Pan - Included with all of HPC's preassembled fire pit kits

A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key

An external shut off valve is not required with this kit, but may be an option for added safety

Ventilation - For all fire pit burners, adequate ventilation is required

The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow

Installation Collars - Are designed to simplify the installation of a fire pit pan

Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws

Fire Media - Is the final step to finishing a gas fire pit

Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
