HPC Fire 80x24-Inch Rectangular Unfinished Small Tank Gas Fire Pit Enclosure Kit with Interlink Burner and Propane Door

SKU: TOR-UST80X24/49X8FPPKCEK-LP

Free Shipping!

Usually Ships in 14-28 Business Days

Price:

$5,590.52

view full details

Optional Accessories:

Product Features

Heavy Duty Construction - Sturdy 22 gauge galvanized steel material, welded frame, and a 1/2" hardiboard shell for supreme quality and durability

Custom Finish Options - The unfinished unit allows your own custom finishing stone, stucco, veneer or other material to allow a personal finish

Ventilation - Included vent covers provide the necessary ventilation requirements to ensure safety and long term use

Gas Type - Fire pit comes propane ready to suit your propane application

Product Description

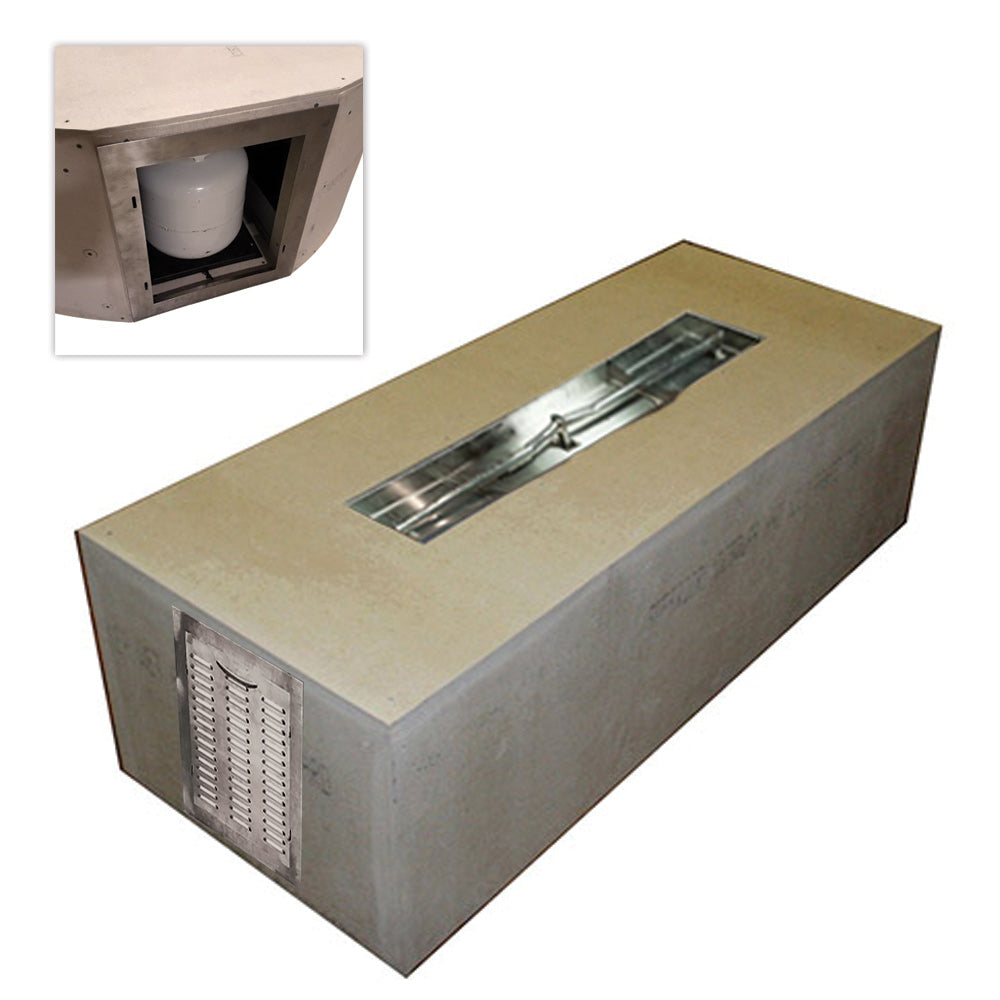

The HPC Fire 80x24-Inch Rectangular Unfinished Small Tank Gas Fire Pit Enclosure Kit with Interlink Burner and Propane Door simplifies the installation of your DIY gas fire pit. This 80-inch x 24-inch rectangular fire pit enclosure comes ready-to-finish with a 49-inch x 8-inch trough pan and matching burner. Spare yourself the guesswork in constructing your own fire pit while maintaining the customizability with this simple kit. Whether stone, stucco, veneer, or any other finish you choose, these fire pit enclosures can match any surrounding. Choose to add one of the preselected burner kit ignition options for a complete product--a great choice for any patio. The burner kit comes with the innovative Torpedo nozzles, which create a taller, more robust flame more akin to a natural wood fire.

This enclosure is 23.5 inches tall, features a sturdy 22 gauge galvanized steel welded frame, and is encased in a 1/2-Inch Hardiboard shell. This enclosure features integrated ventilation to ensure proper operation as well as a convenient propane tank access door.

Product Weight	350.0 lb
BTUs	90000
Burner Material	304 Stainless Steel
Burner Pan Size	36x14-Inches
Burner Pan Type	Trough
Burner Size	30x8-Inches
Ignition	Spark Ignition
Material	Galvanized Steel,Hardie Board
Product Depth	80.0 in.
Product Height	23.5 in.
Product Width	24.0 in.
Shape	Rectangle

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
