Fire by Design XHCG Extra High Capacity AWEIS 24VAC Electronic Gas Fire Pit Ignition System with Commercial Grade Pilot
SKU: XHCG-Config
Free Shipping!
Usually Ships in 5-10 Business Days
Price:
$3,050.55
Optional Accessories:
Description
Specifications
Downloads
Product Features
- Heavy-Duty Construction - 316 marine grade stainless steel control box safely houses electronic components
- Flame Sensing Hot Surface Ignition - Glow plug ignites gas for a simple, reliable start every time; Thermopile detects presence of flame and safely shuts off gas if flames are extinguished
- 1" FPT inlet/outlet; 24VAC or 30VDC voltage; 0.5 PSI gas inlet pressure limit
- Valve Dimensions - 7.5625" x 7.4375" x 8"
- Extra High Capacity - Designed for large fire features
Product Description

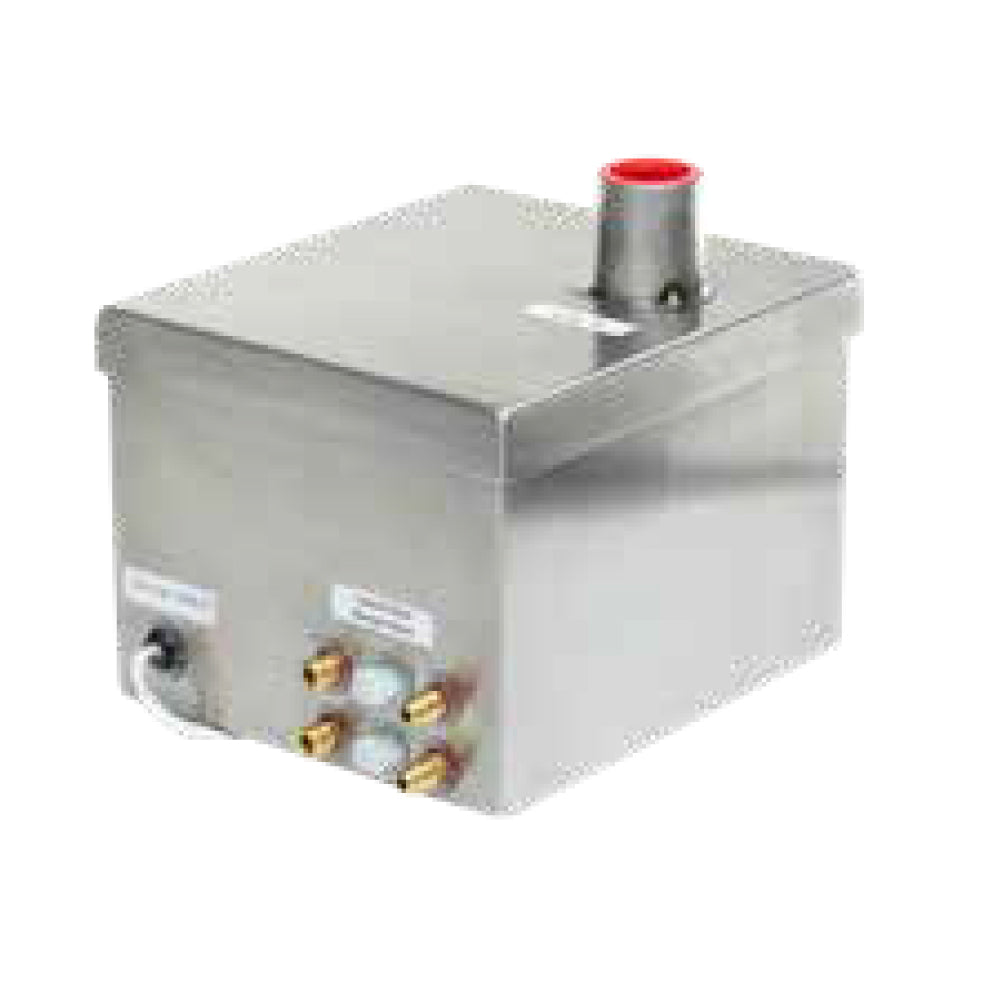

The Fire by Design XHCG Extra High Capacity AWEIS 24VAC Electronic Gas Fire Pit Ignition System with Commercial Grade Pilot provides a high quality component that can be used to complete a DIY fire pit project. The patented All-Weather Electronic Ignition System (AWEIS) features a reliable blend of technology and components to offer a simple and quick ignition to a gas fire feature. The 316 marine grade stainless steel control box safely houses the electronic components to withstand the elements in some of the most extreme wind, rain, and other inclement weather. The unit operates on 24 VAC power to start the hot surface igniter, which ignites the pilot light. After the pilot is lit, the thermocouple senses the heat and transfers the electronic signal to open the main gas valve. NOTE: The power supply for this unit is not included and must be purchased separately if needed.
The AWEIS Extra High Capacity is rated for a max BTU output of 1,100,000 BTU. The valve features 1-inch FIP inlet/outlet fittings to connect with other gas components. The entire valve box measures 7.5625 by 7.4375 by 8 inches (W x D x H).
⚠️
WARNING: This product can expose you to chemicals including LEAD AND LEAD COMPOUNDS, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.
