Product Features
Product Description

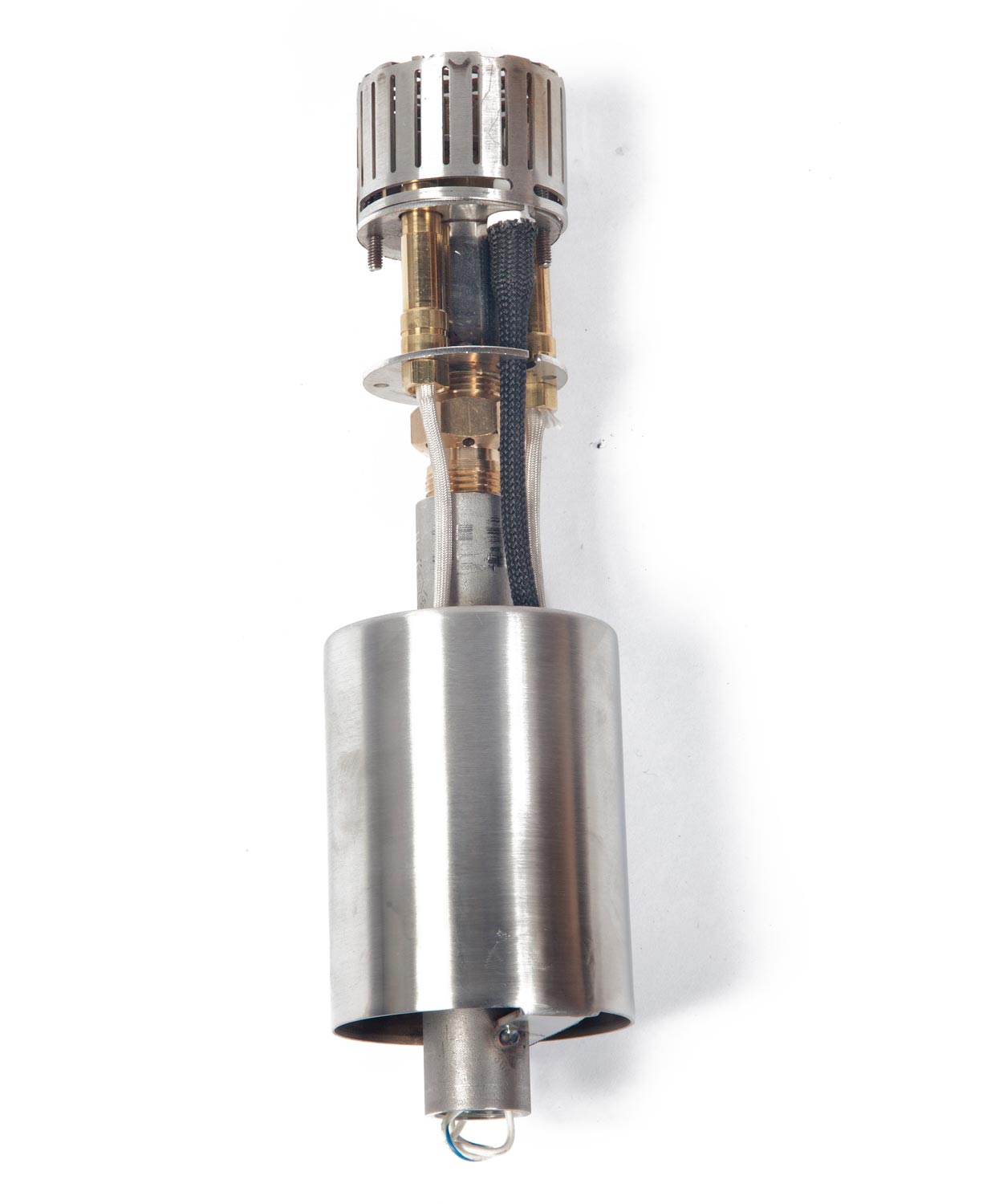

The Fire by Design VFM Vulcan 24VAC Electronic Gas Fire Pit Module with Burst Feature provides a high quality component that can be used to complete a DIY fire pit project. The Vulcan Fire Module is the smallest electronic ignition system on the market today, and features a reliable blend of technology and components to offer a simple and quick ignition to a gas fire feature. The 316 marine grade stainless steel control box safely houses the electronic components to withstand the elements in some of the most extreme wind, rain, and other inclement weather. The unit operates on 24V AC power to start the hot surface igniter, which ignites the pilot light. After the pilot is lit, the thermocouple senses the heat and transfers the electronic signal to open the main gas valve.
The Vulcan VFM is rated for a max BTU output of 25,000 BTU with a maximum inlet pressure of 0.5 PSI. The valve features 1/2-inch FPT fittings to connect with other gas components. The entire canister measures 2.5 by 6.5 inches (D x H). This unit offers an ideal ignition system for smaller fire features and torches.
