Fire by Design HC-2PBA High Capacity Dual-Pilot AWEIS Electronic Gas Fire Pit Ignition System with Commercial Grade Pilot

The Fire by Design HC-2PBA High Capacity Dual-Pilot AWEIS Electronic Gas Fire Pit Ignition System with Commercial Grade Pilot provides a high quality component that can be used to complete a DIY fire pit project. The patented All-Weather Electronic Ignition System (AWEIS) features a reliable blend of technology and components to offer a simple and quick ignition to a gas fire feature. The 316 marine grade stainless steel control box safely houses the electronic components to withstand the elements in some of the most extreme wind, rain, and other inclement weather. The unit operates on either 24 VAC or 30 VDC power to start the hot surface igniters, which ignite the pilot lights. After the pilots are lit, the thermocouples sense the heat and transfer the electronic signal to open the main gas valves. NOTE: The power supply for this unit is not included and must be purchased separately if needed.

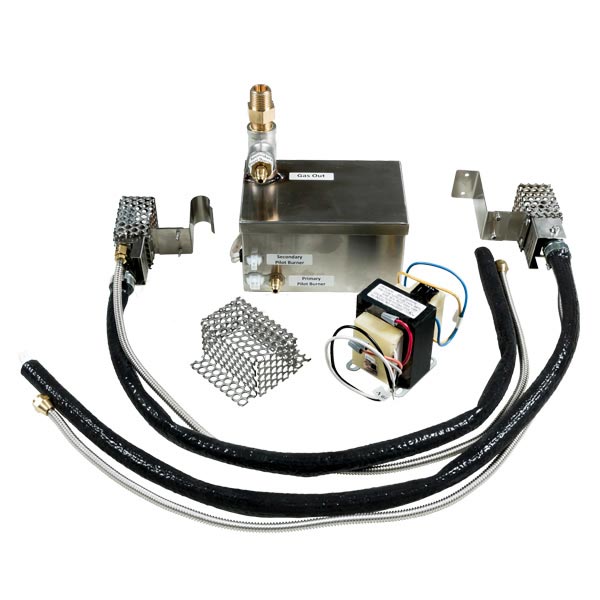

The AWEIS High Capacity is rated for a max BTU output of 512,000 BTU with a maximum inlet pressure of 0.5 PSI. The valve features 3/4-inch FPT fittings to connect with other gas components. The entire valve box measures 4.5 by 4.5 by 5 inches (W x D x H). This unit features a dual-pilot design. Includes Pilot Burner Assembly, Ignition Control Module, Heat Deflector Shield and Install Instructions.
