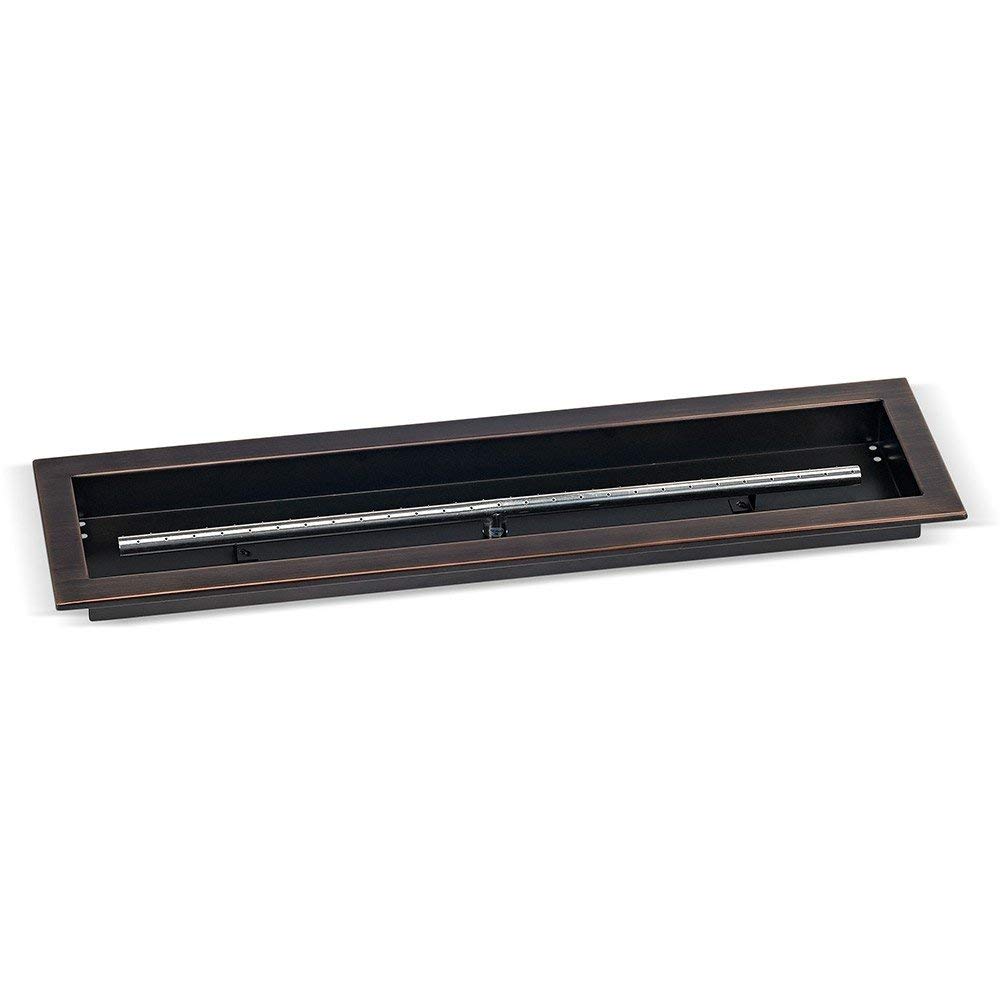

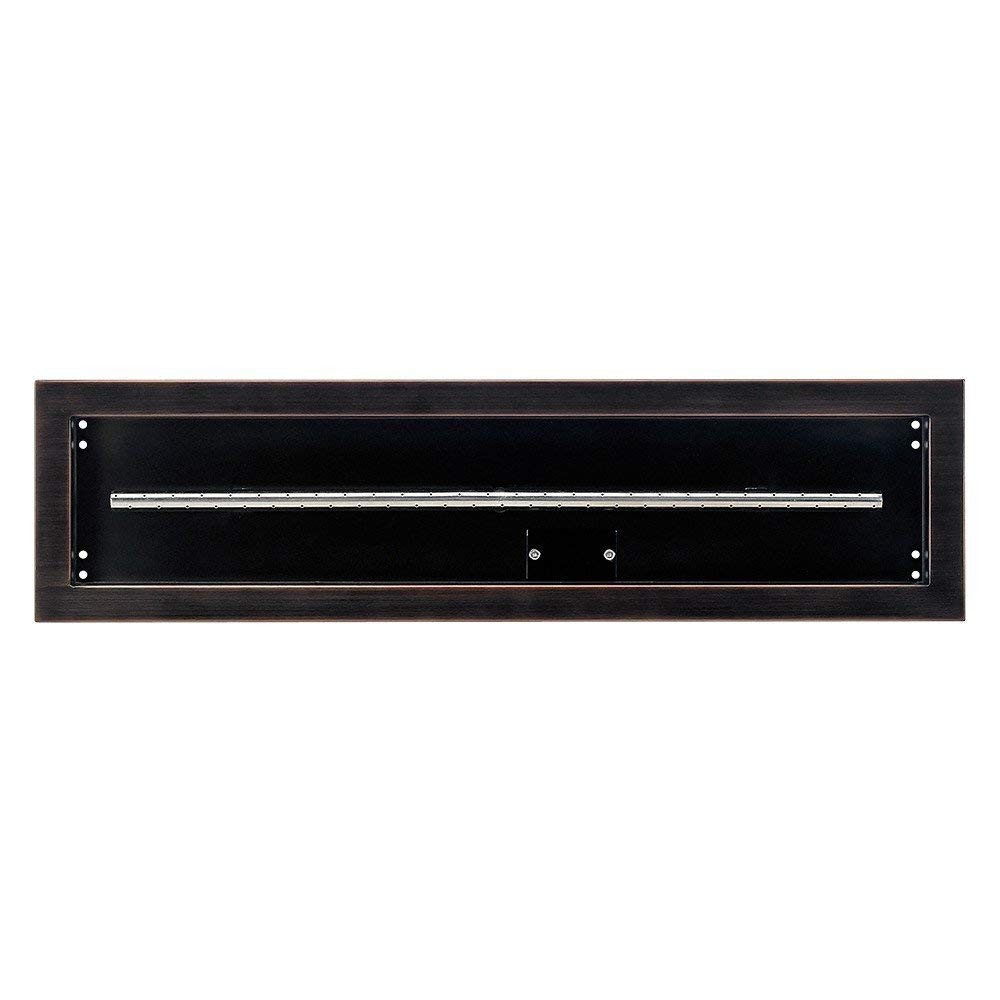

American Fire Glass Linear Oil Rubbed Bronze Pan with Burner

SKU: OB-LCB-Config

Free Shipping!

Usually Ships in 2-4 Business Days

Price:

Starting at $245.99

view full details

Optional Accessories:

Product Features

Heavy Duty Stainless Steel Construction - #304 stainless steel for durability and longevity

Oil Rubbed Bronze Finish - Pan is hard finished with a bronze look

Drilled Burner Ports - Drilled burner ports in the burner to prevent whistling

Weep Holes - Pre-cut holes help pan drainage and increase longevity of the unit

Includes - Burner, pan (with 1-1/4-inch flange)

Product Description

The American Fire Glass Linear Oil Rubbed Bronze Pan with Burner offers a premium stainless steel linear fire pit burner and pan for your fire pit project. Built for durability and longevity, the linear burner and trough pan offer some of the best fire pit components available today. The burner and pan are each manufactured from hand crafted, rust-resisting 304 stainless steel while the pan is finished with an oil rubbed bronze look. The burner contains drilled burner ports to prevent whistling. It is highly recommended that these units are installed by certified gas plumbers to ensure safety and optimal performance. With 5 different size options, these kits from American Fire Glass are sure to achieve a realistic flame at your desired dimensions to suit your outdoor space.

Choose Product Options To See Full Specifications

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic

Product Resources

American Fire Glass

Since 2004, American Fire Glass has produced high-end fire pit and patio items in California. Their products are popular among hotels, restaurants, casinos, and residential backyards. The company has grown to employ over 30 people in a 20,000-square-foot facility and has been recognized by INC as one of the fastest-growing companies. They offer limited lifetime warranties for their stainless steel items and have a diverse selection of fire pit glass media, outdoor fire pits, fire pit tables, and fireplaces.
