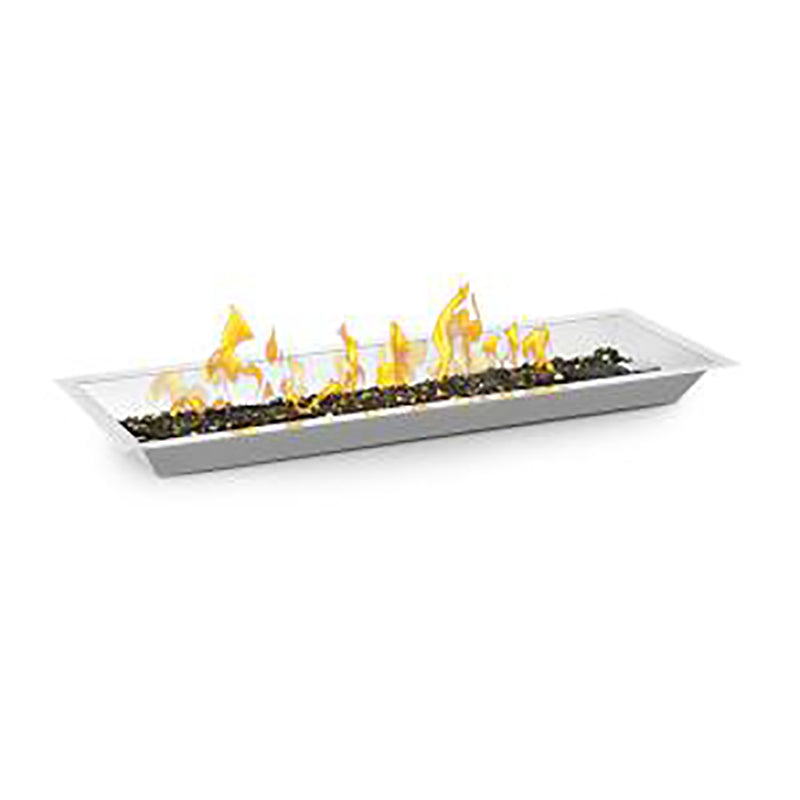

Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch
  • Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch
  • Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch
Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch

Napoleon
$807.64

Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch
SKU: GPFR60
Free Shipping!
Usually Ships in 14-21 Business Days

Price:
$807.64
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • High Quality Construction - Heavy duty 304 stainless steel construction for long term durability
  • Thermocouple Valve - Manual ball valve with complete pilot assembly with a thermocouple for flame sensing
  • Adjustable Flame Height - Manual valve allows you to raise and lower the flame height
  • LP or NG - Kit comes ready for propane but will include the natural gas conversion
  • Includes - 30x13.5-inch burner, control panel with spark ignition, propane regulator and natural gas conversion, topaz fire glass
    • Product Description

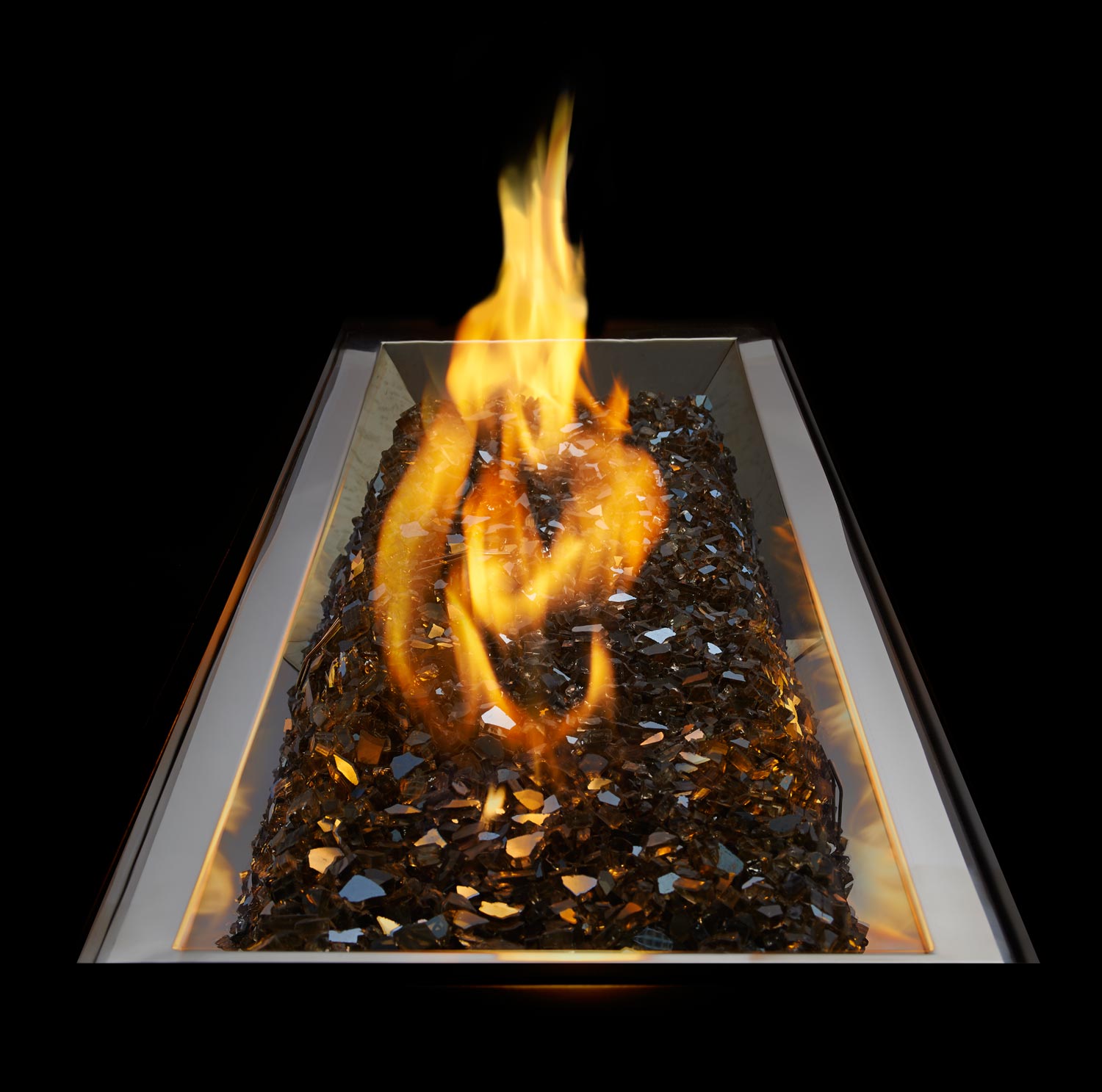

    The Napoleon Push Button Flame Sensing Gas Fire Pit Kit, Rectangular, 30x13.5-Inch provides a high quality spark ignition fire pit kit to complete your DIY gas fire pit. The commercial quality 304 stainless steel construction offers long term durability and weather resistance, while the manual valve features a complete pilot assembly with a thermocouple to monitor the flame presence. The 60,000 BTU burner offers a wealth of heat, while the linear 30x13.5-inch burner design will provide a contemporary fire feature complete with topaz fire glass to offer a modern appearance.
    Certifications CSA/UL
    Fuel Type Natural Gas,Propane
    Product Weight 17.0 lb
    BTUs 60000
    Burner Pan Material Stainless Steel
    Burner Shape Linear
    Burner Size 30x13.5-Inches
    Ignition Push Button Spark Ignition
    Material Stainless Steel
    Product Depth 33.25 in.
    Product Height 2.75 in.
    Product Width 11.75 in.
    Shape Linear
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
