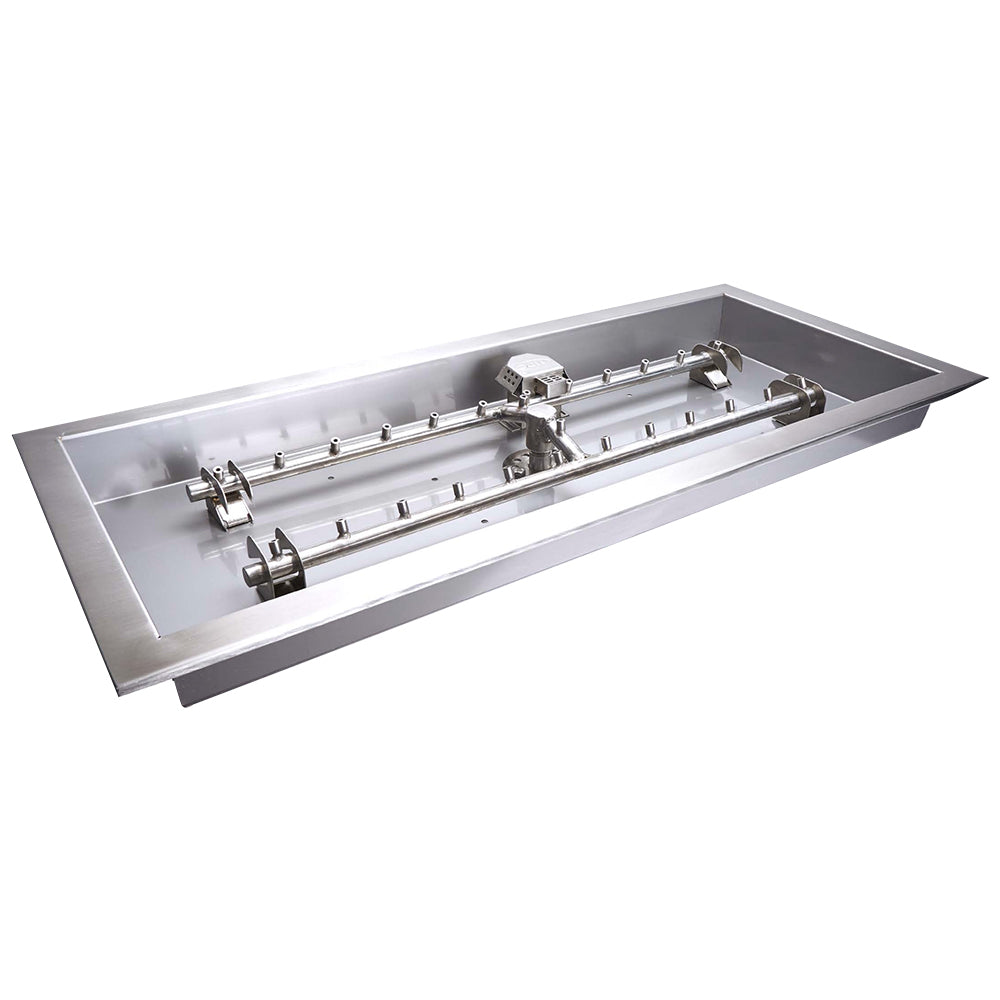

HPC Fire Stainless Steel Fire Pit H Burner Pan - Burner Included

SKU: 30X12SS-H

Fuel Type:Natural Gas Natural Gas Propane

Model

Size

Free Shipping!

Today or Next Business Day

Price:

$398.57 ~~$419.55~~

view full details

Optional Accessories:

Product Features

Heavy Duty Construction - 304 stainless steel drop-in rectangular pan with Torpedo H burner for tall, vibrant flames

Drop-In Design - Features a 1-3/8 inch rim and adds 2-3/4 inches to total dimensions for secure fit over pavers or enclosure

High BTU - Rated from 115,000 to 400,000 BTUs depending on burner size; includes 1/2" welded gas connection

Weather Resistant - Compatible with natural gas or propane; includes raised center hub and weep holes to shed water

Burner & Pan Only - Includes H burner, drop-in pan, and propane conversion kit (if selected); add SPTX-FLK1-2 for a complete match-light fire pit system

Product Description

The HPC Fire Stainless Steel Fire Pit H Burner Pan - Burner Included combines a durable gas fire pit burner and pan to complete the installation of your outdoor gas fire pit. Built from 304-grade 18-gauge stainless steel, this rectangular burner with drop-in pan is designed to withstand the elements while delivering strong, even flames - making it ideal for DIY and custom fire pit projects. The listed dimensions reflect the pan interior, while the 1-3/8 inch rim allows the tray to rest securely over paver stones or inside an enclosure, adding 2-3/4" to the total footprint. A raised center hub on the burner helps shed water, while integrated weep holes improve drainage for a more weather-resistant design. Compatible with natural gas or propane, this high-output burner delivers 115,000 to 400,000 BTUs and features Torpedo nozzles for tall, natural-looking flames. The 1/2 inch welded gas connection ensures a solid fit. Propane models include a conversion kit with air mixer; proper ventilation is required for installations. Burner and pan only - add part SPTX-FLK1-2 to build a complete match-light fire pit system.

Product Weight	36.0 lb
BTUs	90000
Burner Pan Size	30x12-Inches
Burner Pan Type	Bowl
Burner Size	24x6-Inches
Material	304 Stainless Steel
Product Depth	14.75 in.
Product Height	2.5 in.
Product Width	32.75 in.
Shape	Rectangle
Style	Modern

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
