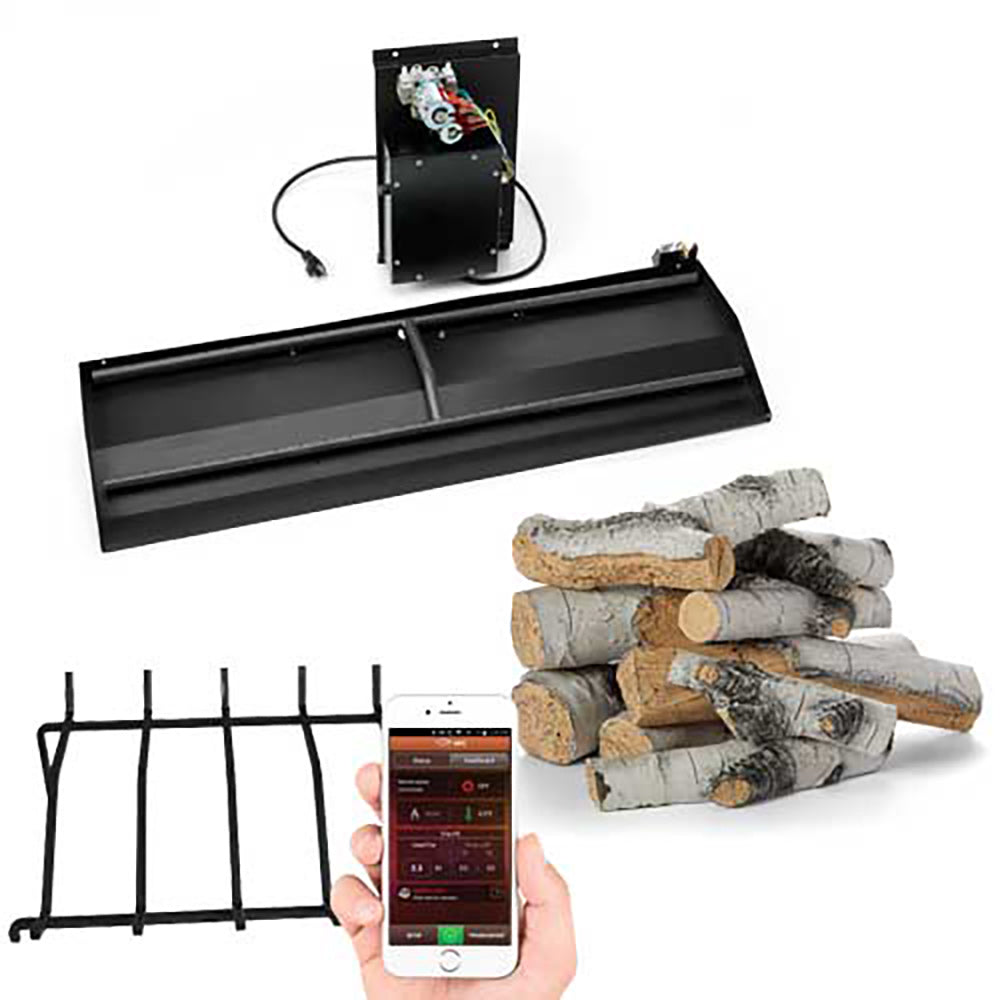

HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
  • HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set

HPC Fire
$3,198.78

HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set
SKU: HPC-DBOF22EI-HI-LO-LP-120VAC-AB9
Free Shipping!
Usually Ships in 14-21 Business Days

Price:
$3,198.78
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Powder-coated stainless steel burner and pan protects against rust to ensure a long lasting product
  • 120V electronic startup utilizes hot surface ignition to reliably ignite, every single time
  • Automated sensor detects if the pilot goes out and automatically closes the gas valve for added safety
  • Water resistant control box features stainless steel construction to hold up outdoors
  • H-burner design with elevated rear leg; Adjustable rear pan height for flame performance variability
    • Product Description
    The HPC Fire Duel-Step Electronic Ignition Gas Fireplace Insert with Log Set combines premium design with quality construction for a superior outdoor fireplace insert kit. Featuring powder-coated black stainless steel construction in both burner and pan, this kit has been designed to withstand the test of time. The low-profile design of the included burner offers attractive aesthetics with any media, while standard burner ports offer improved flame performance. Both the burner and pan feature integrated weep holes to ensure proper water drainage to extend the life of the components as well as a NEMA-rated valve for weather protection. Burners and pans are also backed by a Limited Lifetime Warranty from HPC. This unit is a 120 VAC unit with a standard three-prong plug-in for use in a GFI outlet.
    Certifications CSA/UL
    Fuel Type Natural Gas,Propane
    Venting Type Ventless
    BTUs 90000
    Burner Pan Size 22x10-Inches
    Burner Pan Type Trough
    Burner Size 21-Inches
    Ignition Hot Surface Ignition
    Material 304 Stainless Steel
    Shape Linear
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
