Crossfire by Warming Trends Mercury Flame Sensing Spark Ignition Original Brass Gas Fire Pit Burner Kit

Warming Trends

$1,423.00

Crossfire by Warming Trends Mercury Flame Sensing Spark Ignition Original Brass Gas Fire Pit Burner Kit

SKU: CFB84NG-MERCNG-ALPL18S-FKM1

SKU

Free Shipping!

Usually Ships in 7-20 Business Days

Price:

$1,423.00

view full details

Optional Accessories:

Product Features

Heavy duty brass burner construction ensures a corrosion resistant product

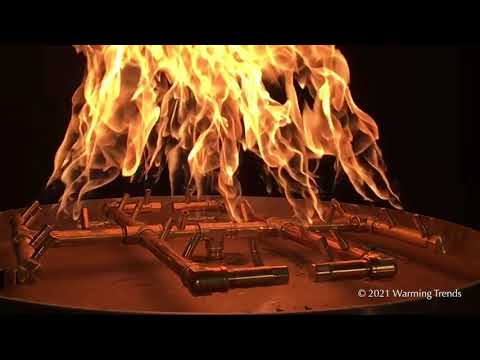

Innovative burner design with fuel regulation creates a brighter, taller flame presence

Mercury Ignition system features an easy on/off button to control the burner

Unique design creates a fuel efficient burner that consumes half the fuel of conventional burners

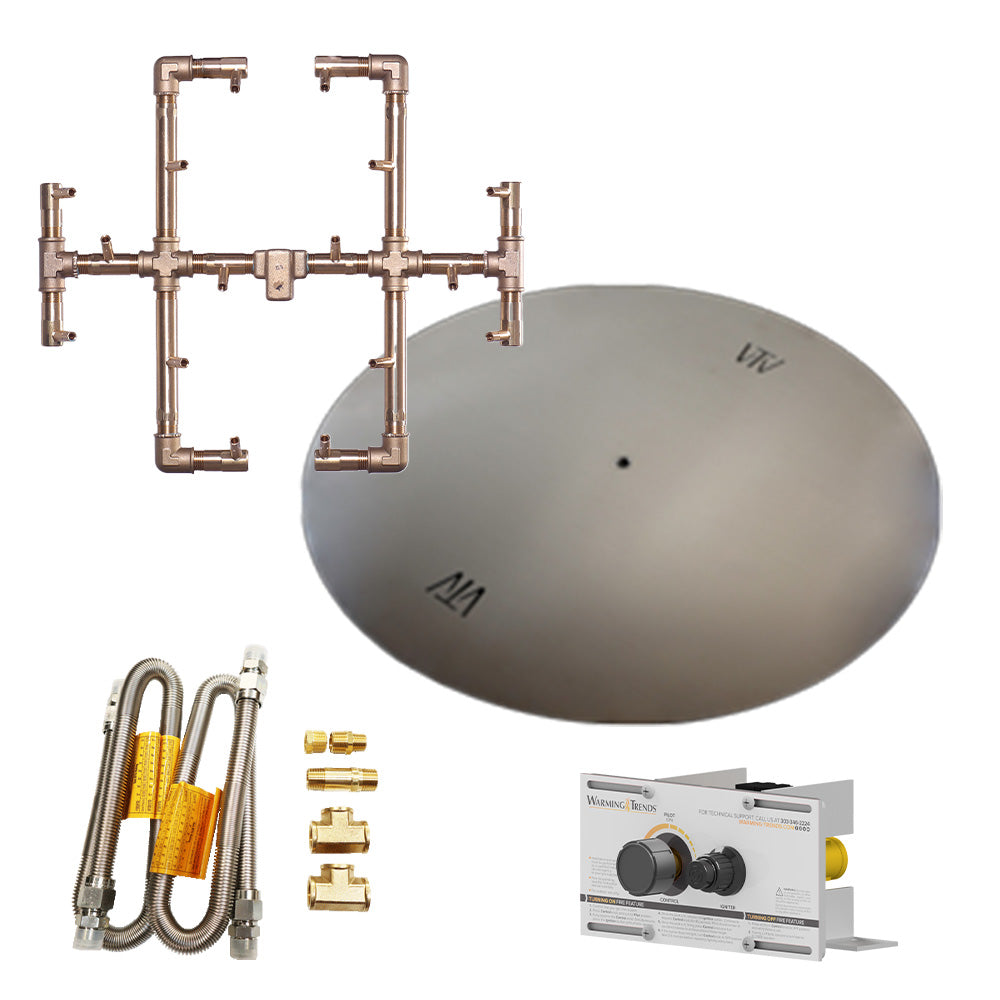

Includes Crossfire burner, Mercury Ignition control system, optional flex line, and optional flat pan

Product Description

The Crossfire by Warming Trends Mercury Flame Sensing Spark Ignition Original Brass Gas Fire Pit Burner Kit provides one of the most unique and innovative gas fire pit burner systems available. The heavy duty brass construction ensures an exceptionally high quality product that's designed for long lasting use outdoors while the unique Crossfire„¢ burner system features an innovative design that combines a specific air to gas mixture ratio to produce a taller, brighter flame. Intended for use with either propane or natural gas, these burners use close to half the fuel of conventional gas burners because of the unique regulation system. Available in a range of sizes and BTU ratings, the Crossfire„¢ burner offers a corrosion resistant product backed by a full lifetime warranty.

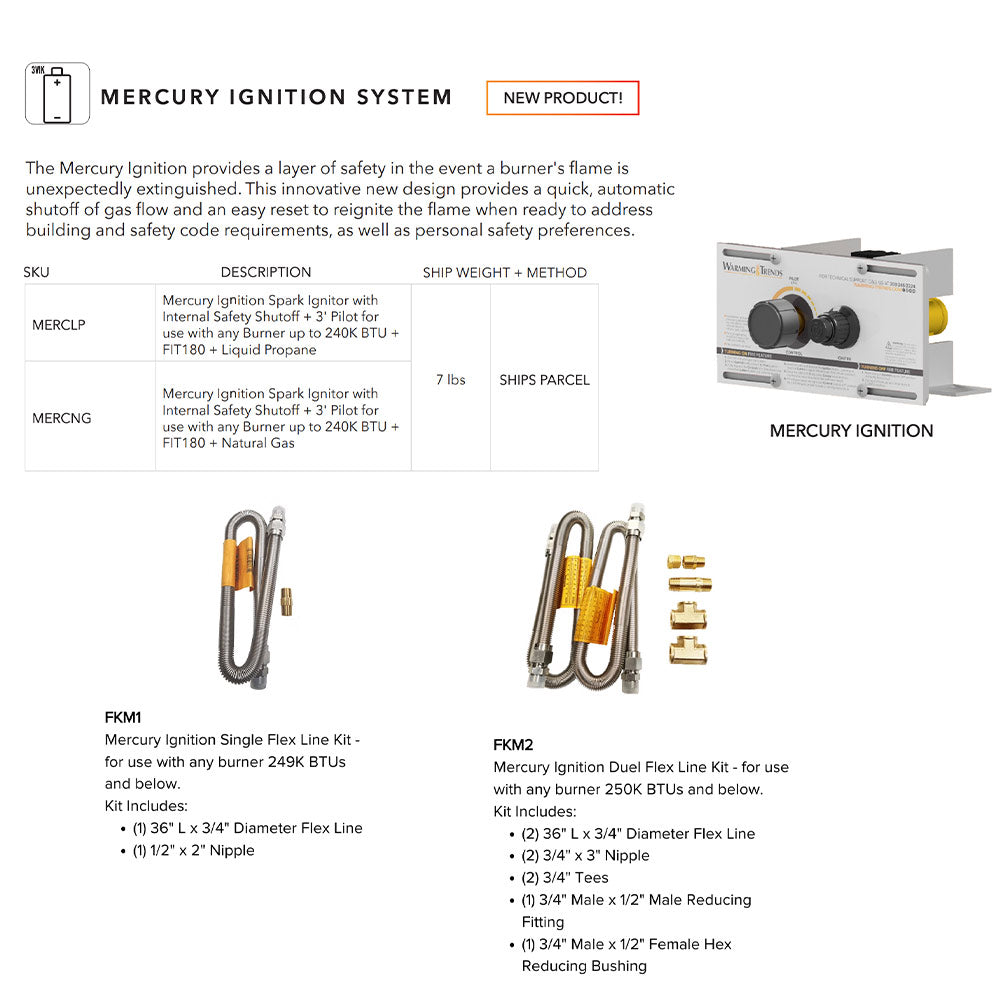

This Mercury Ignition system provides flame-sensing functionality without the need for electricity. It includes the ignition module, mounting bracket and pilot assembly, and can include an optional single or double flex line, to combine the necessary components to provide the burner system with an easy to use ignition. The battery spark ignition system allows you to conveniently control the burner kit with the simple push of a button.

Certifications	CSA/UL
Made In USA	Yes
Product Weight	19.0 lb
BTUs	84000

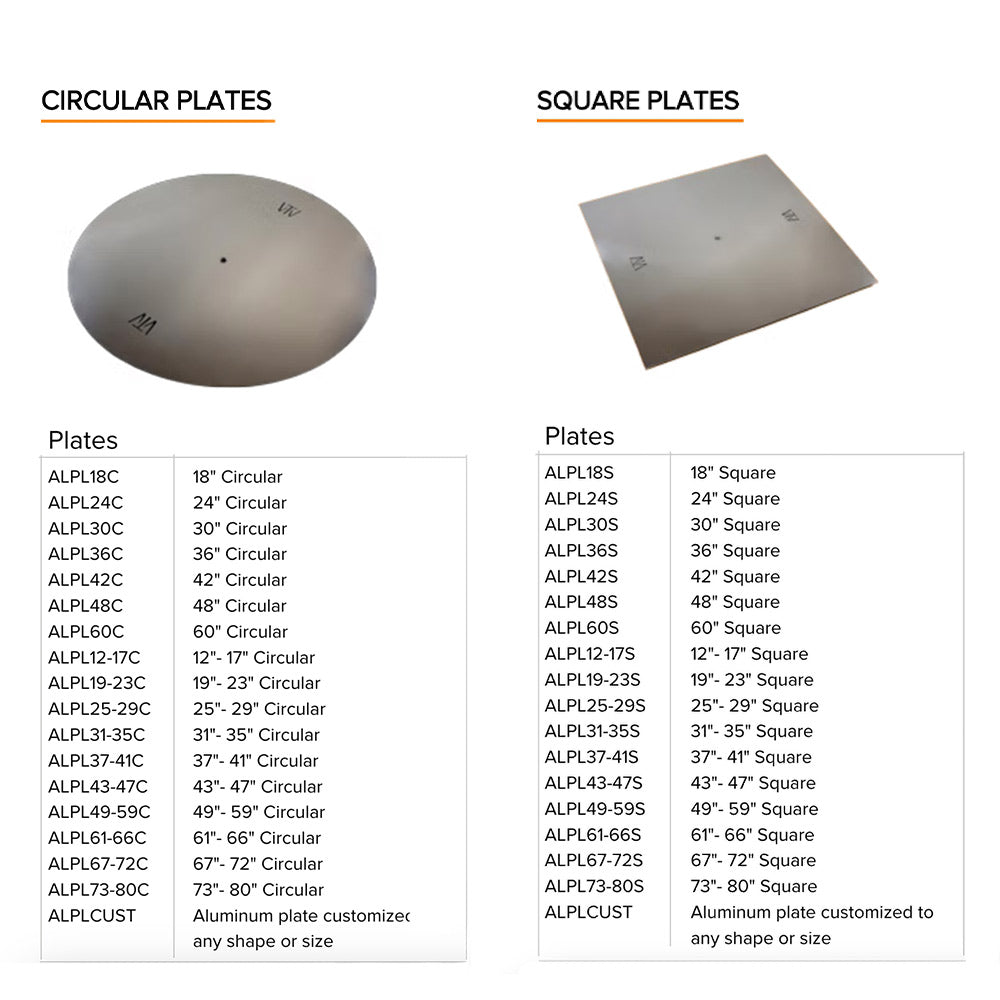

Burner Pan Size	18-Inches
Burner Pan Type	Flat

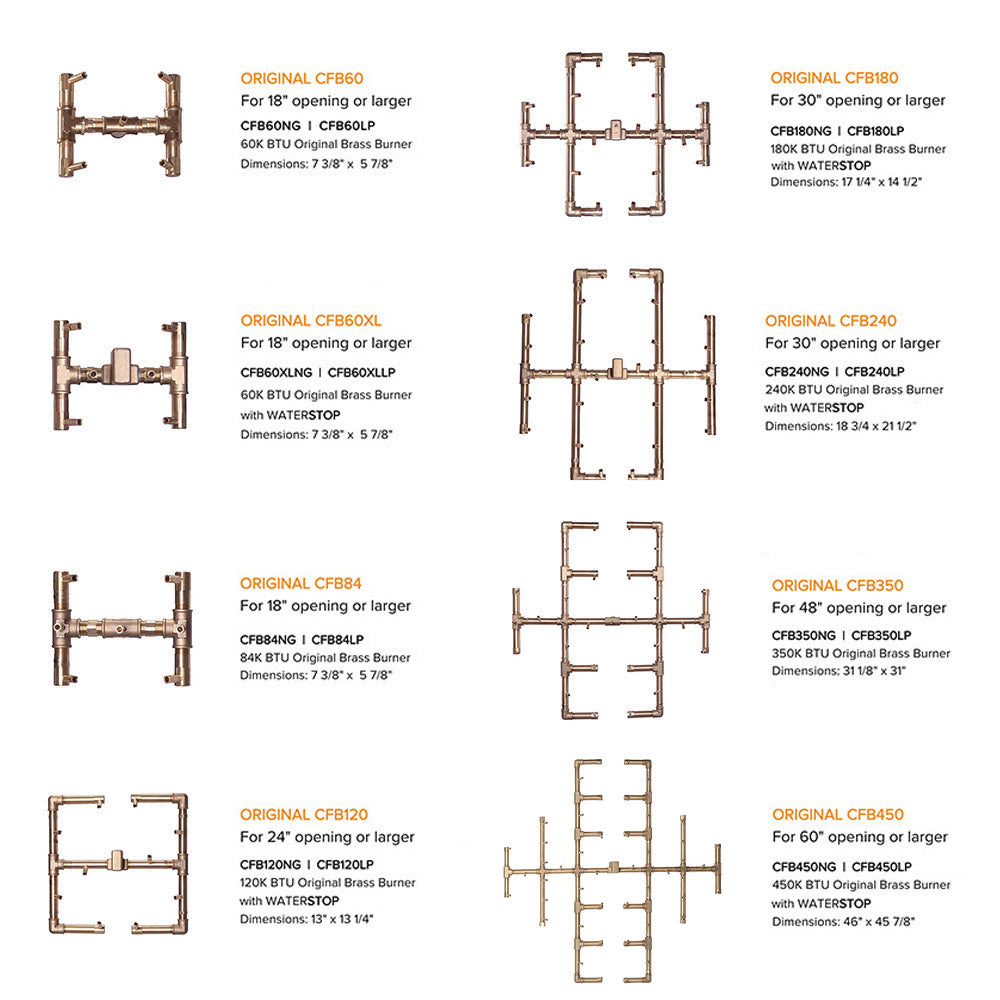

Burner Size	7.375x5.875-Inches
Ignition	Mercury Push Button Ignition
Material	Brass
Product Depth	18.0 in.
Product Height	4.25 in.
Product Width	18.0 in.
Shape	Square
Style	Original

Liquid error (blocks/_tabs line 193): invalid url input

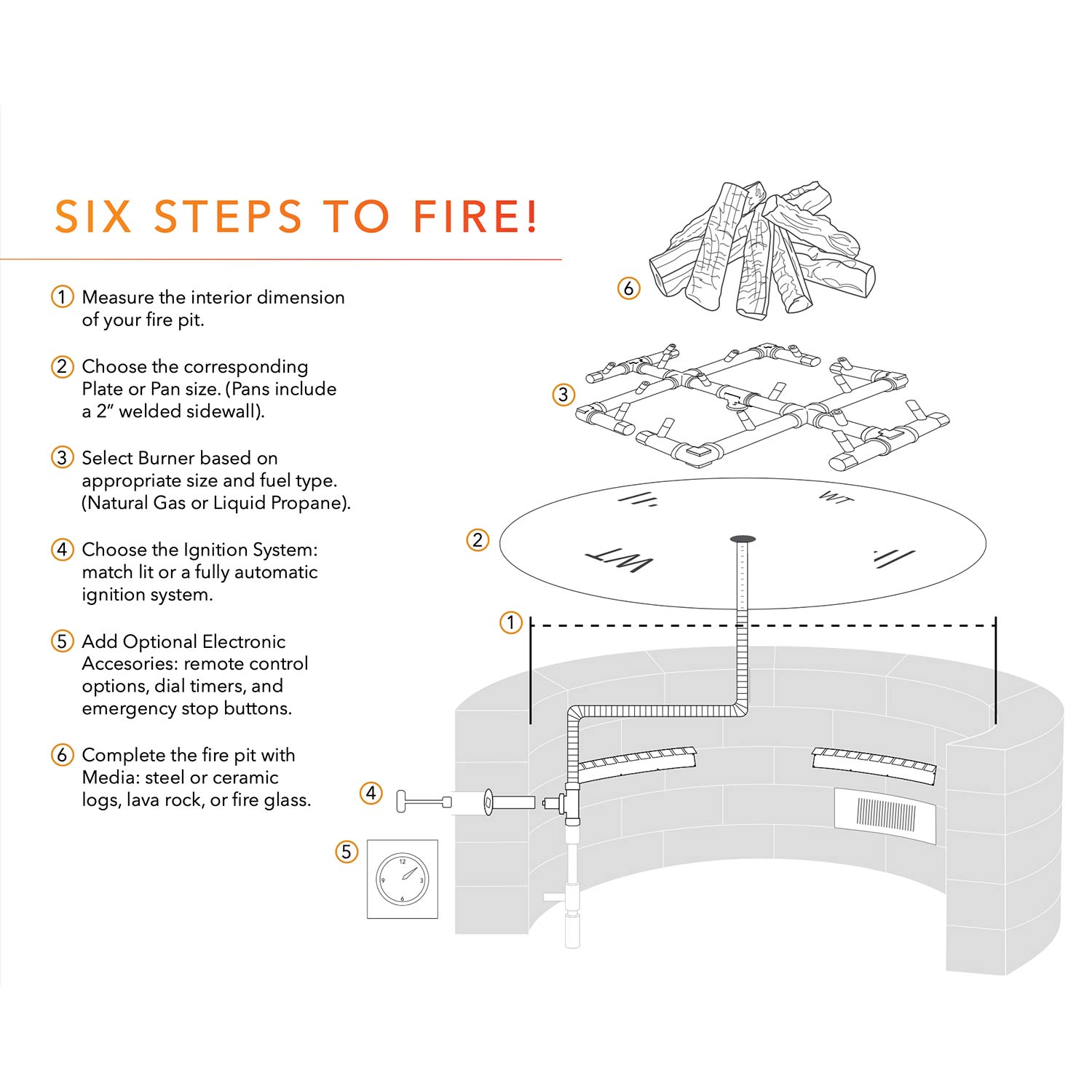

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply

Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both

For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column

For Propane*: Supply Pressure should be set between 8" - 11" Water Column

*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.

Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply

Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

Fire Pit Pan - Included with all of HPC's preassembled fire pit kits

A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key

An external shut off valve is not required with this kit, but may be an option for added safety

Ventilation - For all fire pit burners, adequate ventilation is required

The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow

Installation Collars - Are designed to simplify the installation of a fire pit pan

Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws

Fire Media - Is the final step to finishing a gas fire pit

Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
