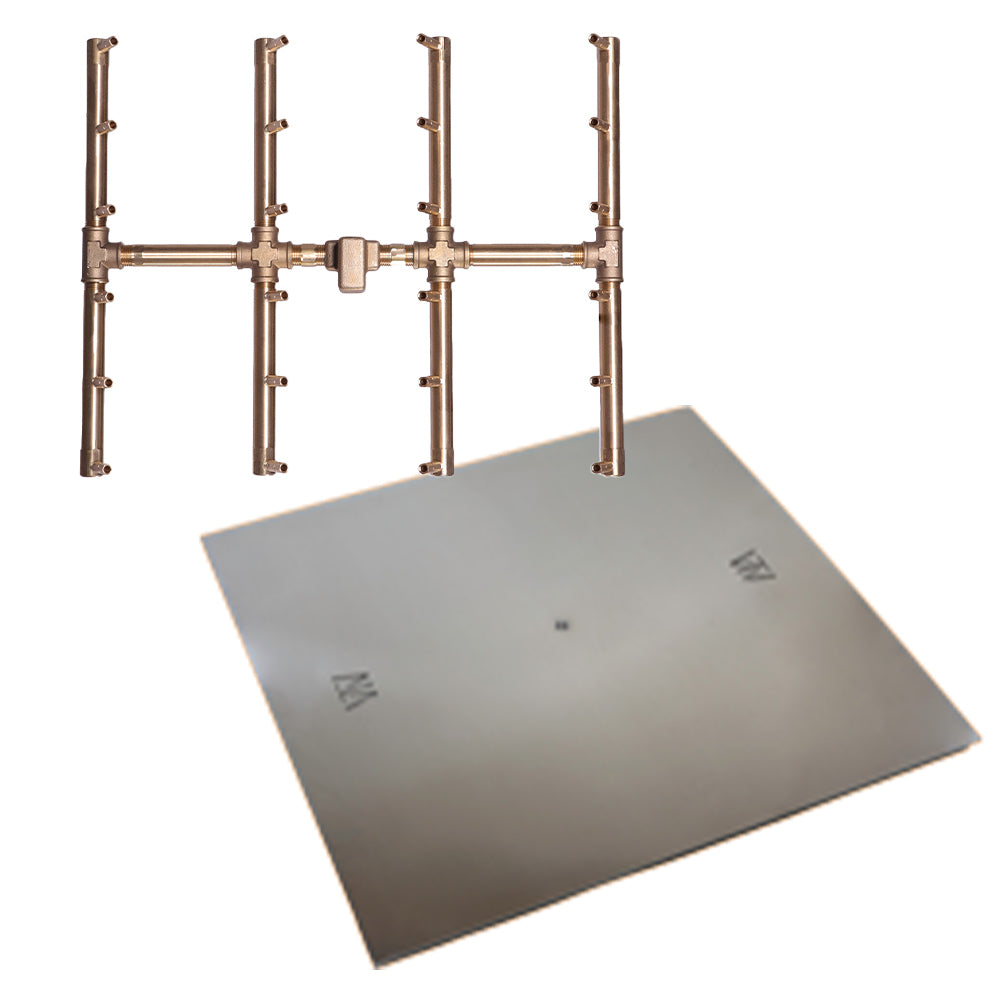

Crossfire by Warming Trends CFBST Match Light Square Tree-Style Brass Gas Fire Pit Burner

SKU: CFBST-Config

Burner Pan

Fuel Type:Natural Gas Natural Gas Propane

Size

Free Shipping!

Usually Ships in 7-20 Business Days

Price:

Starting at $628.00

view full details

Optional Accessories:

Product Features

Brass Burner Construction - Heavy duty brass burner construction ensures a corrosion resistant product

Crossfire™ Burner Design - Innovative burner design with fuel regulation creates a brighter, taller flame presence

Square Tree-Style Linear Burner Shape - Unique rectangular shape designed for rectangular style fire pits

Fuel Efficiency - Unique design creates a fuel efficient burner that consumes half the fuel of conventional burners

Full Lifetime Warranty - Superior quality brass is backed by Warming Trends' Full Lifetime Warranty

Product Description

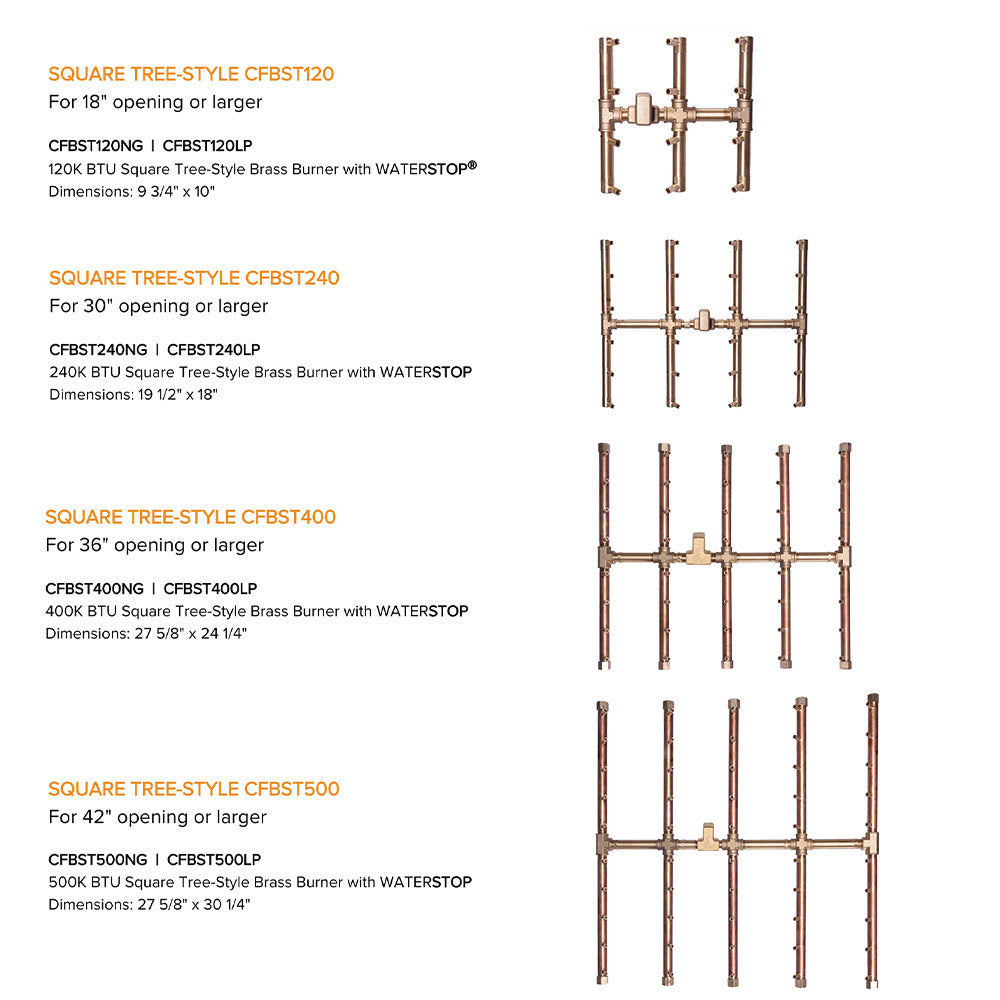

The Crossfire by Warming Trends CFBST Match Light Square Tree-Style Brass Gas Fire Pit Burner provides one of the most unique and innovative gas fire pit burner systems available. The heavy duty brass construction ensures an exceptionally high quality product that's designed for long lasting use outdoors while the unique Crossfire™ burner system features an innovative design that combines a specific air to gas mixture ratio to produce a taller, brighter flame. Intended for use with either propane or natural gas, these burners use close to half the fuel of conventional gas burners because of the unique regulation system. Available in a range of sizes and BTU ratings, the Crossfire™ square tree-style linear burner offers a corrosion resistant product backed by a full lifetime warranty. Each burner is equipped with the WaterStop fitting, designed to protect the gas line and electronics from water and debris to ensure lasting performance and durability.

Choose Product Options To See Full Specifications

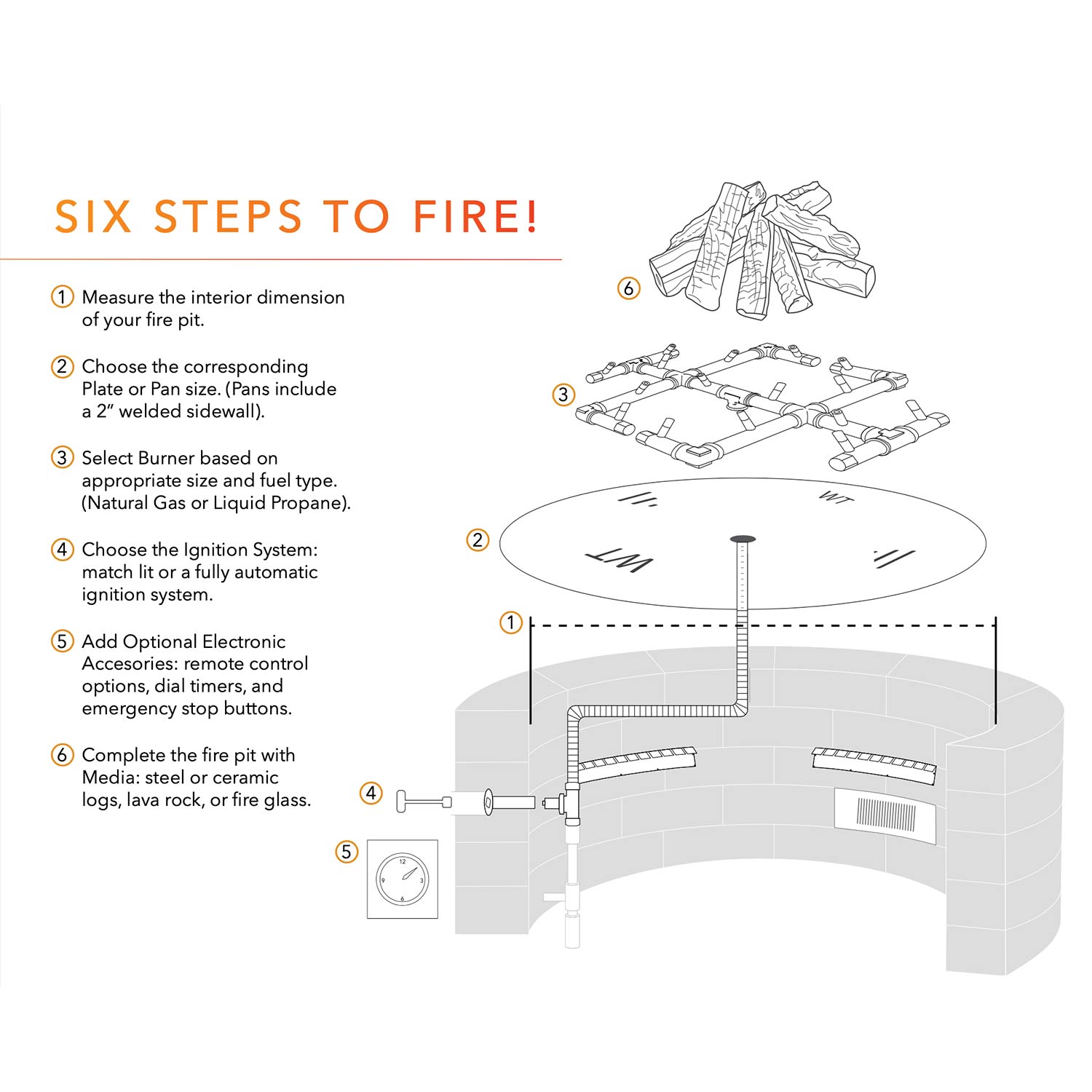

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic

Product Resources

Warming Trends

Warming Trends is an innovative fire pit products brand based in Colorado. Their unique CROSSFIRE burners produce bright, tall flames and are made of all brass. They offer easy customization options and a full lifetime warranty on their corrosion-resistant burners. Their products are among the best on the market and come with a higher price point but with a long lifespan that can lower the cost of ownership. Check out their products, including Fire Pit Accessories, Burner Kits, Components, and Ready-to-Finish Fire Pit Enclosures.

Shop All Warming Trends
