Crossfire by Warming Trends 54-Inch Round Ready-to-Finish Fire Pit Enclosure with Gas Burner Kit

SKU: FC54-Config

Fuel Type:Propane Natural Gas Propane

Ignition

Free Shipping!

Usually Ships in 7-20 Business Days

Price:

Starting at $3,984.00

view full details

Optional Accessories:

Product Features

Aluminum Frame Enclosure - Durable aluminum framed enclosure features concrete board walls ready to be finished

Brass Burner Construction - Heavy duty brass burner construction ensures a corrosion resistant product

Crossfire™ Burner Design - Innovative burner design with fuel regulation creates a brighter, taller flame presence

Includes - Crossfire burner, burner pan, 36-inch flex line, valve, flange & key, and ignition system

Full Lifetime Warranty - Superior quality brass is backed by Warming Trends' Full Lifetime Warranty

Product Description

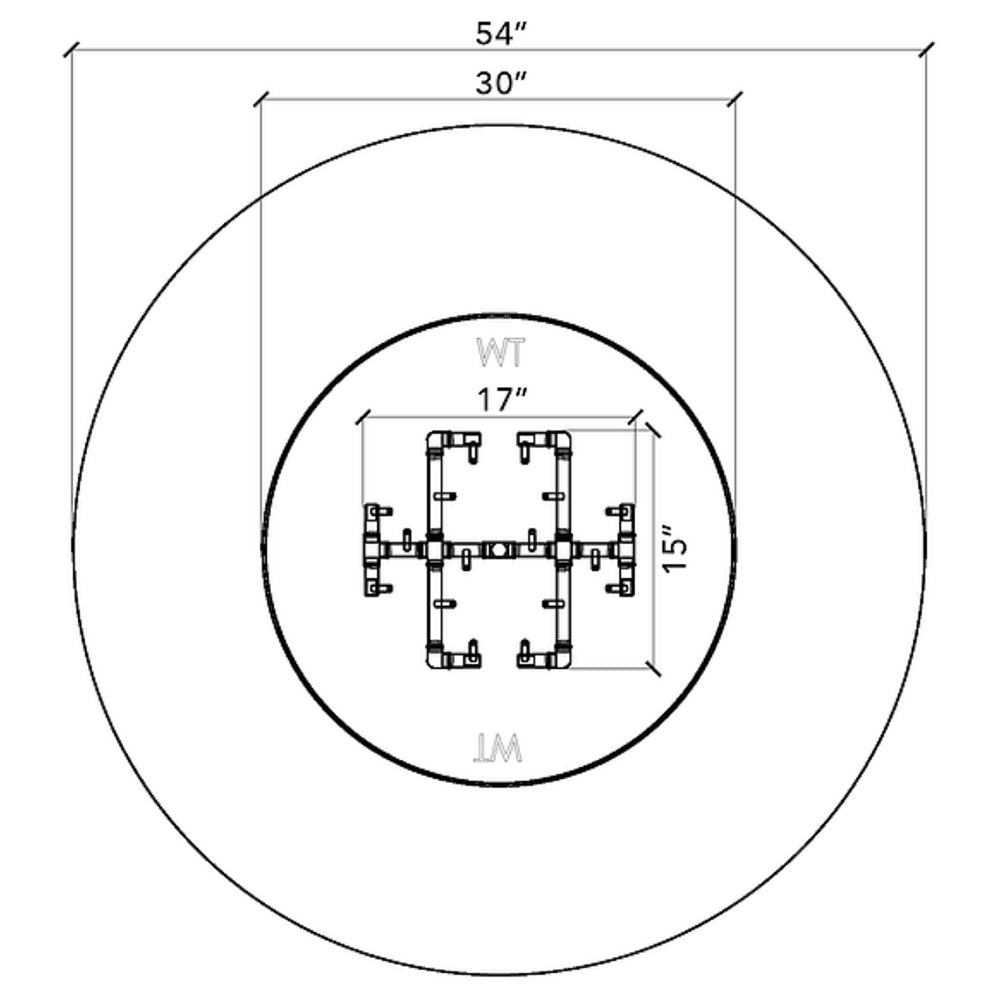

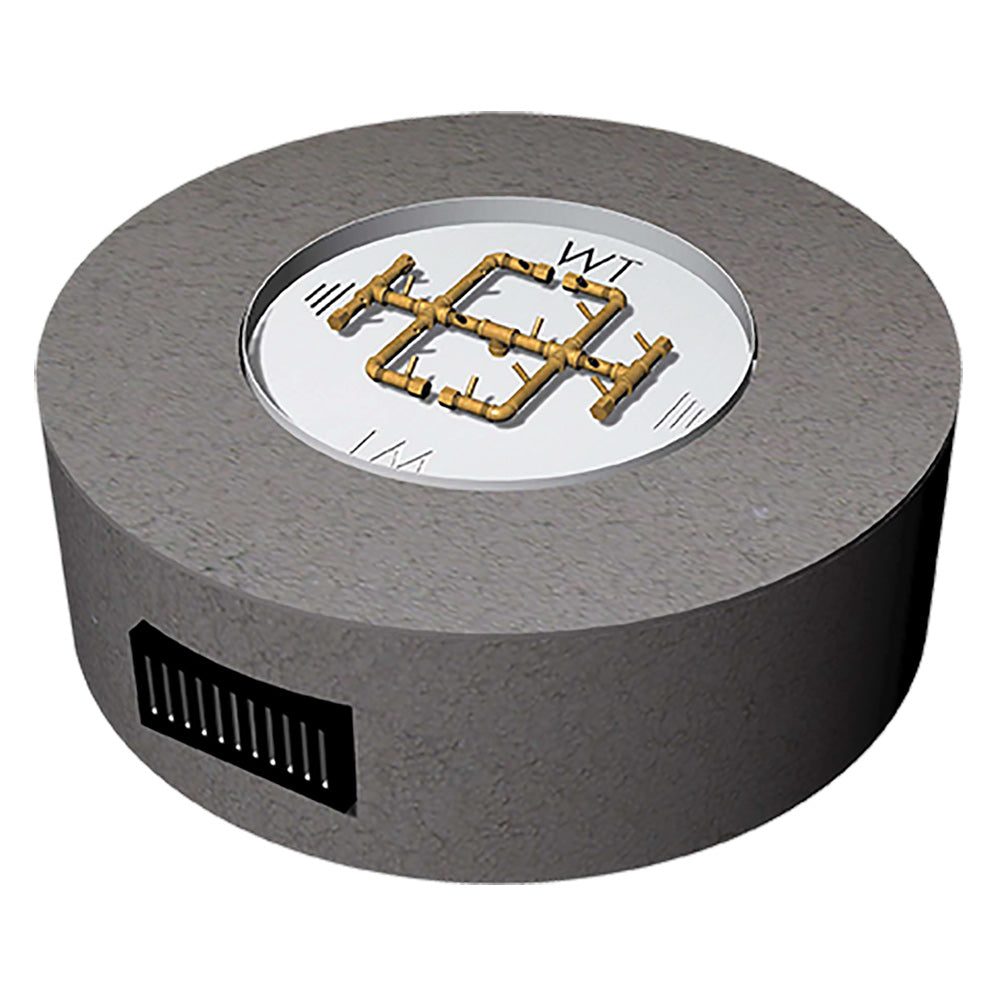

The Crossfire by Warming Trends 54-Inch Round Ready-to-Finish Fire Pit Enclosure with Gas Burner Kit provides a complete DIY gas fire pit kit that includes the necessary components to build and install a beautiful fire feature. The enclosure features a heavy duty aluminum frame completed with a concrete hardiboard surround to complete the basic structure and allow you to finish it with your own custom finish option. The 54" x 18" round enclosure includes a 30" x 2" round aluminum pan and 17" x 15" Crossfire burner rated at 180,000 BTU that can be specified for either propane or natural gas.

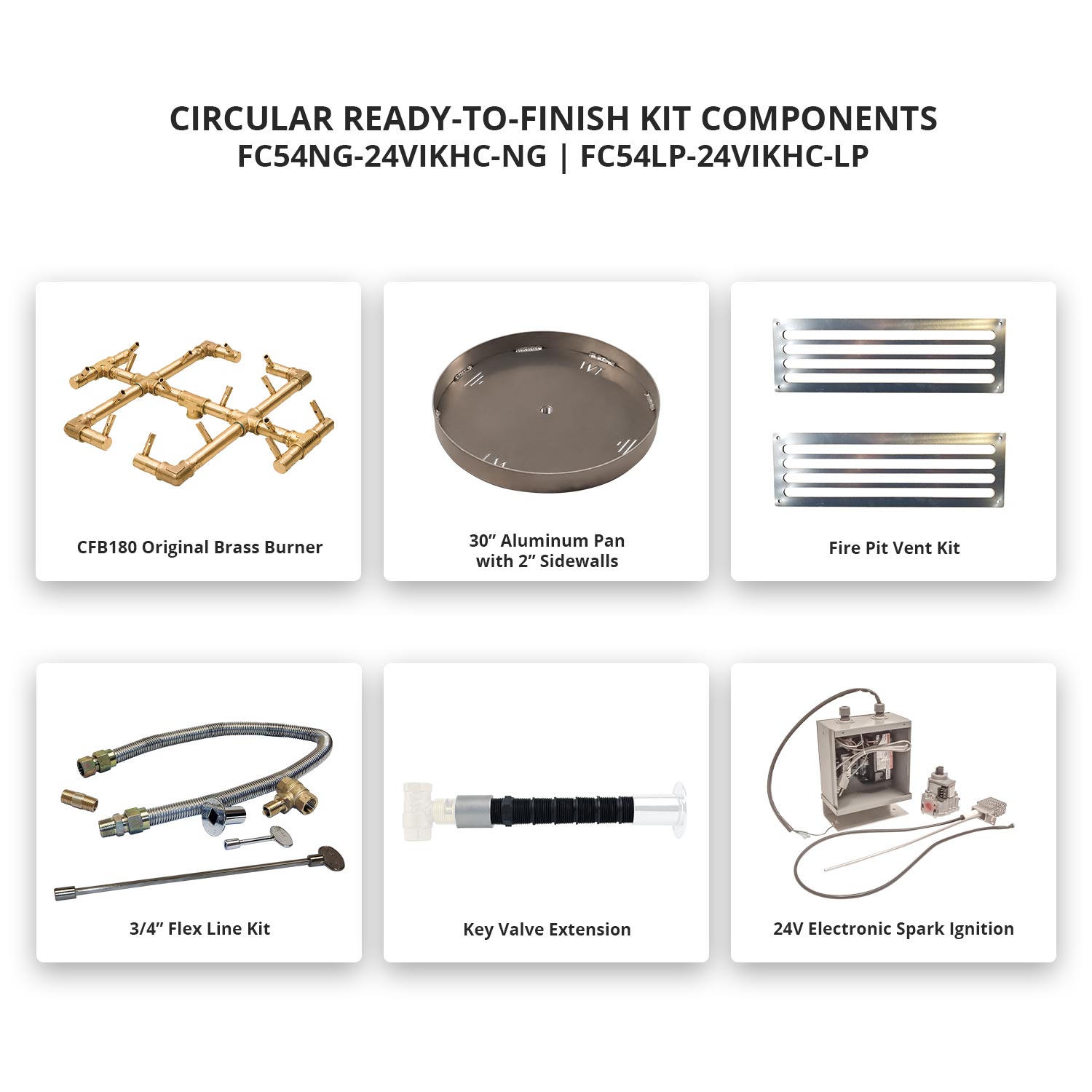

The included burner kit includes a 1/2-inch flex line that measures 36-inches long, a 1/4-turn ball valve with chrome plated decorative flange and 12-inch key, and a 30-inch round pan to combine the necessary components to install the burner system. Five ignition options are available in order to offer a wide variety of ignition types to start your fire pit. Each burner is equipped with the WaterStop fitting, designed to protect the gas line and electronics from water and debris to ensure lasting performance and durability.

Choose Product Options To See Full Specifications

What to Consider When Building a Gas Fire Pit

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply
Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
An external shut off valve is not required with this kit, but may be an option for added safety
Ventilation - For all fire pit burners, adequate ventilation is required
The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
Installation Collars - Are designed to simplify the installation of a fire pit pan
Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
Fire Media - Is the final step to finishing a gas fire pit
Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic

Product Resources

Warming Trends

Warming Trends is an innovative fire pit products brand based in Colorado. Their unique CROSSFIRE burners produce bright, tall flames and are made of all brass. They offer easy customization options and a full lifetime warranty on their corrosion-resistant burners. Their products are among the best on the market and come with a higher price point but with a long lifespan that can lower the cost of ownership. Check out their products, including Fire Pit Accessories, Burner Kits, Components, and Ready-to-Finish Fire Pit Enclosures.
