American Fire Glass Round Stainless Steel Fire Pit Burner

American Fire Glass

$79.49

American Fire Glass Round Stainless Steel Fire Pit Burner

SKU: SS-FR-Config

Fuel Type:Natural Gas Natural Gas Propane

Burner Size

Free Shipping!

Today or Next Business Day

Price:

$79.49

view full details

Optional Accessories:

Product Features

Stainless Steel Construction - Heavy duty 304 stainless steel guards against rusting and ensures a long lasting product

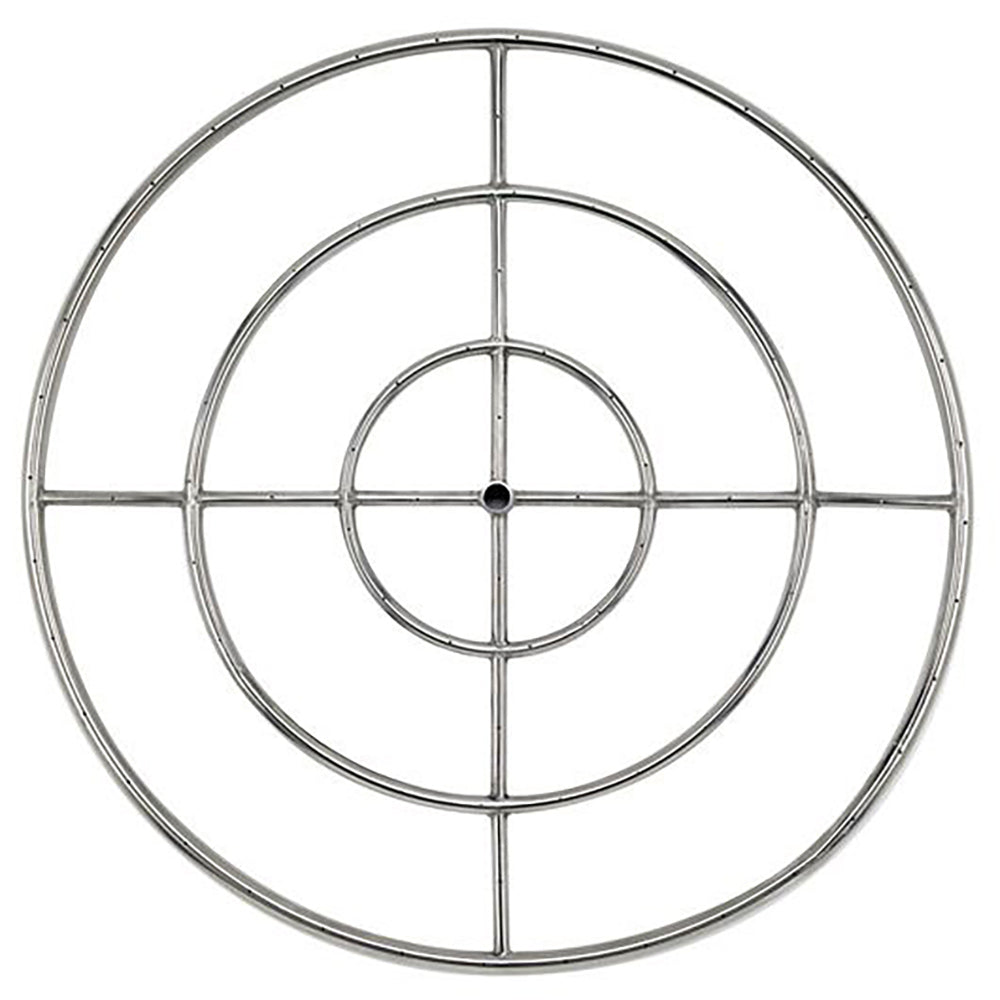

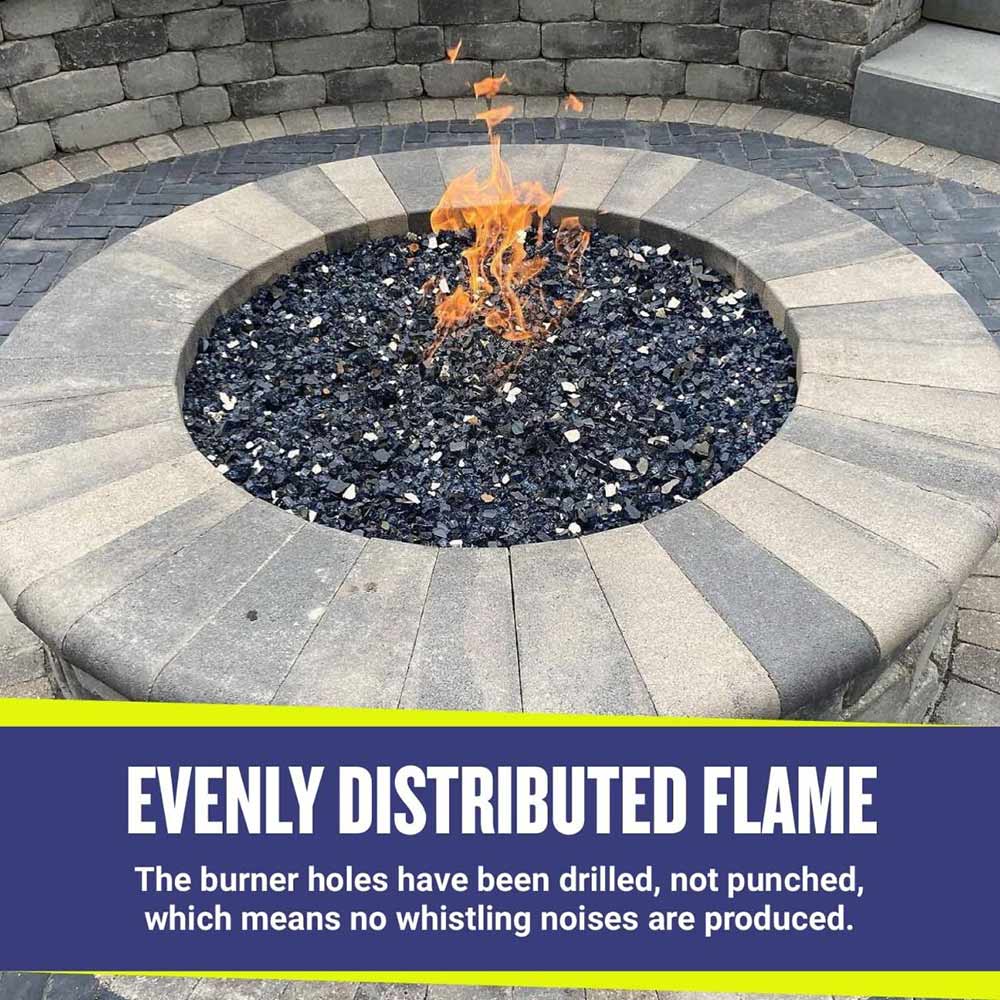

Cross Bar Design - Dual cross bars allow even heat distribution for a broad flame pattern

Concentric Rings - Each concentric ring's tubing increases in diameter to produce a realistic looking flame

Standard & High Capacity - Burner rings feature either a 1/2" or 3/4" female NPT gas inlet

Includes - Round burner and propane conversion kit (if propane option is selected); be sure to check out our fire pit kits to find this burner included with the necessary components for use

Product Description

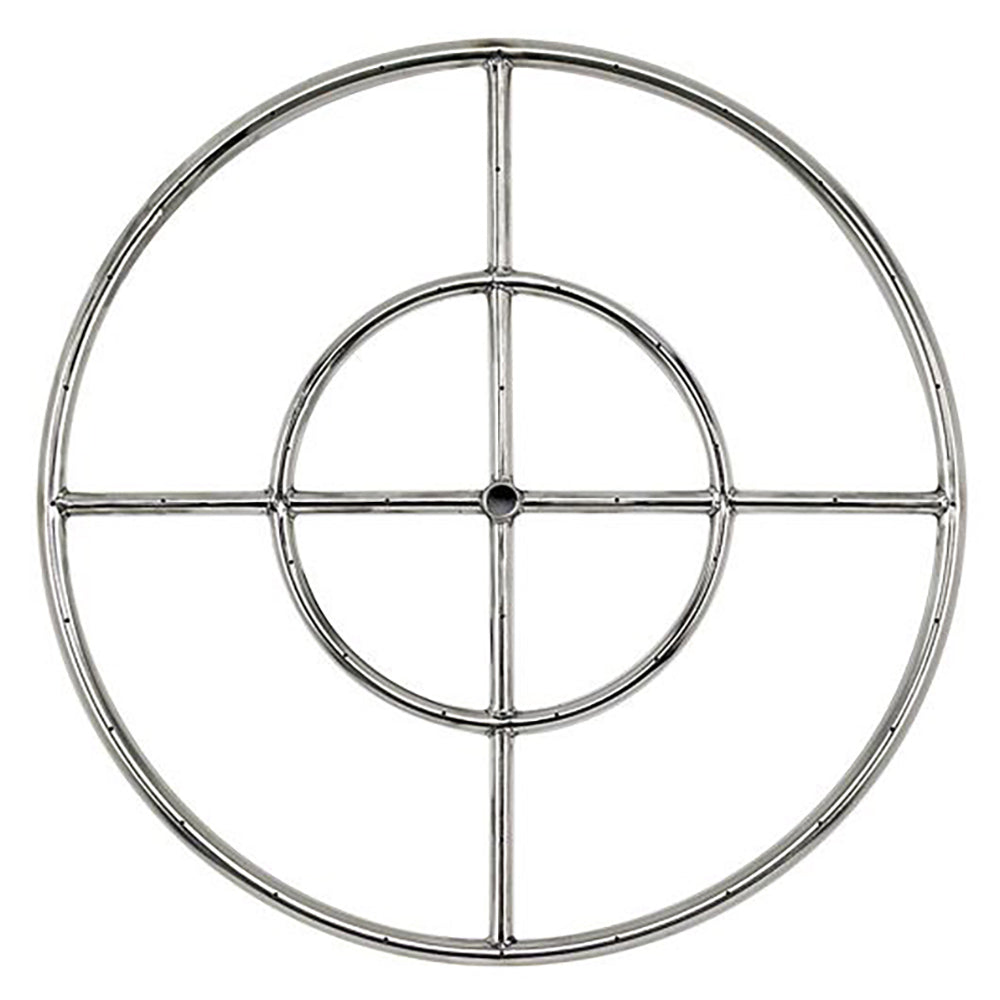

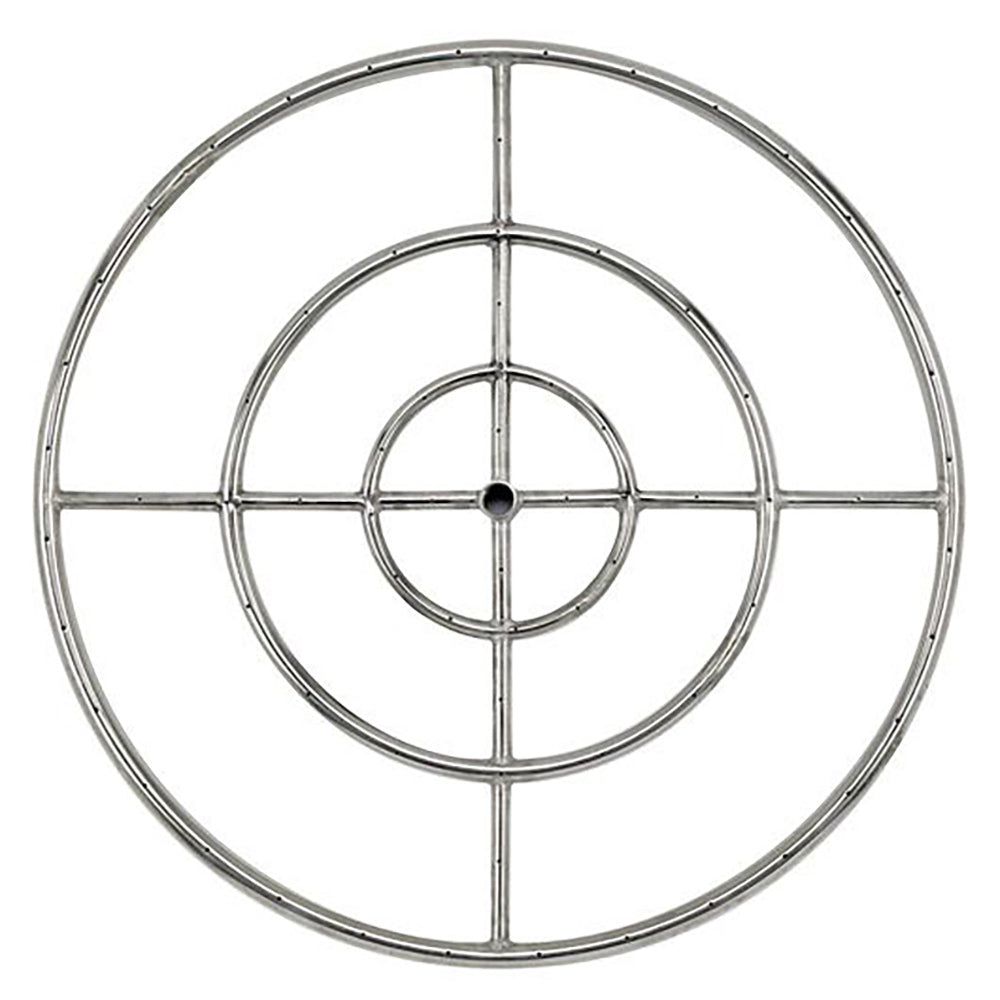

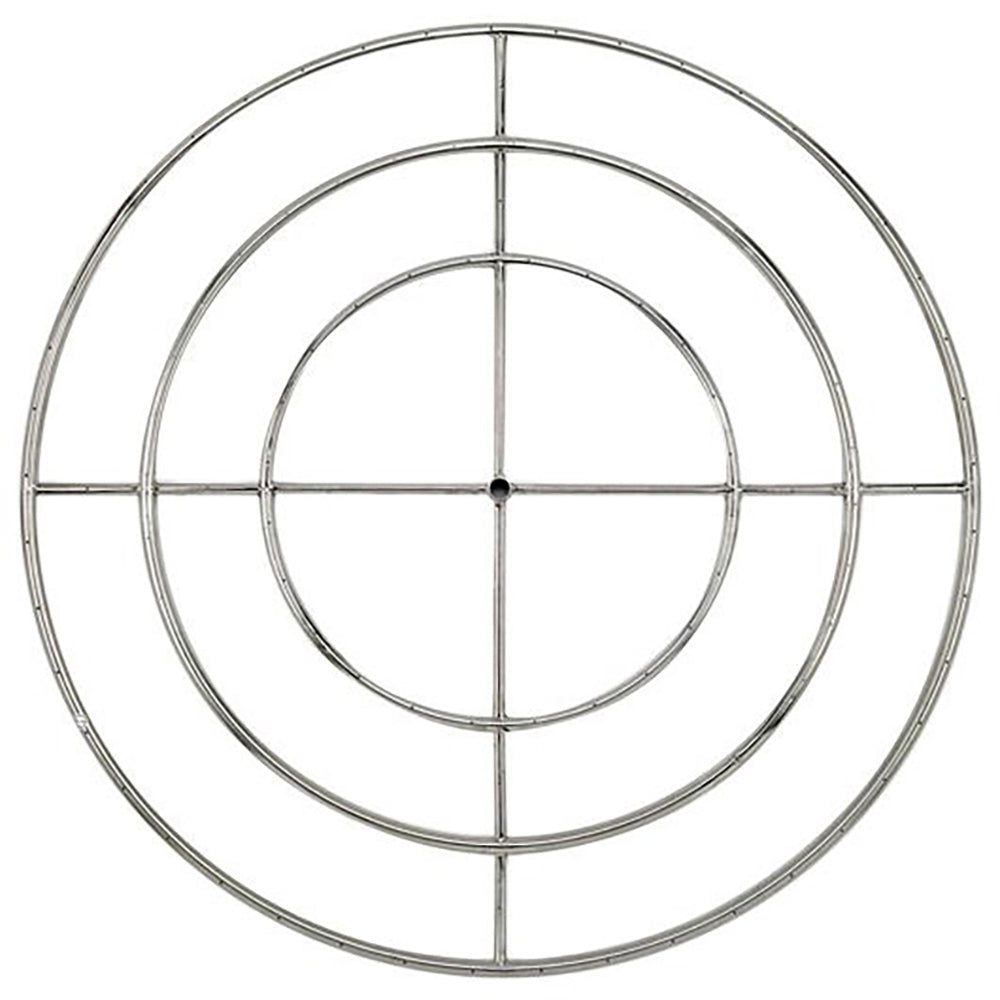

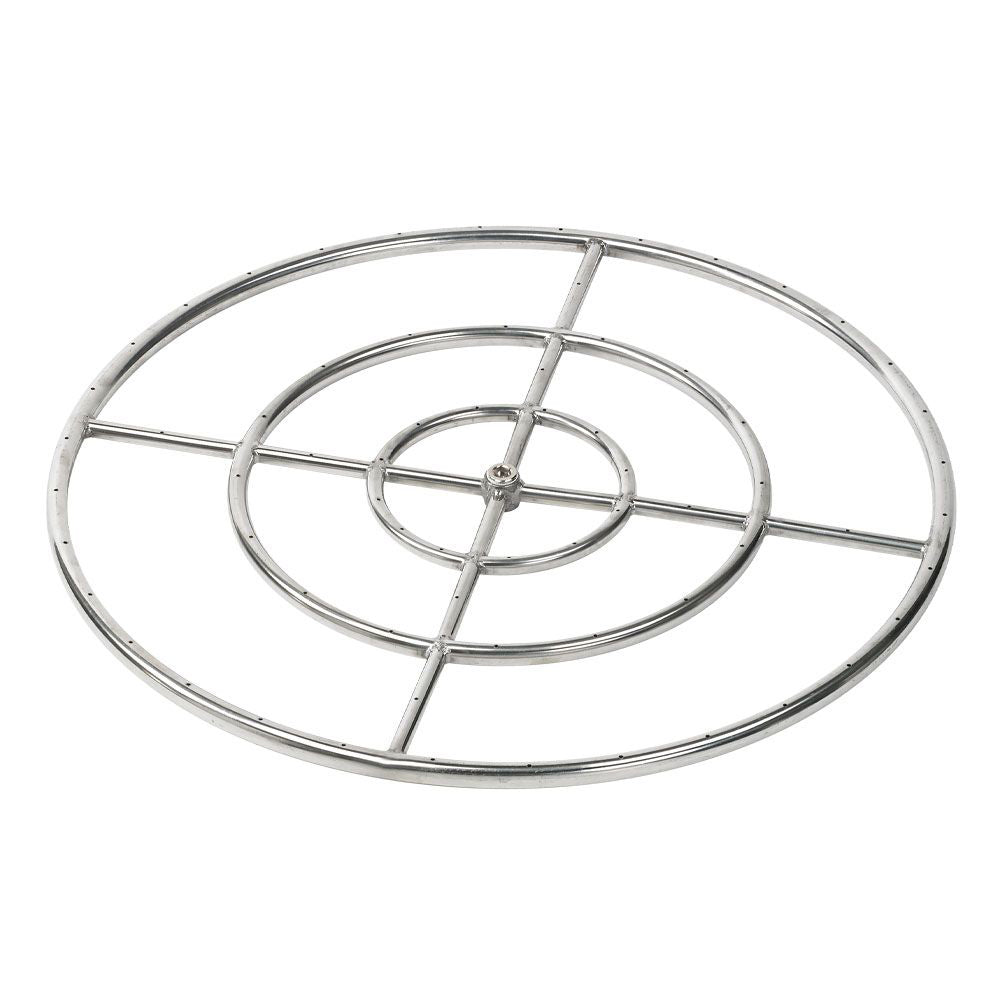

The American Fire Glass Round Stainless Steel Fire Pit Burner provides a high quality fire pit component necessary to complete your gas fire pit project. The round burner is manufactured by American Fire Glass and is constructed from high quality 304 stainless steel; each round shaped burner features a cross bar design for better flame distribution, a female gas inlet, and is neatly machine welded to produce a seamless and durable product.

This burner can be installed DIY with the help of a professional installer and can be used for either Natural Gas or Propane applications; for LP applications a propane conversion kit, which includes an air mixer, coupler & nipple, will be necessary. The burner should be at least 6" smaller than the inside dimensions of your enclosure and must be installed so the burner ports face upwards.

Choose Product Options To See Full Specifications

Liquid error (blocks/_tabs line 193): invalid url input

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply

Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both

For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column

For Propane*: Supply Pressure should be set between 8" - 11" Water Column

*Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.

Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply

Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

Fire Pit Pan - Included with all of HPC's preassembled fire pit kits

A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key

An external shut off valve is not required with this kit, but may be an option for added safety

Ventilation - For all fire pit burners, adequate ventilation is required

The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow

Installation Collars - Are designed to simplify the installation of a fire pit pan

Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws

Fire Media - Is the final step to finishing a gas fire pit

Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
